Overview:

Complete Computer Control - Assistive Technology

The SmartNav 4 AT is a total hands-free mouse solution. With built-in Dwell Clicking Software and an On-screen Keyboard, the AT package is used successfully by people with ALS, spinal cord injuries, muscular dystrophy, and other special needs.

The latest version of SmartNav continues to provide complete computer independence for the lowest price on the market.
SmartNav 4 Improved Features
  • Sleek aluminum case, with innovative mounting options including 1/4-20 thread mounts for standard tripods
  • Three times the resolution, resulting in more precise tracking
  • Improved light filtering
See our SmartNav 3 vs. SmartNav 4 comparison chart. What's in the box?
Complete Computer Control
SmartNav comes with everything you need to control your computer using only your head motion. Check out our testimonials page for reviews from satisfied users.

This package is the ideal solution for Assistive Technology applications as it provides everything needed to have complete control of your computer without the need for hands.

Natural Motion
SmartNav was designed to complement the natural head motion you already perform when looking around. Moving your head less than a quarter inch easily maneuvers the cursor across your entire screen.
Dwell Clicking Toolbar Dwell Clicking
You can left click, double click, drag, right click, and more - with our "dwell clicking toolbar" software application. Find out more about how, and why, to use it in our Dwell Clicking How-To.
Virtual Keyboard
You can type on your computer screen with SmartNav's virtual keyboard program.
Switch Input
You can plug a click switch or a footswitch directly into the back of the SmartNav. With the Y Breakout Cable (included), you can plug in separate click switches for left and right clicking.
System Requirements
500 MHz Processor
USB 1.1 or 2.0 port
CD-ROM drive

In The Box:
Shipping Box
SmartNav 4 box
Foam-padded retail display box with a color sleeve.

SmartNav 4 Device
The SmartNav 4 comes fully assembled. It connects to your computer via an included USB cable.
26 Reflective Dots
This clear plastic sheet includes twenty 1/3 inch (7.5 mm) dots and six 1/2" by 1/2" squares. These dots are made from 3m reflective material, with a reusable sticky backing.

Since the paper thin dots can stick to anything, you have the option of attaching a one to your glasses, hat, microphone boom or even your forehead.
USB Cable High Grade 6ft
Our high grade USB cables help you get the best performance. USB A to Mini-B connector.
Y Breakout Cable
The SmartNav AT package includes a Y Breakout Cable for connecting multiple switches to your SmartNav device. Two switches connected at the same time results in full mouse emulation.
SmartNav 4:AT
Quick Start Guide
A step-by-step introduction with diagrams explaining the setup and use of your SmartNav 4.

Software CD
This CD includes our software and an Adobe Acrobat .PDF version of the manual. Our software presents a multitude of controls for fine tuning your SmartNav experience. For the AT model, it also includes dwell-clicking software and an on-screen virtual keyboard. We often offer software improvements for download as functions are refined.
Electronic Manual
This document is included on the software CD in PDF format. We have tried to cover most installation situations, review of the software operations, how to set up custom profiles and troubleshooting. Please read it before installing the software.

How it Works?
SmartNav uses an infrared (IR) camera to track your head movements.

HOW DOES THE TECHNOLOGY WORK?

Infrared light is emitted from the LEDs and is reflected back to the imager by a corner cube reflector (3M safety material). This reflected light is imaged by a CMOS sensor and the video signal is passed to the preprocessing electronics. The video signal is thresholded against a reference level and all passing data is sent to the USB microcontroller to send to the PC for object tracking. In order to increase the signal to noise ratio an IR filter that passes only 800nm and above is placed between the imager lens and the outside world.
The SmartNav can image any IR source; typically this is reflective material or an active IR source such as an LED. A user may track many different objects by placing reflective dots or LEDs on the object. The SmartNav has a 45 degree field of view and anything being tracked must stay in that field of view.

Software

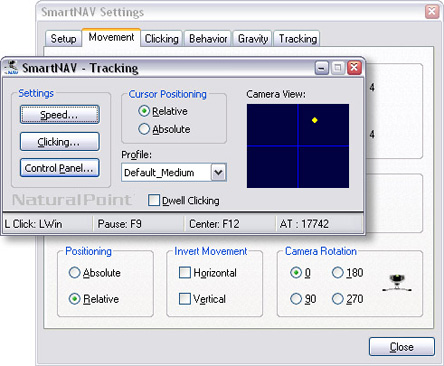

Below is an actual size picture of our latest software. Key options are presented on this one main screen, though many more are available . For more information on the software's many features, please peruse section 4 of our online manual.
You can always download the latest version of our software online, in our support downloads section.
software screenshot
EXCLUSIVE SOFTWARE FEATURES:
    Cursor Control and Clicking
    • Absolute Cursor Positioning Mode for moving the cursor like a digitizer instead of a relative mouse
    • Separate X and Y Scaling, for dual screen monitors or users with limited head movement in one direction
    • Smoothing Control, for dampening unwanted head movements
    • Key Activated, to have the cursor only move when you hold down a key
    • Pause, to simply pause the system
    • Hotkeys for clicking, pausing and centering the cursor
    User Adjustability
    • Profiles, for different users and for different programs (to fit the needs of many different users sharing the same computer)
    • Pause while typing, automatically stops cursor movement while typing, just like taking your hands off a mouse
    • Gravity, aids in cursor positioning over buttons in Windows, fully customizable
    • Mouse Cooperative Mode, for having a regular mouse connected at the same time
    • Camera Display Window, for user feedback on dot location (see what smartNAV sees)
    • Inverting, for unique camera placement
    • Precision Mode, for use with HotKeys or Switch Input, for extremely precise cursor movement.
