All stock codes associated to this product
KVR800D2N6/1G, 740617128482

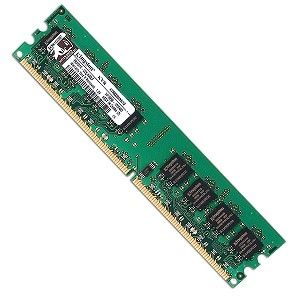

KVR800D2N6/1G
1GB 128M x 64-Bit DDR2-800
CL6 240-Pin DIMM
DESCRIPTION:
This document describes ValueRAM's 128M x 64-bit 1GB (1024MB) DDR2-800 CL6
SDRAM (Synchronous DRAM) memory module. The components on this module include
sixteen 64M x 8-bit DDR2-800 SDRAM in FBGA packages. This 240-pin DIMM uses gold
contact fingers and requires +1.8V. The electrical and mechanical specifications are as
follows:
FEATURES:
Clock Cycle Time (tCK) CL=6 2.5ns (min.) / 8ns (max.)
Row Cycle Time (tRC) 60ns (min.)
Refresh to Active/Refresh Command Time (tRFC) 105ns
Row Active Time (tRAS) 45ns (min.) / 70,000ns (max.)
Single Power Supply of +1.8V (+/- .1V)
Power 1.800 W (operating)
UL Rating 94 V - 0
