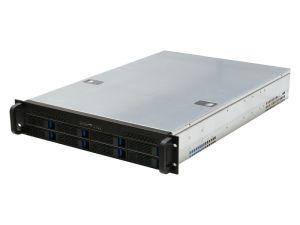

All stock codes associated to this product
RPC2208, RPC-2208
Features:
* 8x hot-swappable SATA/SAS drive bays
* Two internal SFF-8087 Mini SAS connectors support up to eight 3.5" or 2.5" SATA or b SAS hard disk drives;
* 1 x slim CD-ROM bay,1 x FDD bay, 8 x 3.5 " hot-swappable drive bays , 1 x 2.5" drive bay;
* Hot-swappable HDD tray with special designed power-off and lock mechanism.
* Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6") motherboard
* Screwless top cover
* 4 x 80mm ball bearing middle fans wall for better ventilation
* Front accessible USB port
* Smooth border prevent lacerating your skin
Specifications:
Drive Bay:
8 x hot-swappable SATA/SAS drive bays, 1 x slim CD-ROM bay, 1 x FDD bay, 1 x 2.5" drive bay
Cooling Fan:
4 x 80mm middle fans
Switch:
Power ON/OFF x 1, System reset x 1
Indicator:
Power ON/OFF x 1, HDD x 1, NETWORK X 2
Connector:
One front accessible USB port, two internal SFF-8087 Mini SAS connectors, four 4-pin molex power connectors.
Motherboard Compatibility:
Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6")
Power Supply Options:
Standard 2U ATX power supply
Dimensions ( W x D x H ):
19" x 25.5" x 3.5" (483mm x 650mm x 88mm)
Packing:
Double boxes
Weight:
12.5 kg/27.6 lb (NET) 14 kg/30.9 lb (GROSS)
Environment Temperature:
0/55 C, 32/131 F (Operating) -20/60 C, -4/140 F (Non-Operating)
Relative Humidity:
5% to 95%,non-condensing
Vibration ( 5-500 Hz ):
1 Grms (Operating), 2 G (Non-Operating)
Shock:
10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
