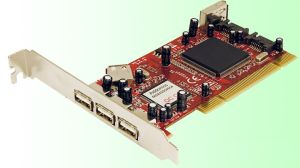

Addonics AD5U2SA SATA/USB RAID Controller - 2xSATA, 3xExternal USB, 2xInternal USB
  • RAID 0,1

IMG 1 of 2
No Longer Available
Part Number:
127702
(?) Brand:
Addonics Web Site
Manuf No:
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
8/10/2009
Details Files Images & Video
All stock codes associated to this product
, AD5U2SA
This Combo controller is an economical and cost effective solution for adding the new high speed SATA and additional USB ports to any Desktop system. The controller is designed to fit into any PCI slot in standard height or low profile PC. With the built-in RAID firmware utility, the 2 hard drives connecting to the SATA ports can also be configured for RAID 1, 0 or as 2 individual drives.

Product Features

    • Add two SATA and 5 USB 2.0/1.1 ports (3 External + 2 Internal) via single 32-bit PCI BUS slot
    • High SATA data throughput, up to 150 Mbytes/sec (1.5 Gbps)
    • USB ports can handle high-speed (480 Mbps), full-speed (12 Mbps), and low-speed (1.5 Mbps) transaction
    • 2 SATA ports can be configured as non-RAID, RAID 0 and RAID 1 via the built-in firmware utility
    • SATA port supports Hot Swap
    • Supports ATAPI storage devices
    • Fits any PCI slot in standard height or low profile PC
    • SATA port works under Windows 98/ME, NT 4.0, 2000, 2003 Server, XP, Vista, Linux kernel 2.4+
      USB port works under Windows 98SE, Me, 2000, 2003 Server, XP, Vista, Linux kernel 2.4+

Specifications

SATA port

    • Dual high speed SATA interface ports, each supporting 1st generation Serial ATA data rates (1.5Gb/s)
    • Fully compliant with Serial ATA 1.5G specifications
    • Independent 256-byte FIFOs (32 bit * 64 deep) per Serial ATA channel for host reads and writes
    • Built-in RAID firmware for support of RAID 1 and RAID 0
    • Supports Spread Spectrum in receiver
    • Features Serial ATA to PCI interrupt masking
    • Features Watch Dog Timer for fault resiliency
    • SATA Chipset : Silicon Image 3112
    • Compatible with Windows 98/ME, NT(SP4), 2000, 2003 server, XP, Vista, Linux kernel 2.4+
    • Support both IDE and ATAPI storage devices

USB port

    • 3 External USB Ports and 2 Internal USB Ports
    • Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps)
    • Compliant with Open Host Controller Interface Specification for USB Rev 1.0a
    • Compliant with Enhanced Host Controller Interface Specification for USB Rev 0.95
    • All USB ports can handle high-speed (480 Mbps), full-speed (12 Mbps), and low-speed (1.5 Mbps) transaction
    • USB Chipset : NEC
    • Temperature: Operating 0 to 70 degree C.
    • Storage: -25 to 90 degree C.
    • Humidity: Operating 20% to 80%
    • Non Operating 15% to 90%
    • Compatible with Windows 98/ME, 2000, 2003 Server, XP, Vista, Linux kernel 2.4+
  • Dimension (W x D x H) - 120 mm x 18 mm x 65 mm.
  • Weight: 2 oz.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Addonics) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
