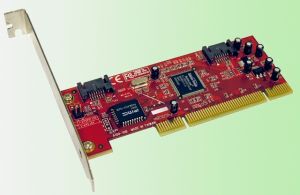

Addonics ADSA2 SATA RAID Controller - 2-Port SATA-II, Low Profile - PCI
  • RAID 0,1

IMG 1 of 2
No Longer Available
Part Number:
127719
(?) Brand:
Addonics Web Site
Manuf No:
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
8/10/2009
Details Files Images & Video
All stock codes associated to this product
, ADSA2
Looking to get more speed out of your hard drive, hot swap capability and better air flow in the over crowded interior of your desktop computer? Addonics Serial ATA line of product is your answer. The Addonics Serial ATA PCI host controller is the most cost effective solution for adding Serial ATA capability to your Desktop computer.

Product Features
  • 2 Serial ATA ports
  • High data throughput, up to 150 Mbytes/sec (1,500 Mbits/sec)
  • Work with any Serial ATA drive
  • Compatible with ATA33/66/100/133 hard drives and ATAPI devices using the optional Addonics IDE to Serial ATA converter
  • Built-in RAID 0 and RAID 1 support
  • Can be configured to operate as a non-RAID or RAID controller
  • Support large hard drives of 137 GB or greater
  • Silicon Image chip set SiI 3512
  • Upgradeable firmware
  • Fits standard Desktop case and low profile systems
  • Hot swap - device can be removed and added without system shut down or restart
  • simple plug and play
  • compatible with Windows NT 4.0, 98SE, Me, 2000 and XP, Vista, Linux

Specifications

  • 2 Serial ATA interface ports
  • Fully compliant with Serial ATA 1.0 specification
  • Independent 256-byte FIFOs (32 bit*64 deep) per Serial ATA channel for host reads and writes
  • Compliant with 32-bit, 33/66 MHz PCI 2.2 host interface
  • Integrated PCI DMA engines
  • Build-in RAID 0 and RAID 1 support
  • Upgradable firmware
  • Temperature: Operating 0 to 70 degree C.
  • Storage: -25 to 90 degree C.
  • Humidity: Operating 20% to 80%
  • Non Operating 15% to 90%
  • Windows NT 4.0, 98SE, Me, 2000 and XP, Vista, Linux
  • Dimension (W x D x H) - 125 mm x 19 mm x 63 mm.
  • 1 year warranty

System Requirements

  • PC/AT or Compatible System
  • One free PCI slot
  • Pentium or greater
  • Minimum 32 MB RAM
  • 10 MB minimum free hard disk space
  • One of the following operating systems: Windows NT 4.0, 98SE, Me, 2000 and XP, Vista, Linux

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Addonics) web site.
