Addonics CompactFlash Adapter - ZIF Interface Connector
  • Replace iPod Storage Drive with CF Card

IMG 1 of 2
No Longer Available
Part Number:
128761
(?) Brand:
Addonics Web Site
Manuf No:
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
22/10/2009
Details Files Images & Video
All stock codes associated to this product
, ADZIFCF

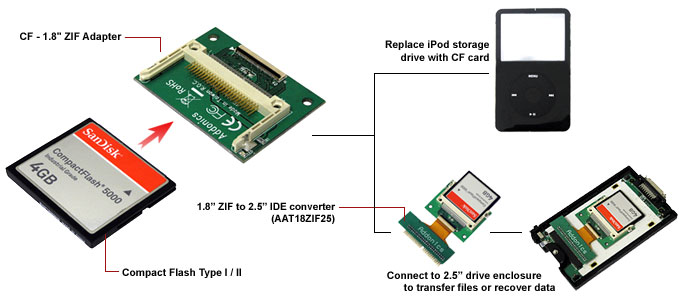

Replace the ZIF hard drive contained inside your Apple iPOD or many portable devices with the fast, reliable, and high speed Compact Flash supporting UDMA4 for up to 40MB/s transfer rate.

Key Features

  • Install Compact Flash into a device which uses a 1.8" hard drive with ZIF connector
  • Can be used like a 2.5" hard drive using the optional ZIF to 2.5" IDE connector converter
  • Compatible with Apple iPOD
  • Can be installed into laptops which use 1.8" ZIF connector
  • Current Compact Flash speeds support up to 40MB/s with UDMA4
  • Supports PIO, DMA, UDMA depending on type of Compact Flash installed
  • OS independent
  • Fully RoHS compliant

Specifications

Interface:
 1.8" ZIF
Supported media Type I/II CF, Micro Drive
Maximum Read / Write Speed: Depends on the media
OS Support: Any OS that supports IDE storage
Dimensions: (W x D x H) - 54 x 7 x 58 mm with CF card attached
Power: Power from ZIF interface
Operating Temperature 0 C to + 75 C
Operating Humidity: 5% - 95% (non condensing)
Storage Temperature: -40 C to + 85 C
Storage Humidity: 5% - 95%
Warranty: One Year

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Addonics) web site.
