Addonics Dual Slots CompactFlash to SATAII Adapter - Creating a Large Capacity Solid State Drive
  • Supports RAID 0,1,JBOD

IMG 1 of 2
No Longer Available
Part Number:
128763
(?) Brand:
Addonics Web Site
Manuf No:
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
22/10/2009
Details Files Images & Video
All stock codes associated to this product
, AD2SAHDCF

This new Dual CF - SATA HDD adapter is Addonics latest solution for creating a large capacity SSD (solid state drive) with high performance SATA and the ubiquitous USB connection. Designed to accommodate up to 2 CF media that can be configured as RAID 1, RAID 0 or combined as one large CF, this Dual CF - SATA HDD adapter can be used as a direct replacement for a 2.5" SATA hard drive. As a result, any equipment, such as Notebook computer, that uses a 2.5" SATA hard drive can be easily converted to use the low power and shock resistant CF media, just like a SATA solid state drive (SSD). Once installed, the CF appears as an ordinary SATA hard drive to any OS and can be configured as a boot device.

Key Features

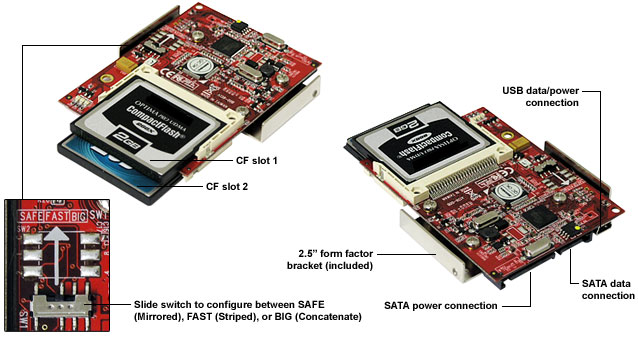

  • Enable 2 Compact Flash (CFI/II) or Micro Drive to be used like ordinary 2.5" SATA hard drive
  • Supports 3 Hardware RAID modes: Raid 0 (FAST, Striping), Raid 1 (SAFE, Mirroring), Concatenation (BIG Drive)
  • Hardware RAID support and easy RAID configuration using onboard slide switch
  • Support both SATA 2.0 (3.0Gbps) and USB 2.0 (480Mbps) interface
  • Connects to any SATA port or USB port

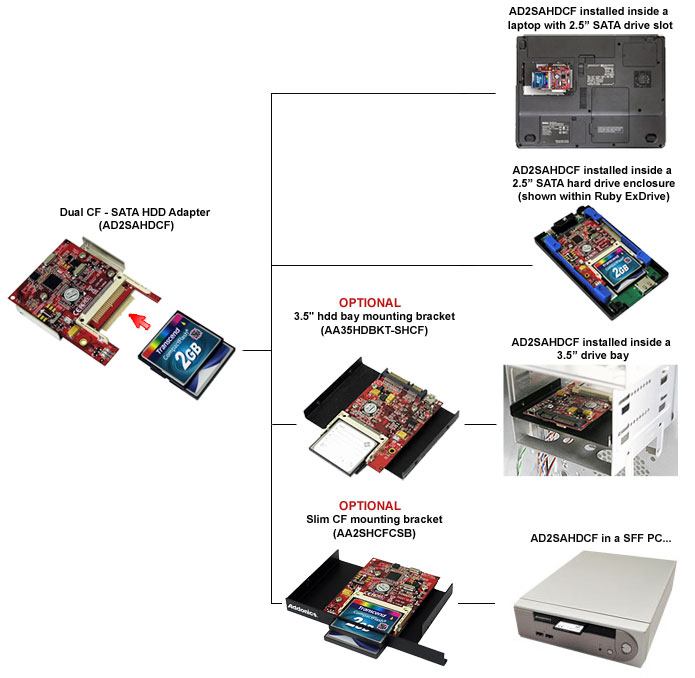

  • Mounts directly onto notebook 2.5" SATA connector
  • Optional brackets for installing into 3.5" drive bay or slim CD drive bay
  • CF Card can be the primary bootable device containing the OS and applications.
  • Transparent to the operating system and does not require any drivers
  • Includes 2.5 hard drive bracket to use like a standard 2.5" SATA hard drive
  • Includes software for monitoring the status and activities of CF cards through USB or SATA (PM Compatible) Host
  • Alarm LED, USB drive activity LED, and SATA drive activity LED
  • Compatible with DOS, Windows 3.1, NT4 (SATA only), 98SE, Me, 2000, XP, Vista
  • Fully RoHS compliant

Specifications

  • Interface: SATA 2.0 (3.0Gbps) and USB 2.0 (480Mbps)
  • 1.5Gbps and 3.0Gbps PHY support with auto-negotiation
  • Supports UDMA, DMA, and PIO mode (only on flash media card with such features).
  • SATA & USB Hot-swappable support when connected to a compatible controller
  • Mandatory SMART commands available
  • Supported media: Type I/II CF and Micro Drive (on slot 1 only)
  • Dimensions: (W x D x H) - 70 x 9 x 100 mm with 2 CF cards attached
  • Power: +5V from PC power supply or USB power source
  • Maximum Current: 300 mA at 5V
  • Operating Temperature: 0 C to + 75 C
  • Operating Humidity: 5% - 95% (non condensing)
  • Storage Temperature: -40 C to + 85 C
  • Storage Humidity: 5% - 95%
  • Warranty: One Year
