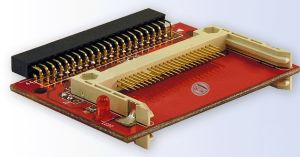

Addonics ADEB44IDE2CF Dual Slot CompactFlash Adapter - IDE Interface

IMG 1 of 2
No Longer Available
Part Number:
128789
(?) Brand:
Addonics Web Site
Manuf No:
ADEB44IDE2CF
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
22/10/2009
Details Files Images & Video
All stock codes associated to this product
ADEB44IDE2CF

The Addonics Embedded 44-pin IDE-CF adapter, with choice of single slot or dual slots, is an ideal solution for industrial PC, embedded system or applications that require a simple and economical bootable CF slot. Designed to plug directly onto the 44-pin IDE port of any processor board, the small form factor of this adapter can be easily mounted inside any system. The Embedded Dual CF-IDE Adapter contains a second CF slot for the slave position of the IDE channel, allowing increased storage capacity with the same low power consumption and solid state benefits of the CF card standard.

Embedded 44-pin IDE-CF Adapter

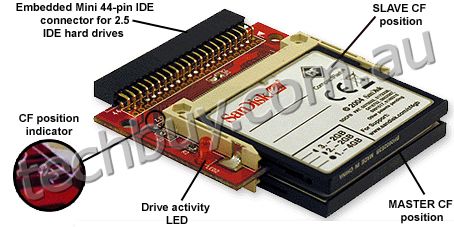

(model: ADEB44IDECF) 		Embedded 44-pin Dual CF-IDE Adapter
(model: ADEB44IDE2CF)



Key Features

  • Compatible with CFI/II and Micro Drive *
  • 44-pin IDE interface
  • Choice of single slot or dual slot
  • Support master or slave setting
  • Bootable
  • Compatible** with DOS, Windows 3.1, NT4, 98SE, Me, 2000, XP, Vista, Mac or Linux
  • Supports DMA and Ultra DMA modes (only on flash media card with such features).

* CF Type II or MicroDrive can only be inserted into the CF1 position of the adapter.
** Media must be in the device during boot up. Media is not hot swappable

Specifications

Interface:
 mini 44-pin IDE
Supported media Compact Flash Type I/II, MicroDrive (see MD limitations FAQ)
Maximum Read / Write Speed: Depends on the media
OS Support: DOS, Windows 3.1, NT, 98SE, Me, 2000, XP, Vista, Mac OS 8.6 or higher, Linux
Dimensions:
  • (W x D x H) - 56 x 9 x 61 mm for 44-pin IDE with CF card attached
  • (W x D x H) - 55 x 9 x 62 mm for Dual 44-pin IDE with CF card attached
Power: +5V from PC power supply
Operating Temperature 0 C to + 75 C
Operating Humidity: 5% - 95% (non condensing)
Storage Temperature: -40 C to + 85 C
Storage Humidity: 5% - 90%
Warranty: One Year
