All stock codes associated to this product
WMN1000A
Ultra-slim Wall Mount for 32" - 40" LED and Plasma TVs (2009 and up models)
WMN1000A
Overview

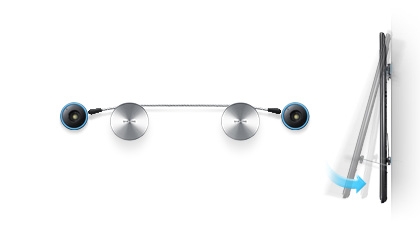

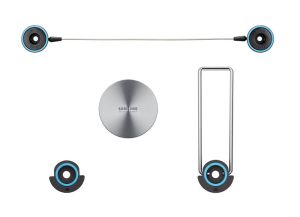

Ultra Slim Wall Mount
Features
As simple as hanging a picture frame - Compatible with 32~40 LED (09 and 10 Models)
Specifications
Type: TV Mount
Features:
Expand your interior design possibilities with Samsungs innovative wall mounting system. Because of the TVs slim and lightweight design, Samsung was able to develop a wall mounting system thats as simple as hanging a picture frame. The low-profile mount is simple to install with minimal surface damage to the wall. The mounts small size requires less materials which also means it takes less energy to produce it. The size of the packaging has been reduced as well. So take advantage of this unique feature and showcase your TV like its a work of art.
- Quick and easy installation
- Minimal surface damage
- Low profile (less than 2cm from the wall)
- Requires less materials so is more eco-friendly
Makes installing - easier than ever.
Samsung Ultra Slim Wall Mounts are not only easy to install, it takes less than 20 minutes. With Samsungs innovative wall mounting system, mounting TV is not hard work anymore.
Get close with the ultra slim wall mount.
Mounting your ultra-slim Samsung TV is as easy as hanging a picture. An ultra-vivid, high definition picture, that is. In less than twenty minutes, the job is done. With minimum impact to your walls - just two small holes for a 40 or larger TV, and just one for the 26 and 37 sets - which is vital if youre a tenant. And because the mount is designed to hang your TV within 2cm of the wall, it blends in with your decor and makes the most of its slimness.
Specifications:
Specifications:
VESA Standard
Feature
| Distance From The Wall |
Less than 20 mm |
|
| Number of Hole on The Wall |
1 |
|
| Swivel |
No |
|
| Tilt |
No |
|
| Jack Connection |
Yes |
|
| Safe Working Load |
20 kg (44 lb) |
|
Dimension
| Wire Length |
200 mm |
|
| WallMount size (Diameter x Depth) |
12 x 0.7 mm |
|

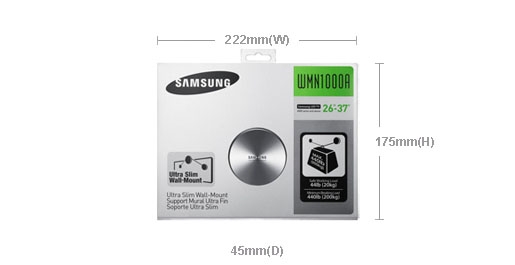

| Package size(WXHXD) |
222 x 175 x 45 mm |
|
Weight
| Net Weight |
0.4 kg |
|
| Gross Weight |
0.5 kg |
|
Bundle Accessory
| User Manual |
No |
|
| Quick Guide |
Yes |
|
| Wire |
1 |
|
| Prop for Tilt |
Yes |
|
Supported Models
