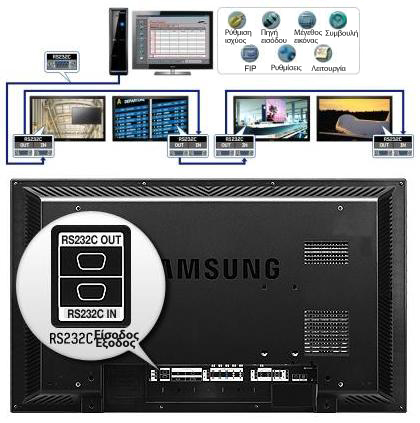

RS232C, a standard of serial communication, is used for the communication between PC and displays. Therefore, A Multiple Display Control (MDC), helping various displays to be easily and simultaneously operated on PC, is possible with RS232C function.
A Cool Way To Ensure Longevity.
Enjoy continuous, reliable operation thanks to a built-in fan control. Housed inside of the LFD, the fan guarantees you can count on it for years to come without worrying about it overheating. You can even control the fan with an easy-to-use on screen display.
A Screen That Wont Shatter Your Digital Dreams.
When a monitor is displayed in public areas, things can happen. Thats why our LFD offers a specially-designed, optional protection glass. Scratch resistant and shatter-proof, it shields the panels surface from any damage so you can use it for years to come.
No Separate PCs. No Jumbled Wires.
Control multiple monitors without having to install and run wires to a separate PC. This Samsung LFD features a powerful built-in PC. Its optional multi-network solutionpurchased separatelyis easy to configure through a LAN, easy to manage through server-side software, and cost-effective to run. And with optimized CPU, RAM and storage, youll have everything you need to get your message across effectively.
Save Money, Save Space With Built-In Speakers.
Maximize your impact with a great picture and crisp audio. Your message will be heard loud and clear with built-in speakers. Youll save money when you eliminate the cost of purchasing separate speakers, and youll save valuable space as well.
An Innovative Solution With Easy Access.
Samsungs network management software features two types: a Wan/LAN-based for local access and a web-based software accessible anywhere. MagicInfo lets you access your server and LFDs everywhere in the world. This optimized Samsung software solution lets you manage multiple Samsung LFDs remotely. Best yet, uploading, creating, monitoring and controlling content is more convenient and less time-consuming.
Specifications
|
|
| Panel |
Diagonal Size |
23" |
| Type |
C-PVA |
| Resolution |
1920 x 1080 |
| Pixel Pitch(mm) |
0.2566 (H) x 0.2566 (V) |
| Active Display Area(mm) |
509.76 (H) x 286.74 (V) |
| Brightness(Typ.) |
300cd/m |
| Contrast Ratio (Typical) |
3000:1 |
| Viewing Angle(H/V) |
178 / 178 |
| Response Time(G-to-G) |
8ms |
| Display Colours |
16.7M |
| Colour Gamut |
72% |
| Display |
Dynamic C/R |
5000:1 |
| H-Scanning Frequency |
30kHz ~ 81kHz |
| V-Scanning Frequency |
56Hz ~ 85Hz |
| Maximum Pixel Frequency |
164MHz |
| Resolution |
1920 x 1080 |
| Connectivity |
Input |
Audio |
Stereo mini Jack |
| RGB |
Analog D-SUB |
| Video |
HDMI |
| Output |
Audio |
Stereo mini Jack |
| Power Out |
N/A |
| RGB |
N/A |
| Video |
N/A |
| External Control |
RS232C (in) |
| Signal Input |
Video Signal |
N/A |
| Sync. Signal |
N/A |
| Connector |
N/A |
| Power |
Type |
Internal |
| Power Supply |
AC 100 ~ 240V ~ (+/- 10 %), 50 / 60Hz |
| Stand By Power (DPMS) |
N/A |
| Power Consumption |
Off Mode |
Less than 1W |
| On Mode |
120W (max) / 70W (typ) |
| Sleep Mode |
Less than 5W |
| Mechanical Spec |
VESA Mount |
100 x 100mm |
| Protection Glass |
N/A |
| Stand Type |
N/A |
| Media Player Option Type |
Internal |
| Dimension (mm) |
Package |
640.0 x 418.0 x 192.0 |
| Set |
557.5 x 339.0 x 73.9 |
| Weight (kg) |
Package |
10kg |
| Set |
8.35kg |
| Feature |
Key |
Built In Network for Signage |
| Plug & Play |
N/A |
| Special |
Embedded Touch (capacitance), Anti Retention, Temperature Sensor, Built-In Fan Control, RS232C MDC, Built in Speaker (3W + 3W), Plug and Play (DDC2B, DDC/CI), Pivot Display, Button Lock, Windows XP embedded, Magicinfo Pro |
| USB powered hub option |
N/A |
| Mac compatibility |
N/A |
| Multimedia Speakers |
N/A |
| Wall-Mount |
N/A |
| TCO |
N/A |
| Cabinet Colour |
N/A |
| Accessories |
N/A |
| Special |
Embedded Touch (capacitance), Anti Retention, Temperature Sensor, Built-In Fan Control, RS232C MDC, Built in Speaker (3W + 3W), Plug and Play (DDC2B, DDC/CI), Pivot Display, Button Lock, Windows XP embedded, Magicinfo Pro |
| Operation |
Operating Temperature |
10C ~ 40C |
| Humidity |
10 ~ 80% |
| Certification |
Safety |
UL (USA): UL 60950-1CSA (Canada): CSA C22.2 No. 60950-1 TUV (Germany): EN60950-1NEMKO (Norway): EN60950-1 KC (Korea): K60950-1 CCC (China): GB 4943-2001PSB (Singapore): IEC60950-1GOST (Russia): IEC60950-1, EN55022SIQ (Slovenia): IEC60950-1, EN55022PCBC (Poland): IEC60590-1, EN55022NOM (Mexico): NOM-019-SCFI-1993IRAM (Argentina): IEC60950-1SASO (Saudi Arabia): IEC60950-1 |
| EMC |
FCC (USA) FCC Part 15, Subpart B class BCE (Europe) EN55022, EN55024VCCI (Japan) V-3 (CISPR22) KCC (Korea): KN22, KN24BSMI (Taiwan): CNS13438 (CISPR22) C-Tick (Australia): AS/NZS3548 (CISPR22) CCC(China): GB 9254-2008, GB 17625.1-2003 |
| Environment |
N/A |
| Accessories |
Included |
Quick Setup Guide, Warranty Card,Application CD, D-Sub cable, Power Cord,Remote Controller, Batteries |
| Optional |
Mount |
N/A |
| Specialty |
N/A |
| Stand |
N/A |
| Media Player |
CPU |
Athlon x2 Dual-Core 4450e (2.3GHz) |
| N/B |
AMD RS780 |
| S/B |
AMD SB700 |
| GPU |
AMD RS780 (IGP) |
| FDM/HDD |
HDD 40GB |
| Memory |
DDR2 1GB |
| Ethernet |
Marvell 88E8055 Gigabit LAN |
| Connectivity |
Others |
LAN RJ45 |
| Output |
D-SUB (RGB OUT) |
| USB |
4EA |
