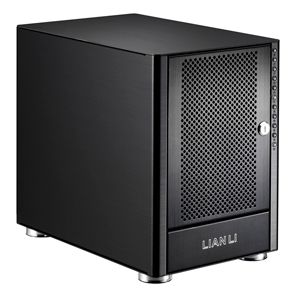

EX-50B | Lian Li EX-50 Storage Tower - Black

Model: EX-50

e-SATA interface Support Port Multiplier
Support Hardware RAID 0 / 1 / 3 / 5 / 10 / JBOD / CLONE

Supports 1-port 3.0Gbps e-SATA II interface
Supports 5-port 3.0Gbps SATA II interface
Automatically speed negotiation for 3.0Gbps or 1.5Gbps
Supports Native Command Queue (NCQ)
Supports Hot-Plug

RAID:

Fully hardware-accelerated RAID Engine
No driver, BIOS or software required for RAID operation
Independent of device SATA port connection sequence
Supports RAID levels: 0 / 1 / 3 / 5 / 10 / JBOD
RAID 3 / 5 write-back cache to enhance performance
SATA In-band application interface
Supports more than 2Tera Bytes RAID drive
Supports on-line command based bad sector recovery
Supports on-line Auto-Rebuild
Rebuild speed: 200GB/hour
Rebuild proceed continuously between power cycling
Supports Hot Spare on RAID
Supports various RAID configuration and monitoring method

Specification:

HDD Type

3.5 SATA I/II1.5Gbps ~ 3.0Gbps

HDD Amount

5max

Interface

e-SATA (3 Gbps, auto-negotiates to 1.5 Gbps)

Raid Mode

Supports RAID levels: 0 / 1 / 3 / 5 / 10 / JBOD
Running RAID functions With Silicon Image SIL3132 PCI Express to 1-Port Serial ATA II Host Controller Card (Included )

Raid Control Mode

Hardware / Software AP

Features

Hot Plug / hot swap, Plug and play functionality

Supports 2TB RAID drive, maximum 10TB

Fan:

LED

AC Adapter

eSATA Cable / Power Adapter / Software AP CD / User Manual

Dimensions

175mm x 235mm x 260mm (W, H, D )

System requirement

PC / Windows Systems:

Intel Pentium III 500 MHz equivalent or faster

Windows XP, 2003 Server or Windows Vista with latest Service Packs

64MB od RAM minimum

250MB of free disk space

For eSATA speeds , the system must support Port Multiplier specification

O,S List:

Windows 98/SE/ME/2000/XP/Vista/Server2003/Server2008

Mac book 10.5.5 / Mac Pro 10.5.5 / Mac G5 10.5.5 ( or later)

Red Hat Enterprise 5 32bit / Fedora code 7~10 32bit
