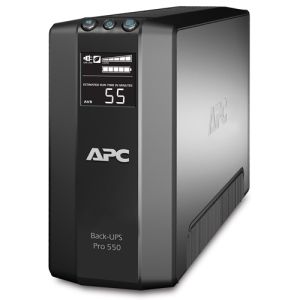

APC BR550GI Back-UPS Pro RS - 550VA, 330W

IMG 1 of 2
No Longer Available
Part Number:
147060
(?) Brand:
APC Web Site
Manuf No:
BR550GI
Shipping Weight:
20 KG (Includes product packaging)
Estimate Shipping
Date Added:
7/7/2010
Details Files Images & Video
All stock codes associated to this product
BR550GI, II13812, 731304266884

Power Saving Back-UPS Pro 550

APC Back-UPS RS, 330 Watts / 550 VA,Input 230V / Output 230V

BR550GI Features

High frequency design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Power-saving outlets
Automatically cuts power to idle equipment to conserve electricity.
Always on Outlets
8 outlet models offer dedicated space to accommodate wide transformer blocks without covering adjoining outlets and 2 always on outlets. You can plug 8 power cords including 3 transformers at the same time. In case you have equipment that has to stay on all the time, such as fax machine, you can plug it in always on outlets. The equipment will be protected and will have power supply even when the unit is switched off.
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment
Cold-start capable
Provides temporary battery power when the utility power is out.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Dataline Surge Protection
Provides protection of connected equipment from power surges on the data lines.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Audible alarms
Provides notification of changing utility power and UPS conditions.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Building Wiring Fault Indicator
This LED informs users of potentially dangerous wiring problems in the wall circuit.
Battery replacement without tools
Allows quick, easy battery replacement.
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.

Back-UPS RS Features & Benefits

Protection
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.

Convenience
Audible alarms
Provides notification of changing utility power and UPS conditions.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery replacement without tools
Allows quick, easy battery replacement.
LED status indicators
Quickly understand unit and power status with visual indicators.
Cold-start capable
Provides temporary battery power when the utility power is out.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Resettable circuit breakers
Enables a quick recovery from overload events.
Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Manageability
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Intelligent battery management
Micro-processor controlled battery charging and diagnostic testing ensures maximum battery life.

Specifications

Output

Output Power Capacity
330Watts /550 VA
Nominal Output Voltage
230V
Efficiency at Full Load
77%
Output Frequency (sync to mains)
50 Hz
Waveform Type
Stepped approximation to a sinewave
Output Connections
(3) IEC 320 C13 (Battery Backup)
(3) IEC 320 C13 (Surge Protection)
Efficiency at Half Load
84%

Input

Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C14
Cord Length
1.83meters
Input voltage range for main operations
176 - 282V
Maximum Input Current
6A
Input Breaker Capacity
7A

Batteries & Runtime

Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
12hour(s)
Replacement Battery
APCRBC110
RBC Quantity
1
Extended Run Options
Power Saving Back-UPS Pro 550
Runtime Graph


Surge Protection and Filtering

Surge energy rating
420Joules
Data Line Protection
Network line - 10/100 Base-T Ethernet (RJ-45 connector)

Physical

Maximum Height
190.00mm
Maximum Width
91.00mm
Maximum Depth
310.00mm
Net Weight
6.53KG
Shipping Weight
7.71KG
Shipping Height
252.00mm
Shipping Width
138.00mm
Shipping Depth
442.00mm
Master Carton Weight
15.94KG
Color
Black
SCC Codes
1073130426688 1
Units per Pallet
70.00

Environmental

Operating Environment
0 - 40C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-3000meters
Storage Temperature
-15 - 45C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-15000meters
Audible noise at 1 meter from surface of unit
40.00dBA

Conformance

Regulatory Approvals
A-tick,C-tick,CE,GOST,GS Mark
Standard Warranty
2 years repair or replace,3 years repair or replace for European Union countries
Environmental Compliance
RoHS,REACH: Contains No SVHCs

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (APC) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
