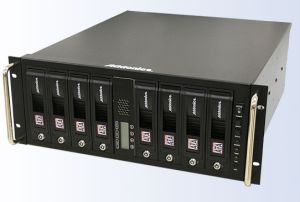

Addonics RRIS8DR Network Storage Device
  • 8x 3.5"SATA HDD, 0,1,5,10, 500W Redundant PS, 2xGigLAN

IMG 1 of 2
No Longer Available
Part Number:
150512
(?) Brand:
Addonics Web Site
Manuf No:
RRIS8DR
Shipping Weight:
10 KG (Includes product packaging)
Estimate Shipping
Date Added:
17/8/2010
Details Files Finance Images & Video
All stock codes associated to this product
RRIS8DR
RRIS8DR

All is needed is to add the hard drive of your choice to create your own powerful iSCSI storage

The Addonics iSCSI RACK is a SAN storage solution that features high performance over Gigabit network with redundant power supplies to ensure high availability for mission critical applications. The iSCSI Rack is built on our industrial grade 4U rack mount chassis, integrated with the Addonics 8-port iSCSI subsystem, and 8 Snap-In Mobile Racks for quick drive installation and easy drive replacement without any special tools.

Features
  • Install up to eight 3.5" SATA hard drives of any capacity of your choice
  • Type of RAID set up: 0, 1, 0+1, 3, 5, 6, 10, 30, 50, 60, and JBOD(Just a Bunch of Disks)
  • iSCSI storage over Gigabit network
  • Redundant power supply
  • Industrial grade 4U rack mount chassis
  • Build Redundant Multi-Terabyte RAID Volumes - A total of 256 logical volumes can be added to the iSCSI subsystem. The on-line volume expansion and RAID level migration features makes the iSCSI subsystem an excellent choice for accommodating future storage requirements. This iSCSI subsystem supports nearly every type of RAID, including 0, 1, 0+1, 3, 5, 6, 10, 30, 50, 60, and JBOD(Just a Bunch of Disks). RAID 6, ideal for mission critical servers, provides protection against the failure of one or two hard drives and enable complete data recovery from the remaining data and parity drives. There are also support for global and dedicated hot spare disks that can be allocated to redundant RAID volumes for automatic volume rebuild.
  • Advanced Management Capability - The iSCSI subsystem is managed and controlled via a web based GUI (Graphical User Interface), accessible from any browser over the local network. For remote access, SSH (secure shell) client software can be used to manage the ISC8P2G from virtually any location with an internet connection. The Management GUI features a robust set of management options including low level access to the connected volumes, event notification via email, SNMP trap, browser pop-up windows, Syslog, Windows Messenger and many others. The intuitive LCM (LCD Control Module) located in the front panel provides a set of easily accessibly Function buttons for simple system administration.
  • Multiple Snapshots with Scheduling - The iSCSI subsystem comes with an integrated Snapshot module. The Snapshot, similar to the roll back software or the Windows System Restore, enables the iSCSI to record the state of the storage system at the preset time intervals without any interruption to the application access. This provides additional protection against data corruption and faster data recovery in case of a disaster, virus infection or an inadvertent data modification.
RRIS8DR

iSCSI Rack
Package Contents: iSCSI Rack, User manual, Driver CD

Specification

Rackmount Chassis

    • 4U height
    • Constructed with heavy duty cold rolled electroplated steel
    • Integrated 500W redundant power supply (model: AARDPS500)
    • Dual 90x90mm cooling fans (51CFM each) included
    • Intelligent Thermal Management Card included
      • Supports connection of up to 8 cooling fans
      • Two ambient temperature detect terminals
      • Built-in overheat buzzer
      • LED connectors for fan, temperature, and power
      • On / Off control for each cooling fan and temperature setting (40C, 50C, 60C)
      • Detailed diagram and specifications

  • Front Panel
    • LED displays - Power, HDD Activity, Fan, and Temperature
    • Front accessible switches - Power On / Off, System Reset, Buzzer Reset
    • 8 Snap-In Mobile Racks
    • 1 iSCSI subsystem

  • Rear panel
    • 3 RJ-45ports -
    • 2 Gigabit Ethernet ports with load-balancing and fail-over for high availability.
    • 1 port for iSCSI monitoring and configuration



iSCSI Subsystem

  • Dedicated iSCSI storage appliance with 2 Gigabit Ethernet ports with load-balancing and fail-over for high availability
  • Supports Hardware RAID 0, 1, 0+1, 3, 5, 6, 10, 30, 50, 60, JBOD (Just a Bunch of Disks)
  • 8-Ports (model # ISC8P2G-S) - accommodates up to 8 individual SATA hard drives
  • Up to 2TB storage volume per SATA port - Maximum storage capacity is 16TB
  • Snapshot module for protection against data corruption and faster data recovery
  • Housed in heavy duty steel chassis with ventilation holes
  • Onboard 1GB memory

  • Controller Components

    • Intel IOP 81331
    • Onboard memory 1GB DDR 333 ECC SIMM
    • UARTs for serial console management* and UPS
    • Dedicated Fast Ethernet port For Web-UI
    • Backend: SATA 1.0, 1.5Gb/s or SATA 2.0, 3Gb/s disks
    • Front-end: 2 GbE Ethernet ports
    • LCM supported for easy management use

  • RAID & Volume Operation

    • RAID level: 0,1,0+1,3,5,6,10,30,50, 60 and JBOD
    • Up to 256 logical volumes in the system
    • Global and dedicated hot spare disks
    • Write-through or write-back cache policy for different application usage
    • Dedicated or shared cache allocation for volume usage
    • Multiple RAID volumes support
    • Configurable RAID stripe size
    • Online volume expansion
    • Instant RAID volume availability
    • Auto volume rebuilding
    • On-line volume migration

  • Advanced Data Protection

    • Local N-way mirror
    • Off-line array roaming
    • Smart faulty sector relocation

  • Enclosure Monitoring

    • S.E.S. enclosure management
    • UPS management via the specific serial port*
    • Voltage monitor
    • Thermal sensors on the controller board

  • Management Interface

    • Management UI via
      • Serial console*
      • SSH telnet
      • HTTP Web UI
    • Event notification via
      • Email
      • SNMP trap
      • Browser pop-up windows
      • Syslog
      • Windows Messenger
    • Online system firmware upgrade mechanism
    • Built-in LCD module to control most enclosure components
    • iSNS & DHCP support
    • CHAP authentication mechanism support

  • Host & Drive Connection
    • 2 x GbE ports support independent access, fail-over, or load-balancing
    • MC/S feature
    • Microsoft Multipath IO (MPIO)
    • iSCSI jumbo frame
    • CHAP authentication
    • Data/Header digest
    • SCSI-3 compliant
    • Multiple IO transaction processing
    • Tagged command queuing
    • Access control in LUN usage: Read-Write & Read-Only
    • Hard drive S.M.A.R.T. enabled
    • Up to 32 host connection
    • Compatible with Windows, Linux, & MAC Operating Systems

iSCSI Subsystem Specifications





Onboard processor Intel IOP 80331
Onboard memory 1GB 333Mhz ECC
SATA ports choice of 8 or 16 SATA ports supporting SATA I/II standard
RAID Hardware RAID supporting the following RAID configuration: 0,1,0+1,3,5,6,10,30,50, 60 and JBOD
  • Up to 256 logical volumes in the system
  • Global and dedicated hot spare disks
  • Write-through or write-back cache policy for different application usage
  • Dedicated or shared cache allocation for volume usage
  • Multiple RAID volumes support
  • Configurable RAID stripe size
  • Online volume expansion
  • Instant RAID volume availability
  • Auto volume rebuilding
  • On-line volume migration
Network port

2 RJ45 connectors for dual 1-Gigibit Ethernet connection
1 RJ45 connector for management and status monitor

Serial port 1 for console management
1 for UPS
Other monitoring functions S.E.S enclosure monitor, voltage monitor, onboard temperature monitor
Snapshot (available only for certain models))
  • record iSCSI storage state at user defined time interval to enable roll back when needed (similar to system restore)
  • support up to 16 volumes with each volume support up to 32 snapshot volumes for a total of 512 snapshot volumes
Maximum storage capacity 128TB
Number of CHAP 1
Input power Standard 4P power connector. Minimum 5V : 7.1A 12V: 3.0A
LED control module 2 lines LCD display with function buttons
Management UI
  • Serial console
  • SSH telnet
  • HTTP Web User Interface

Supported workstations

Any operating system with a hardware or software iSCSI initiator installed

Weight:

1.81 lb (823g) including top cover

Size:

5.71 x 8.66 x 1.57 in. or 145 x 220 x 40 mm (W x D x H)
size of a full height optical drive. Fits any standard 5 1/4" drive bay.

Housing material of construction Heavy Duty Steel

Operating Humidity:

20% - 80%

Operating Temperature:

0C - 40 C

Storage Humidity:

0% - 95% non-condensing

Storage Temperature:

-10C - 40 C

Warranty:

One Year
