Wacom DTU-1631 Tablets - 15.6"WXGA, 1366x768, 508lip, VGA, DVI, 2xUSB

IMG 1 of 1
No Longer Available
Part Number:
152024
(?) Brand:
Wacom
Manuf No:
DTU-1631A/G0-C
DTU1631A/G0C
Shipping Weight:
8 KG (Includes product packaging)
Estimate Shipping
Date Added:
6/9/2010
Details Files Finance Images & Video
All stock codes associated to this product
DTU1631A/G0C, DTU-1631A/G0-C, 1348690, 4949268702133

DTU-1631

When direct on-screen pen input is required and space is limited, the DTU-1631 is the answer. The DTU-1631 features a wide format WXGA (1366 x 768 pixels) screen with a profile small enough to fit on any desk or work space. The pen is compatible with most other products with Wacom's Penabled technology and senses 512 levels of pressure.

With its compact size and excellent pen performance, the DTU-1631 is perfect for use in a variety of industries. Connect the video output to a projector to give presentations that can be easily annotated while still maintaining eye contact with the audience. This is a popular setup in both the classroom and the boardroom. The direct on-screen input also makes the DTU-1631 popular for call center operation, electronic signatures, lighting control, and informed consent in the medical market.

The DTU-1631 is a compact newcomer to the Wacom interactive pen display family. The screen measures 15.6" diagonally and its wide format supports resolutions up to 1366 x 768 (WXGA) pixels.


Features and Benefits

Advanced Technology, Superior Quality

  • 15.6-inch Display - the DTU-1631's 15.6-inch active matrix TFT LCD display delivers 1366 x 768 pixel resolution (16:9) in a compact unit.
  • Built-in video scaler reformats DVI signals that are in widescreen mode (16:10) to standard mode (4:3) preventing screen distortion.
  • Connectivity -- DVI-I digital video input for high quality display images, and DVI-I digital video out for connecting to a projector. DVI to VGA cable also provided.


Wacom Pen Technology, a natural experience

  • 512 levels of pressure sensitivity and based on over 25 years of experience in building digital pens that feel like the real thing, Wacom's patented electro-magnetic resonance pen technology provides the world's most sophisticated pen input experience. Even first time users will be surprised at how similar writing on-screen is to writing on paper.
  • With a high reporting rate of 133 points/sec combined with sophisticated pressure sensitivity, Wacom's refined pen technology offers smooth, natural, on-screen mark up.
  • Compatible with most Tablet PCs using Wacom's Penabled technology.

Convenience

  • Cordless & battery-free pen for free movement and consistent reliability.
  • Customisable pen buttons for right clicking or setting to various functions & keyboard shortcuts.
  • Pen eraser for fast erasing of marks and text (in Windows).
  • Security hole to deter theft.
  • Conveniently store your pen in the pen holder, and attach it with a tether to prevent misplacement.
  • 2 USB hubs for connecting flash drives and other devices

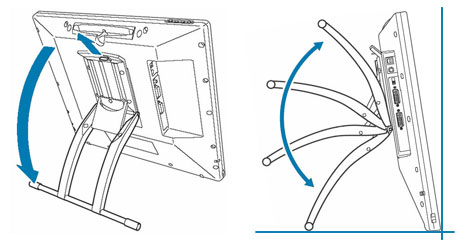

  • Adjustable stand for optimal viewing angle (19 degrees from the vertical) as well as inclined angle (up to 72 degrees from the vertical) for optimal pen input
DTU-1931A Adjustable Stand



Unique to the DTU-1631

  • 15.6" screen delivers wide (16:9), WXGA (1366 x 768) resolution.
Specifications


Technical specifications for the DTU-1631 can be found below. Click on Compare Models to see a comparison chart with Wacom's other pen display models.



LCD DISPLAY
Product
DTU-1631
Screen size
15.6-inch
Screen resolution
1366 x 768 (WXGA)
Pixel pitch 0.252 x 0.252 mm
Colour depth
16.77 million colours
Contrast ratio
400:1
Maximum Brightness (cd/m2 )
255 cd/m2
Response Time
8 ms
Viewing angle (horizontal / vertical)
90 / 65
Backlight lifetime
50,000 hours
Video Cables
DVI-I to VGA (analog RGB) cable DVI to DVI cable
Video Interface
DVI-I video in/out



PEN & TABLET
Battery-free & cordless pen
Yes
Pen pressure levels
512 levels
Customisable pen buttons
2 side switches
Pen eraser
Yes
Pen tether
Yes
Pen stand
No
Tablet resolution
508 lpi
Coordinate accuracy
0.5mm (center)
Tablet reading height
5 mm
Report rate
133 points/sec
Data interface
USB
Data cables
USB cable



GENERAL
Main unit dimensions (W x D x H)
420 x 283 x 49 mm (excluding stand)
Weight (including stand)
4.3 kg
Adjustable stand (incline from vertical)
19 to 72
USB 2.0 hubs 2 (1 on each side of the display)
Operating temperature
5 to 35
Operating humidity
20% to 80% RH



OTHER

Windows OS compatibility
7 / Vista / XP / 2000
Macintosh OS compatibility
OS X 10.4 or later
Power supply input
AC 100-240V, 50-60Hz
Maximum power consumption
29W
Limited warranty
One year
