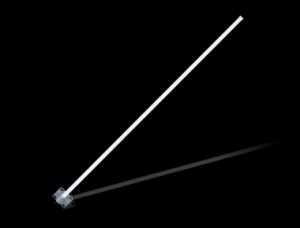

D-Link ANT70-0800 Dualband 2.4GHz Antenna, 8dBi Omni-Directional

Features

• 2.4GHz & 5GHz Frequency Range
• Water/Dustproof design (IP67) for outdoor use
• Omni-Directional, 360 Horizontal Spread, 15 Vertical Spread
• N-Female Connector
• 0.5m Length Patch Cable with N-Male to RP-SMA supplied
• Mounting Kit supplied

The ANT70-0800 omni-directional antenna is a high gain, high-performance dual band antenna. It is suitable for outdoor installation (IP67 rated). This antenna can greatly increase the effective wireless operation range of 802.11a, 802.11b and 802.11g wireless devices.

Providing a gain of 8dBi for 2.4GHz band and 10dBi for 5GHz band, this antenna can be connected to a wireless 802.11a/b/g/n access point or router to improve signal transmission and reception in a directional angle. It is ideal for connecting two networks locating in two different buildings, or in two different locations in a campus.

The ANT70-0800 antenna is equipped with an N-jack connector and can be mounted on a pole. It can be attached to a wireless device through a provided extension antenna cable. For best performance use an antenna of the same gain or higher at the other end of the connection.



Frequency Range
2400 MHz to 2500 MHz
5100 MHz to 5900 MHz



Peak Gain
8dBi (2.4GHz frequency band)
10dBi (5GHz frequency band)

VSWR
2.0 : 1 maximum (2.4GHz frequency band)
2.0 : 1 maximum (5GHz frequency band)



Polarization
Linear
Vertical



Horizontal Half Power Beam Width
360º



Vertical Half Power Beam Width
13º (2.4GHz)
7-10º (5GHz)



Front to Back Ratio
15dB



Downtilt
0°



Power Handling
5 W (cw)



Impedance
50 ohms

Connector
N Jack (built-in)

Extension Cable
N/A

Mounting Type
Pole

Surge Arrestor
Optional



Survival Wind Speed
216 km/hr

Operating Temperature
-40°C to +80°C

Operating Humidity
95% @ 55°C

Color
White

Material
Glass Fiber, UV resistant

Weight
1.03 kg

Dimensions
1220 (L) x 75 (W) x 80 (H) mm
