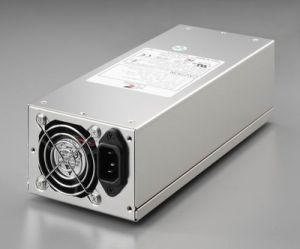

Zippy 500W Slim Power Supply (P2H-5500V)
  • Suits Norco 2U Chassis (RPC-2008, RPC-2208, RPC-250, RPC-270, RPC-271, RPC-271)

IMG 1 of 1
No Longer Available
Part Number:
157969
(?) Brand:
Zippy
Manuf No:
P2H-5500V
P2H5500V
Shipping Weight:
5 KG (Includes product packaging)
Estimate Shipping
Date Added:
4/11/2010
Details Files Images & Video
All stock codes associated to this product
P2H5500V, P2H-5500V


2U SingleP2H-5500V




500W

Server,Workstation,Storage System,IPC

215.00x100.00x70.00(mm)
8.46x3.94x2.76(inch)

VOLTAGE90264VACFULLRANGE
FREQUENCY4763HZ
INPUTCURRENT6A(RMS)FOR115VAC/
3A(RMS)FOR230VAC
INRUSHCURRENT40AMAX.FOR115VAC/
60AMAX.FOR230VAC
Output Voltage Output Current Min. Output Current Max. Output Current Peak Regulation Load Regulation Line Output Ripple & Noise Max.[P-P]
+5V 1 25.00   5% 1% 70mV
+12V 1 40   5% 1% 120mV
-12V 0.1 0.8   10% 1% 120mV
+3.3V 1 25   5% 1% 70mV
+5VSB 0.1 3.5   5% 1% 70mV





* TEMPERATURE RANGEOPERATING 040
* HOLD UP TIME16mS MINIMUM AT FULL LOAD & NOMINAL INPUT VOLTAGE
* DIELECTRIC WITHSTANDINPUT/OUTPUT 1800 VAC FOR 1 SECOND INPUT TO FRAME GROUND 1800 VAC FOR 1 SECOND
* EFFICIENCY83% TYPICAL AT 115VAC , FULL LOAD
* POWER GOOD SIGNALON DELAY 100mS TO 500mSOFF DELAY 1mS
* OVER POWER PROTECTION110160% MAX
* OVER VOLTAGE PROTECTION+5V5.6V6.6V +3.3V3.6V4.3V +12V13.2V15V
* SHORT CIRCUIT PROTECTION+5V+12V+3.3V
* EMI NOISE FILTER : FCC CLASS A, CISPR22 CLASS A
* SAFETY : TO MEET UL, CUL, TUV
* REMOTE ON/OFF CONTROL THE POWER SUPPLY SHALL ACCEPT A LOGIC OPEN COLLECTOR LEVEL WHICH WILL DISABLE/ENABLE ALL THE OUTPUT VOLTAGE (EXCLUDE +5V STAND BY). AS LOGIC LEVEL IS LOWOUTPUTS VOLTAGE WERE ENABLE AS LOGIC LEVEL IS HIGHOUTPUTS VOLTAGE WERE DISABLE.
* 3.3V & 5V REMOTE SENSING
* COOLING: ONE 40mm DC FANS
* MEET IEC-1000-3-2 CLASS D


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year RTB

Full manufacturers warranty details are available at the manufacturers web site.
