HOME / Back -> Cases -> Midi-Tower -> ThermalTake

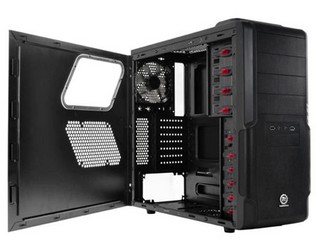

ThermalTake Dokker Midi Tower Case - NO PSU, Black
  • 2xUSB2.0, 1xHD-Audio, 120x120x25mm Fan, Side-Window, HDD Dock, ATX

IMG 1 of 1
No Longer Available
Part Number:
158342
(?) Brand:
ThermalTake Web Site
Manuf No:
VM600M1W2Z
Shipping Weight:
15 KG (Includes product packaging)
Estimate Shipping
Date Added:
10/11/2010
Details Files Images & Video
All stock codes associated to this product
VM600M1W2Z
Dokker - VM600M1W2Z


Overview


 Top-mounted HDD Docking Station enables blazing fast file transfer and effortless hot-swap capability.
Supports up to 7 fans for superior airflow and cooling efficiency.
Supports the latest ATI & NVIDIAR graphic cards up to 12.5(e.g. ATI 5970)
Metal meshed front panel design accelerates cool air intake and dramatically increases cooling.
Supports high-performance 24cm water cooling radiator.

















Features


Unique single bay HDD docking design for unlimited storage space

Long graphic card supported including Radeon HD 5970

Water cooling support for internal 120 & 240mm radiator





Tool-free drive bays for fast and easy installation. Drive devices are installed using screwless clip as shown below.


Screwless Clip


5.25" Drive Bays


3.5" Drive Bays


Easily detachable front dust filter.

Removable PSU filter



Easily detachable front dust filter.


Removable PSU filter.




Specifications

P/N VM600M1W2Z
Case Type Mid Tower
Dimension H x W x D 470 x 200 x 485 mm
(18.5 x 7.9 x 19.1 inch)
Net Weight 6.1Kg / 13.4lb
Side Panel Window
Color Exterior & Interior : Black
Material SECC
Cooling System Front (intake) : Optional
120 x 120 x 25 mm fan x 1
Rear (exhaust) :
120 x 120 x 25 mm Blue LED fan (1300rpm,17dBA)
Top (exhaust) : Optional
200 x 200 x 20 mm fan or
120 x 120 x 25 mm fan
Side (intake) : Optional
120 x 120 x 25 mm fan
Bottom (intake) : Optional
120 x 120 x 25 mm fan or
80 x 80 x 25 mm fan
Drive Bays Drive Bays 10
- Accessible 3 x 5.25, 1 x 3.5
- Hidden 5 x 3.5, 1 x 2.5
- HDD Docking 1 x 3.5 or 1 x 2.5
Expansion Slots 7
Motherboards 9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX)
I/O Ports USB 2.0 x 2, HD Audio x 1
PSU Standard PS2 PSU
LCS Upgradable Supports 1/23/81/4 water tube
Other CPU cooler height limitation: 162mm
VGA length limitation: 320mm

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (ThermalTake) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
