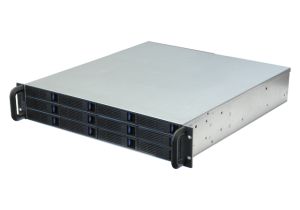

Model No. DS-12D External 2U 12 Bay Hot-Swap 6G SAS / SATA III Rackmount RAID / JBOD Enclosure

Features

  • 2U rackmount design
  • 12x hot-swappable SATA II, III/SAS 6G drive bays
  • 3x SFF-8088 external connectors
  • LED indicators for power and activity on each HDD tray
  • Backplanes are horizontal mounted for better ventilation
  • RoHS Compliant
  • OS Independent
  • Come with full range power supply

    Optional Data Cable: SFF-8088 cable

    Rail Option:RL-26

Specification
Drive Bay 12 x hot-swappable SATA II, III/SAS 6G drive bays
Cooling Fan 1 x 80mm rear fans, 3 x 40mm rear fans
Connector Three SFF-8088 external connectors
O.S. support OS Independent
Power Supply Option Standard ATX power supply
Dimensions ( W x D x H ) 19" x 18.9" x 3.5" (483mm x 480mm x 88mm)
Packing Double boxes
Weight (without hard drive) 11.3 kg/25 lb (NET) 12.7 kg/28 lb (GROSS)
Environment Temperature 0/40 C, 32/104 F (Operating) -20/60 C, -4/140 F (Non-Operating)
Relative Humidity 5% to 95%,non-condensing

No additional files, specification sheets, guides or documentation found for product.

Flexirent

You can finance this product via Flexirent! For more information regarding flexirent, and to use the flexirent finance calculator, please click here.

The calculator provides an indicative rental cost only. Flexirent prices quoted include GST and stamp duty. Subject to credit approval. To obtain full quote and pre-approval please contact Flexirent Customer Service on 1800 240 102. Rental is payable monthly.

Full manufacturers warranty details are available at the manufacturers (Norco) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product
Click on a thumbnail to view it below

A list of products relating to this item are shown below. To add one/more to your cart along with the product shown above, simply click on the check box for each item and then click on the "Add to Cart" button.

Current Displayed Product (Preselected for you) DS-12D External Disk Array - 2U Rackmountable..

Price
$715.00

Cables - Hard Drive - SAS DS-12D External Disk Array - 2U Rackmountable..

151994, Norco SFF-8088 External SAS (Serial Attached SCSI) Storage Cable $55.00

Cases - Server - Accessories DS-12D External Disk Array - 2U Rackmountable..

125973, Norco 26" Slide Rail Kit - 3 Section, Ball Bearing, Supports from 2U to 5U chassis $93.50
151997, Norco Hard Drive Tray (Spare) - Supports 3.5" and 2.5" drives $11.55

Networking - Rack Cabinets & Accessories DS-12D External Disk Array - 2U Rackmountable..

156666, Norco SA-2100 Rack Mounting Screw & Nut - 10 Pieces $8.00
125975, Norco SA-2100 Rack Mounting Screw & Nut - 20pcs $13.95
