All stock codes associated to this product
CFASTD42S, CFASTD4-2S
1:4 CFast Duplicator PRO - copy from 1 CF or CFast card to 4 CFast cards
Package content:
- 1: 4 CFast card Duplicator PRO
- User guide
The Addonics CF or CFast Duplicator is a family of fast and economical solution for quickly making copies of CF or CFast media Choose from an array of models that allows you to duplicate 4, 5 or even 10 media at a time. The CF/CFast Duplicator is also easy to operate, simply insert the source media into the source slot and target media with equal or larger capacity into the destination slots, a simple push of the copy button is all you need to start the copying process. There is no complicate software to run and doesn't even require a PC.
The CF/CFast Duplicator PRO models offer the dual source feature which allows you to copy from either the regular CF card or the latest CFast card to either CF cards or CFast cards. This ability allows the quick transfer of content in CF to multiple CFast cards or vice versa.

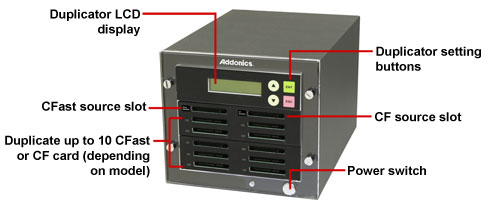

Diagram illustrating duplicator features
(1:10 CF or CFast Duplicator PRO shown)
|
Front view
|
Rear view
(source selector is available in PRO model only)
|
Supported flash media copying options
|
CFAST Duplicator
|
| Model |
Product name |
Source |
Destination |
|
CFASTD5
|
1:5 CFast Duplicator |
CFast card |
from 1 to 5 CFast cards |
|
CFASTD4-2S
|
1:4 CFast Duplicator PRO |
CF card (type I or II) or CFast card |
from 1 to 4 CFast cards |
|
CFASTD10-2S
|
1:10 CFast Duplicator PRO |
CF card (type I or II) or CFast card |
from 1 to 10 CFast cards |
|
CF (Compact Flash) Duplicator
|
| Model |
Product name |
Source |
Destination |
|
CFD5
|
1:5 CF Duplicator |
CF card (type I or II)
|
from 1 to 5 CF cards (type I or II) |
|
CFD4-2S
|
1:4 CF Duplicator PRO |
CF card (type I or II) or CFast card
|
from 1 to 4 CF cards (type I or II) |
|
CFD10-2S
|
1:10 CF Duplicator PRO |
CF card (type I or II) or CFast card |
from 1 to 10 CF cards (type I or II) |
Product Features
- Standalone duplicator designed to clone any type of CFast or CF cards
- Choices of models with 1 to 4, 1 to 5 and 1 to 10 duplication
- PRO model supports using CF or CFast as a source media - enable transfer content from CF to CFast card or vice versa
- CF card slot is compatible with CF-I, CF-II and Micro Drive
- Completely standalone with no additional hardware or software required.
- Copy up to 150 MB/sec depending on the performance of the media
- OS independent
- LCM control module provides a rich set of robust advanced configuration options (click Full LCD console feature list for options detail)
- Green LED for both source and destination slots to indicate media access
Specification
- Writing mode : Sector to Sector
- Support up to 150 MB/sec transferring rate (actual transfer rate depends on the speed of flash media in the source and the destination drive)
- Sturdy metal frame construction
- Supported media:
- CF slot - Compact Flash Type I (CF-I), Compact Flash Type II (CF-II), Micro Drive
- CFast slot - CFast card
- LCD display with functional control panel
- Well ventilated for efficient air flow.
- Low noise high CFM ball bearing cooling fan
- Integrated 80W 110/240 auto-sense power supply
- Compact size - 7.48 x 10.63 x 6.5 inch (190 x 270 x 16.5 mm) (W x D x H)
- Weight -
- 1:5 CF or CFast Duplicator - 8.15 lb (3.70 Kg)
- 1:4 CF or CFast Duplicator PRO - 8.15 lb (3.70 Kg)
- 1:10 CF or CFast Duplicator PRO - 9.52 lb (4.32 Kg)
- Operating environment: 0 - 60 degree C, 15% - 90% RH
- Storage environment: -40 - 90 degree C, 0% - 95% RH non-condensing
