All stock codes associated to this product
ADSSSAI44
Slim ATAPI SATA to 44-pin IDE Converter

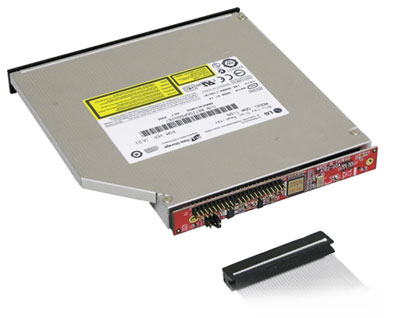

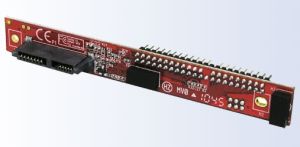

The Addonics Slim ATAPI SATA to 44-pin IDE Converter is designed to allow the latest slim line SATA optical drives to be converted into the 44-pin IDE connection. Attached easily to the back of the connector, this small converter board is an ideal solution for rack mount PCs, blade servers, Mini-ITX systems, or small equipment requiring to connect a slim SATA optical drive to 44-pin IDE interface.
Slim ATAPI SATA to IDE Converter Mounting Bracket (ADSSSAIBK)
Product Features

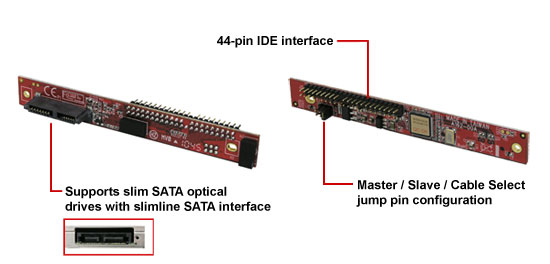

- Convert any type slim devices with slim SATA connector to 44-pin IDE connection
- Compatible with slim Blu-Ray, DVD-RRW optical drives with slim SATA connector
- Ideal for Rack Mount System, Server, Network Attached Storage and Mini ITX
- Hot swappable SATA connection
- Supports SATA I/II transfer rate of 1.5/3.0 Gbps
- SATA Power Save modes
- Supports IDE Master, Slave, and Cable Select modes by jumper setting
- OS Independent hardware bridge converter. No software driver required
ADSSSAI44
Slim ATAPI SATA to 44-pin IDE Converter
Package content:
- 1 slim SATA to 44-pin IDE Converter
- User Manual
Specifications
- Slim size board supports SATA slim ODD
- 44Pin 2.0mm 2.5 HDD IDE male connectors for power and signals from main board
- Compliant with Serial ATA 2.6
- Supports Serial ATA Generation 2 transfer rate of 3Gbps
- Jumper supports Master, Slave and Cable Select Modes
- ATA/ATAPI PIO mode data transfer
- ATA/ATAPI UDMA data transfer rate of 150, 100, 66, 44, 33, 25, 16.7 MB/s
- Tag Command Queuing (Max 32 entries)
- SATA Hot-plug
- SATA Power Save modes
- ATA/ATAPI-7 Streaming feature set
- Compatible with any Operating System. No software driver required.
- Operating temperature range: 0 C to +70 C
- Operating humidity range: 5% to 90%
- Storage temperature range: -40 C to +85 C
- Storage humidity range: 5% - 95% (non condensing)
- 1 year warranty
- RoHS Compliant
