All stock codes associated to this product
VM35021W2A, CASEVM35021W2A, CASE-VM35021W2A

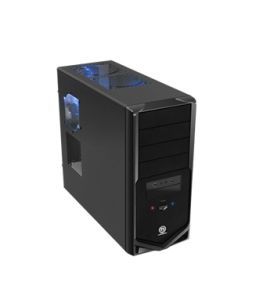

V4 Black Edition
450W PSU
Features
- Black coating makes stylish inside look
- Bottom-placed PSU design for better and easier installation
- Sleek looking sports-style front bezel
- Comfortably centered reset button and oversized power button
- Rear 120mm silent fan with brilliant Blue LED

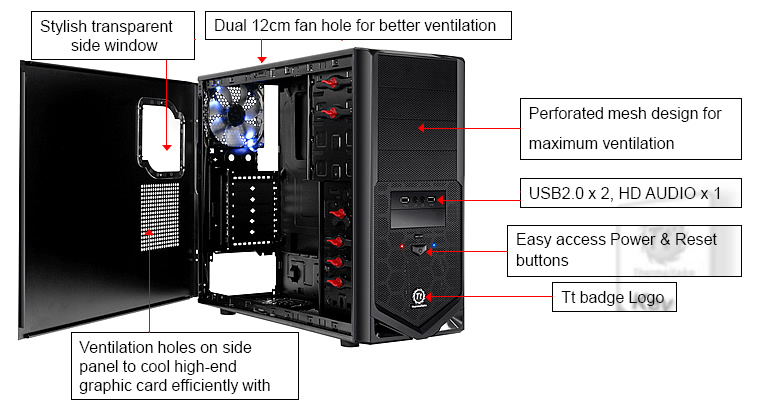

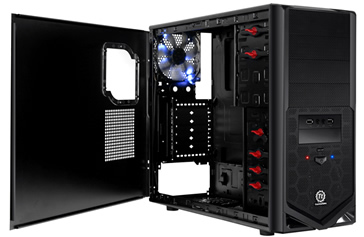

Angle Views
All Black Coating
Screwless Design 5.25"
Tool-free installation for drive bays, it’s not necessary to use screw driver while installing devices; easy to install, and easy to remove.
Design5.25 ODD Screwless x 23.5
23.5 HDD Screwless x 3
Compatible with 2.5 HDD/SSD x 1
3.5 FDD Screwless x 1
PSU Filter And Foot Stand
The PSU of V4 Black Edition is located on the bottom of chassis, bottom based PSU provide power supply independent and optimized cooling.
The V4 Black Edition use 15mm foot stand allow PSU to draw in fresh Cool air and the removable PSU bottom filter can keep dust away.

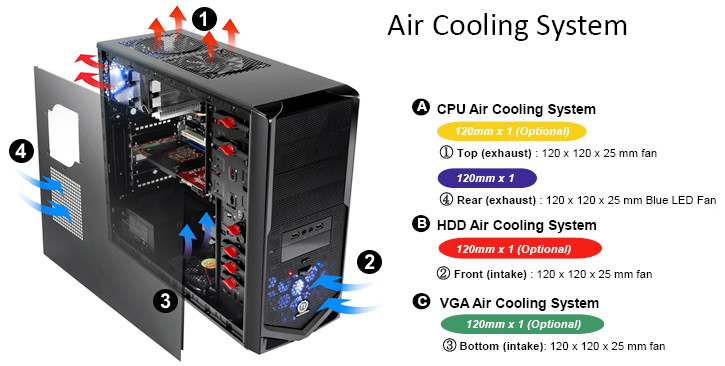

The Cooling System ~ Air Cooling
Features
Specifications
| Case Type |
Mid Tower |
| Material |
SECC |
| Front Bezel Material |
Mesh |
| Color |
Black |
| Side Panel |
Window |
| Motherboard Support |
Micro ATX
Standard ATX |
| Motherboard Tray |
No |
| 5.25" Drive Bay |
4 |
| Ext. 3.5" Drive Bay |
1 |
| Int. 3.5" Drive Bay |
4 with 1 x 2.5" SSD / HDD |
| Expansion Slots |
7 |
| Front I/O Ports |
USB 2.0 x 2
HD Audio x 1 (Support AC 97) |
| Cooling System |
-Front (intake):
120 x 120 x 25 mm optional
-Rear (exhaust):
120 x 120 x 25 mm Blue LED fan, 1300 rpm, 17 dBA
-Top (exhaust):
120 x 120 x 25 mm optional
-Bottom (intake):
120 x 120 x 25 mm optional |
| Liquid Cooling Capable |
|
| Liquid Cooling Embedded |
|
| Power Supply Supported |
450W PSU |
| Power Supply Included |
No |
| Dimension (H*W*D) |
16.9 x 7.5 x 18.7 inch
430 x 190 x 475 mm |
| Net Weight |
9.9 lb
4.5 kg |
| Security Lock |
|
| Application |
|
|
