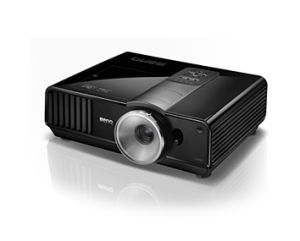

SH960
Dual Lamp Ultra-Brilliant Projection
Designed to excel in the most demanding settings, the SH960 boasts an energy-efficient dual-lamp system to achieve a stunning Full HD projection with 5500 ANSI lumen ultra-high brightness and 3000:1 contrast. With two lamps at work, presentations can be carried on without interruption.
Features
Amazing Image Quality
5500 ANSI Lumen Ultra High Brightness
Powered by a Unique Dual Lamp Design
A unique dual-lamp system is adopted for the SH960 to deliver impactful presentations with 5500 ANSI lumen ultra-high brightness. With two lamps at work, presentations can be carried on without interruption –If one lamp goes out, the other lamp will simply work harder to perform with optimum brightness.
Full HD 1080p Magnificence
The SH960 offers the highest standard of viewing – a Full HD resolution at 1080p. It supports multiple video formats including 480p, 576p, 720p, 1080i and 1080p, delivering 5 times more detail than traditional 480p projectors. With Full HD, every viewing experience becomes more absorbing.
3000:1 Powerful Contrast Performance
Boasting a high contrast ratio of 3000:1, the SH960 translates image with razor-sharp details defined by a broader range of subtle color differences. As a result, text is sharper, cleaner and easier to read.
Hollywood Quality Video (HQV™) Processing
A sophisticated image-processing engine, HQV converts standard definition (SD) and regular HD video sources to Full HD-like image quality with 80% precisely scaled picture quality. HQV works with both analog and digital video sources.
Simple and Easy Projector Installation

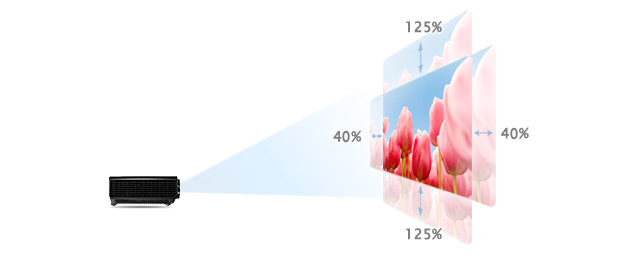

Horizontal & Vertical Lens Shift for Precise Projector Placement
In case of any minor miscalculations to take place during the projector installation, the lens shift function can be used to adjust the position of the projected image to fit the projection screen. This adjustment can be made by using the switch next to the projector lens, the key pad on the projector or the remote control.

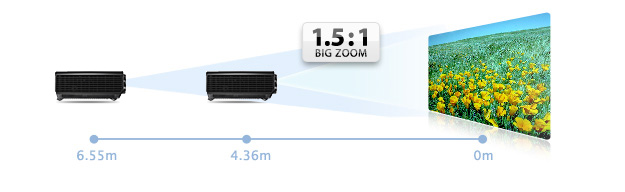

1.5x Big Zoom Ratio for Enhanced Installation Flexibility
Enjoy the convenience and flexibility of a big 1.5x zoom ratio! This feature opens up the space with an impressively wide range of throw distances – allowing you to set up the projector without spending extra on re-constructing the room.
Highly Compatible with Multiple Connection
LAN Control Centralized Projector Management
LAN Control enables IT managers to perform day-to-day projector maintenance and repair tasks efficiently and effectively. With full access and control over every projector directly from their workstations, IT managers get to save energy, time and money.
Compatible with the Most Popolar LAN Control Settings
The BenQ SH960 offers seamless support for a variety of LAN Control settings – whether it's Crestron, PJ-Link or SNMP. And, all you need is a LAN cable to set things up.
ecoFACTS Label
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
Specifications
| Projection System |
DLP |
| Native Resolution |
1080P (1920 x 1080) |
| Brightness* |
5500 ANSI lumens |
| Contrast Ratio |
3000:1 |
| Display Color |
Full 1.07 billion color palette |
| Lens |
F=2.48-2.81, f=24.1-36.15mm |
| Aspect Ratio |
Native 16:9 (5 aspect ratio selectable) |
| Throw Ratio |
1.62-2.43 ([email protected]) |
| Image Size (Diagonal) |
28-500 |
| Zoom Ratio |
Manual Zoom, 1.50:1 |
| Lamp (Normal/Economic Mode)* |
330W X 2 , 2000/3000 hours |
| Keystone Adjustment |
2D, Manual Vertical& Horizontal 30 |
| Projection Offset |
V=125%5%, H=40%5% |
| Resolution Support |
VGA(640 x 480) to WUXGA(1920 x 1200) |
| Horizontal Frequency |
31-92 kHz |
| Vertical Scan Rate |
23-85 Hz |
| Interface |
Monitor out (D-sub 15pin) x1
HDMI V1.3 x1
Composite Video in x1
S-Video in (Mini DIN 4pin) x1
Component Video in (RCA)x1
Audio in (Mini Jack) x1
Audio out (Mini Jack) x1
Speaker 5Wx2
LAN (RJ45) x 1 (LAN Control)
USB (Type Mini B) x 1 (Download )
DC 12V Trigger (3.5mm Jack) x1
RS232 (DB-9pin) x1
|
| Dimensions(W x H x D) |
17.44" x 6.57" x 13.98" (443 x 167 x 355 mm) |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| Weight |
29lbs (13 kg) |
| Audible Noise |
41/37/38/35 dBA (Two Lamp Normal/Two Lamp Eco/One Lamp Normal/One Lamp Eco) |
| Power Supply |
AC 100 to 240 V, 50/60 Hz |
| Power Consumption |
857W (Typical), Standby<1W |
| On-Screen Display Languages |
English/ France/ Germany/ Italian/ Spanish/ Russian/ Traditional Chinese/ Simplified Chinese/ Japanese/ Korean/ Swedish/ Dutch/ Turkish/ Czech/ Portuguese/ Thai/ Polish/ Hungarian/ Croatian/ Romanian/ Norwegian/ Danish/ Bulgaria/ Finnish/ Indonesian/ Greek/ Hindi/ Arabic (28 Languages) |
| Picture Modes |
Cinema/ Dynamic/Presentation/sRGB/ User 1/User 2 |
| Accessories (Standard) |
Remote Control w/ Battery Power Cord (by region) User Manual CD Quick Start Guide VGA(D-sub 15pin) Cable |
| Accessories (Optional) |
Spare Lamp Kit #1 P/N: 5J.J4L05.001 #2 P/N: 5J.J4L05.021 Universal Ceiling mount (P/N: 5J.J2K01.001) |
