Introduction
Engineered to quickly dissipate heat from a CPU, the GeminII M4 is built with direct contact heat pipes that minimize CPU contact gaps and provide excellent heat conduction. The GeminII M4 is the ultimate answer to space-constrained setups such as mini-ITX, HTPC, and any small-sized desktop PC.

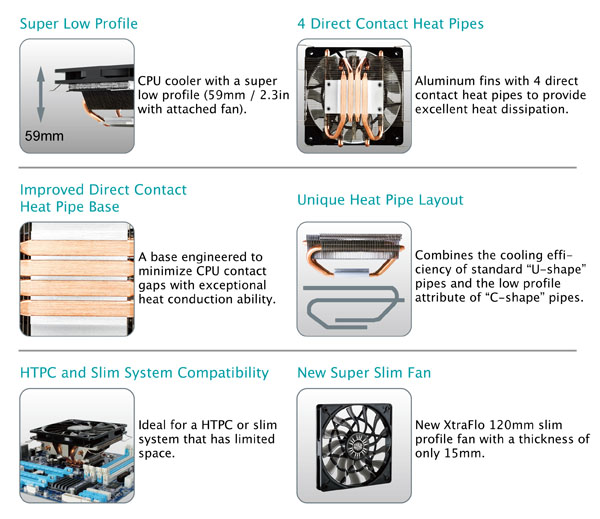

Features



  • Super low profile cooler (59mm / 2.3in height) with 4 direct contact heat pipes.
  • A base engineered to minimize CPU contact gaps provides excellent heat conduction.
  • Suitable for limited space applications (e.g. HTPC or slim systems).
  • Newly developed thin fan profile delivers uncompromised cooling performance in a compact package.
  • Unique heat pipe layout combines two very effective cooling methods to increase cooling efficiency while maintaining a low profile heat sink.

  • Specifications
    CPU Socket Intel Socket:

    LGA 1366 / 1156 / 1155 / 775 *
    AMD Socket:
    FM1 / AM3+ / AM3 / AM2+ / AM2
    CPU Support Intel:
    Core i7 Extreme / Core i7 / Core i5 / Core i3 / Core2 Extreme / Core2 Quad / Core2 Duo / Pentium / Celeron

    AMD:
    FX-Series / A-Series / Phenom II X4 / Phenom II X3 / Phenom II X2 / Phenom X4 / Phenom X3 / Athlon II X4 / Athlon II X3 / Athlon II X2 / Athlon X2 / Athlon / Sempron
    Dimension 137 x 122 x 59mm (5.4 x 4.8 x 2.3 in)
    Heat Sink Dimensions 120x 118 x 44 mm (4.7 x 4.6 x 1.7 in)
    Heat Sink Material 4 Direct Contact Heat Pipes / Aluminum Fins
    Heat Sink Weight 210g (0.46 lb)
    Heat Pipes Dimensions 6mm
    Fan Dimension 120 x 120 x 15 mm (4.7 x 4.7 x 0.6 in)
    Fan Speed 500 1,600 RPM (PWM) 10%
    Fan Airflow 17.4 58.4 CFM 10%
    Fan Air Pressure 0.18 1.76mm H2O ? 10%
    Fan Life Expectancy 40,000hrs
    Fan Noise Level (dB-A) 8 - 30 dBA
    Bearing Type Long Life Sleeve
    Connector 4-Pin
    Fan Rated Voltage 12 VDC
    Fan Rated Current 0.2A
    Power Consumption 2.4W
    Fan Weight 79g (0.17 lb)
    Note * Supplied accessories may differ by country or area. Please check with your local distributor for further details.
