IE-3000-8TC

Product Overview

The Cisco  Industrial Ethernet 3000 Series (IE 3000 Series) is a family of Layer 2 and Layer 3 switches that bring Cisco's leadership in switching to Industrial Ethernet applications with Innovative features, robust security, and superior ease of use. The Cisco IE 3000 Series features:

Industrial design and compliance
Tools for easy deployment, management, and replacement
Network security based on open standards
Integration of IT and industrial automation networks

The Cisco IE 3000 Series is an ideal product for Industrial Ethernet applications, including factory automation, energy and process control, and intelligent transportation systems (ITSs).

The Cisco IE 3000 offers:

Design for Industrial Ethernet applications, including extended environmental, shock/vibration, and surge ratings; a complete set of power input options; convection cooling; and DIN-rail or 19" rack mounting

Support for hundreds of hardware configurations

Easy setup and management using the Cisco Device Manager web interface and supporting tools, including Cisco Network Assistant and CiscoWorks

Easy switch replacement using removable memory, allowing the user to replace a switch without having to reconfigure

High availability, guaranteed determinism, and reliable security using Cisco IOS Software

Recommended software configurations for industrial applications that can be applied at the touch of a button

Compliance to a wide range of Industrial Ethernet specifications covering industrial automation, ITS, substation, railway, and other markets

Support for IEEE1588v2, a precision timing protocol with nanosecond-level precision for high-performance applications

Improved ring resiliency with the support of Resilient Ethernet Protocol (REP)

Transparent IT integration with the support of Layer 3 routing protocols (IP Services)

PROFINET v2 certification, with PROFINET conformance class B compliance

ABB Industrial IT certification

Configurations

The Cisco IE 3000 Series includes the following products (refer to Table 1):

Cisco IE-3000-4TC: Industrial Ethernet switch with four Ethernet 10/100 ports and two dual-purpose uplink ports (a dual-purpose port has one 10/100/1000BaseTX port and one Small Form-Factor Pluggable [SFP] port, port active), Layer 2 Lan Base image included

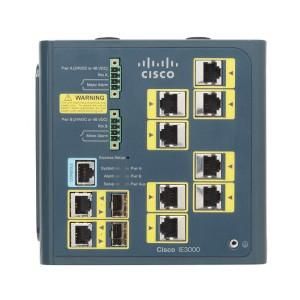

Cisco IE-3000-8TC: Industrial Ethernet switch with eight Ethernet 10/100 ports and two dual-purpose uplink ports, Layer 2 Lan Base image included

Cisco IE-3000-4TC-E: Industrial Ethernet switch with four Ethernet 10/100 ports and two dual-purpose uplink ports (a dual-purpose port has one 10/100/1000BaseTX port and one SFP port, port active), Layer 3 IP Services image included

Cisco IE-3000-8TC-E: Industrial Ethernet switch with eight Ethernet 10/100 ports and two dual-purpose uplink ports, IP Services image included

Cisco IEM-3000-8TM=: Expansion module for Cisco IE-3000-4TC, Cisco IE-3000-8TC, Cisco IE-3000-4TC-E, and Cisco IE-3000-8TC-E with eight Ethernet 10/100 ports

Cisco IEM-3000-8FM=: Expansion module for Cisco IE-3000-4TC, Cisco IE-3000-8TC, Cisco IE-3000-4TC-E, and Cisco IE-3000-8TC-E with eight 100BaseFX ports

Cisco PWR-IE3000-AC=: Expansion module supporting AC and extended DC power inputs

Solution Specifications

fig01_HKI00719
The Cisco IE 3000 Series software, based on Cisco IOS Software, is a rich suite of intelligent services, supporting high availability, quality of service (QoS), and security features. The SFP-based uplink ports accommodate a range of industrial-grade SFP transceivers, including 1000BASE-SX, 1000BASE-LX, 1000BASE-ZX, 100BASE-FX, and 100BASE-LX10.

Table 1. Cisco IE 3000 Switches

Description

Specification

Cisco IE-3000-4TC-E

fig02_HKI00701
4 Ethernet 10/100 ports and 2 dual-purpose uplinks (each dual-purpose uplink port has one 10/100/1000 Ethernet port and one SFP-based Gigabit Ethernet port, one port active)
Each switch supports two (2) Cisco IEM-3000-8TM= modules, one (1) Cisco IEM-3000-8FM= module, or one (1) Cisco IEM-3000-8TM= module and one (1) Cisco IEM-3000-8FM= module
IP Services image

Cisco IE-3000-8TC-E

fig03_HKI00704
8 Ethernet 10/100 ports and 2 dual-purpose uplinks (each dual-purpose uplink port has one 10/100/1000 Ethernet port and one SFP-based Gigabit Ethernet port, one port active)
Each switch supports two (2) Cisco IEM-3000-8TM= modules, one (1) Cisco IEM-3000-8FM= module, or one (1) Cisco IEM-3000-8TM= module and one (1) Cisco IEM-3000-8FM= module
IP Services image

Cisco IEM-3000-8TM=

fig04_HKI00708
Expansion Module for Cisco IE-3000-4TC-E and Cisco IE-3000-8TC Switches, 8 10/100 TX ports

Cisco IEM-3000-8FM=

fig05_HKI00711
Expansion Module for Cisco IE-3000-4TC-E and Cisco IE-3000-8TC Switches, 8 100 FX ports

Cisco PWR-IE3000-AC=

fig06_HKI00714
Expansion Power Module for Cisco IE-3000-4TC-E and Cisco IE-3000-8TC Switches, supports 110/220VAC and 88-300VDC (base switches support 18VDC-60VDC)



Industrial Ethernet Applications

The new Cisco IE 3000 Series is an ideal product for a variety of Industrial Ethernet applications:

Industrial automation: The Cisco IE 3000 is designed to support a wide array of Industrial Ethernet protocols for automation. The Cisco IE 3000 features a programmable logic controller (PLC) form-factor design with extended environmental ratings, convection cooling, DIN-rail mounting, redundant 24VDC power input, alarm relays, and surge/noise immunity. The Cisco IE 3000 software and configuration tools allow for easy setup, optimized for Industrial Ethernet applications (for example, Ethernet/IP). Multicast control, traffic prioritization, and security features are specified in default templates recommended for these protocols.

ITS: The Cisco IE 3000 supports ITS and other applications for outdoor video and traffic or transportation systems control. The switch supports compliance to NEMA TS-2, a variety of gigabit fiber uplinks, and AC and DC power input options, while Cisco IOS Software supports critical ITS features, including virtual LAN (VLAN), QoS, Internet Group Management Protocol (IGMP) snooping, and security access control lists (ACLs).

Substations: The Cisco IE 3000 is fully compliant to substation automation specifications, including IEC61850 and IEEE1613. The switch supports high-speed ring recovery; fiber access and uplink ports; and AC, 48VDC, and a variety of power input options for the substation environments with the PWR-IE3000-AC=.

Other applications: The Cisco IE 3000 can be deployed in railway, military, Metro Ethernet, and other applications requiring unique environmental, form factor, or power inputs in harsh environments.

Table 2 gives the features and benefits of the Cisco IE 3000 Series. Table 3 gives the hardware specifications, and Table 4 gives the power specifications. Table 5 lists the management and standards support, and Table 6 provides the safety and compliance information.

Table 2. Features and Benefits of Cisco IE 3000 Series

Category

Feature/Benefit

Designed for industrial applications

Extended temperature, vibration, shock and surge, and noise immunity ratings comply to specifications for automation, ITS, and substation environments.
Compact, PLC-style form factor is ideal for deployment in industrial environments.
DIN-rail, wall, and 19" rack mount options allow for deployments in a variety of control systems.
Variety of power input options covers a wide range of power requirements for Industrial Ethernet applications.
Up to 300 deployment configurations, supporting a range of access port densities, copper and fiber uplinks, fiber access ports, and power input, deliver flexibility in deployment.
Support for SFP modules provides uplink connectivity supporting 100BASE-LX, 100BASE-FX, 1000BASE-SX, 1000BASE-LX, and 1000BASE-ZX options.
Alarm relay contacts can be used for an external alert system.

Ease of deployment, management, and replacement

Cisco Express Setup simplifies initial configuration with a web browser, eliminating the need for more complex terminal emulation programs.
Cisco Smartports templates provide the option to apply a default global or interface-level macro with a recommended configuration, allowing the user to easily set up the switch in a configuration optimized for the specific application.
Smartports templates for Ethernet/IP provide an optimized setup for these Industrial Ethernet protocols at the touch of a button.
Swappable Flash memory is ideal for quick and easy switch replacement. Memory can be moved from one switch to another, so a switch can be replaced without the need to reconfigure software features.
The Common Industrial Protocol (CIP) management objects are supported, including a custom profile for primary Ethernet switch features. The Cisco IE 3000 can be managed by CIP-based management tools, allowing the user to manage an entire industrial automation system with one tool.
The Cisco IE 3000 can be managed by PROFINET based management tools. The IE 3000 has PROFINET v2 certification, with PROFINET conformance class B compliance.
Simple Network Management Protocol (SNMP) (v1/v2/v3) support allows for management using traditional IT-based management tools, including CiscoWorks.
Device Manager allows web-based switch configurations.
DHCP port-based allocation retains the IP address on a per port basis and simplifies the end-host replacement in an industrial setting.
HTTPS access
Cisco Network Assistant is a no-charge, Windows-based application that simplifies the administration of networks of up to 250 users. It supports the Cisco IE 3000 and a wide range of Cisco Catalyst  intelligent switches. With Cisco Network Assistant, users can manage Cisco Catalyst switches and launch the device managers of Cisco integrated services routers and Cisco Aironet  WLAN access points. Configuration wizards need just a few user inputs to automatically configure the switch to optimally handle different types of traffic: control, voice, video, multicast, and high-priority data.

Availability and scalability

Virtual LANs (VLANs) allow for logical segmentation for a network for optimal use of bandwidth.
QoS classifies and prioritizes data, guaranteeing determinism for mission-critical data.
IGMPv3 snooping provides fast client joins and leaves of multicast streams and limits bandwidth-intensive traffic to only the requestors. An additional querier allows this operation in a Layer 2 only environment.
IGMP filtering provides multicast authentication by filtering out no subscribers and limits the number of concurrent multicast streams available per port.
Per-port broadcast, multicast, and unicast storm control prevents faulty end stations from degrading overall systems performance.
IEEE 802.1d Spanning Tree Protocol support for redundant backbone connections and loop-free networks simplifies network configuration and improves fault tolerance.
EtherChannel LACP support for quick recovery and bandwidth utilization
FlexLinks for fast recovery
Cisco Hot Standby Router Protocol (HSRP) is supported to create redundant, failsafe routing topologies.
Resilient Ethernet Protocol, scalable up to 130 nodes with a very fast convergence, 50ms.

Security

IEEE 802.1x with VLAN assignment, guest VLAN, and voice VLAN allows dynamic port-based security, providing user authentication.
Port-based ACLs for Layer 2 interfaces allow application of security policies on individual switch ports.
MAC address filtering prevents the forwarding of any type of packet with a matching MAC address.
Secure Shell (SSH) Protocol v2 and SNMPv3 provide network security by encrypting administrator traffic during Telnet and SNMP sessions. SSHv2 and the cryptographic version of SNMPv3 require a special cryptographic software image because of U.S. export restrictions.
TACACS+ and RADIUS authentication enable centralized control of the switch and restrict unauthorized users from altering the configuration.
MAC address notification allows administrators to be notified of users added to or removed from the network.
Dynamic Host Configuration Protocol (DHCP) snooping allows administrators to help ensure consistent mapping of IP to MAC addresses. This can be used to prevent attacks that attempt to poison the DHCP binding database and to rate limit the amount of DHCP traffic that enters a switch port.
DHCP Interface Tracker (Option 82) augments a host IP address request with the switch port ID.
Port security secures the access to an access or trunk port based on MAC address.
After a specific time frame, the aging feature removes the MAC address from the switch to allow another device to connect to the same port.
Trusted Boundary provides the ability to trust the QoS priority settings if an IP phone is present and to disable the trust setting if the IP phone is removed, thereby preventing a malicious user from overriding prioritization policies in the network.
Up to 512 ACLs are supported, with two profiles: Security (384 Security ACL entries and 128 QoS policies) and QoS (128 Security ACL entries and 384 QoS polices).
Cisco standard and extended IP security router ACLs define security policies on routed interfaces for control-plane and data-plane traffic.
Dynamic ARP Inspection helps ensure user integrity by preventing malicious users from exploiting the insecure nature of the ARP protocol.
DHCP Snooping prevents malicious users from spoofing a DHCP server and sending out bogus addresses. This feature is used by other primary security features to prevent a number of other attacks such as ARP poisoning.
IP source guard prevents a malicious user from spoofing or taking over another user's IP address by creating a binding table between client's IP and MAC address, port, and VLAN.
Support for private VLANs

High-performance IProuting

Inter-VLAN IP routing for full Layer 3 routing between 2 or more VLANs.
Basic IP unicast routing protocols (static, Routing Information Protocol Version 1 [RIPv1], RIPv2 and RIPng).
Advanced IP unicast routing protocols (Open Shortest Path First [OSPF], Interior Gateway Routing Protocol [IGRP], Enhanced IGRP [EIGRP], Border Gateway Protocol Version 4 [BGPv4, IS-ISv4]) are supported for load balancing and constructing scalable LANs.
Protocol Independent Multicast (PIM) for IP multicast routing is supported, including PIM sparse mode (PIM-SM), PIM dense mode (PIM-DM), and PIM sparse-dense mode.
Cisco Express Forwarding hardware routing architecture delivers extremely high-performance IP routing.
IPv6 routing (OSPFv6 and EIGRPv6) support in hardware for maximum performance.
Policy-based routing (PBR) allows superior control by facilitating flow redirection regardless of the routing protocol configured.
HSRP provides dynamic load balancing and failover for routed links; up to 32 HSRP links supported per unit.
Support for 1000 multicast groups.
VRF-Lite virtualization



Table 3. Cisco IE 3000 Series Switch Hardware

Description

Specification

Performance

Wire-speed switching, 16 Gbps switching fabric
Forwarding rate based on 64-byte packets: 6.5 Mpps
128 MB DRAM
64 MB Compact Flash memory
Configurable up to 8000 MAC addresses (Layer 2 switch)
Configurable up to 2000 MAC addresses (Layer 3 switch)
Configurable up to 256 IGMP multicast groups (Layer 2 switch)
Configurable up to 1000 IGMP groups and multicast routes (Layer 3 switch)
Configurable up to 3,000 unicast routes (Layer 3 switch only)
Configurable maximum transmission unit (MTU) of up to 9000 bytes, with a maximum Ethernet frame size of 9018 bytes (jumbo frames) for bridging on Gigabit Ethernet ports, and up to 1998 bytes for bridging of Multiprotocol Label Switching (MPLS) tagged frames on both 10/100 and 10/100/1000 ports

Connectors and cabling

10BASE-T ports: RJ-45 connectors, two-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling
100BASE-TX ports: RJ-45 connectors, two-pair Category 5 UTP cabling
1000BASE-T ports: RJ-45 connectors, four-pair Category 5 UTP cabling
1000BASE-SX, -LX/LH, -ZX SFP-based ports: LC fiber connectors (single/multimode fiber)
100BASE-LX10, -FX: LC fiber connectors (single/multimode fiber)

Indicators

Per-port status LED: Link integrity, disabled, activity, speed, full-duplex indications
System-status LED: System, link status, link duplex, link speed, indications

Dimensions

(H x W x D)

Cisco IE-3000-4TC, Cisco IE-3000-4TC-E: 6.0"W x 5.8"H x 4.4"D (152mm H x 147mm W x 112mm D)
Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 6.0"W x 5.8"H x 4.4"D (152mm H x 147mm W x 112mm D)
Cisco IEM-3000-8TM=: 3.5"W x 5.8"H x 4.4"D (89mm H x 147mm W x 112mm D)
Cisco IEM-3000-8FM=: 3.5"W x 5.8"H x 4.4"D (89mm H x 147mm W x 112mm D)
Cisco PWR-IE3000-AC=: 2.0"W x 5.8"H x 4.4"D (51 mm H x 147mm W x 112mm D)

Weight

Cisco IE-3000-4TC, Cisco IE-3000-4TC-E: 4.4 lb (2.0 kg)
Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 4.4 lb (2.0 kg)
Cisco IEM-3000-8TM=: 2.2 lb (1.0 kg)
Cisco IEM-3000-8FM=: 3.2 lb (1.45 kg)
Cisco PWR-IE3000-AC=: 1.4 lb (0.65 kg)

Environmental ranges

Operating temperature: -40 to 167F (-40 to 75C)
Storage temperature: -13 to 185F (-25 to 85C)
Operating relative humidity: 10 to 95% (condensing)
Operating altitude: Up to 10,000 ft (3049m)
Storage altitude: Up to 15,000 ft (4573m)

Mean time between failure (MTBF)

Cisco IE-3000-4TC, Cisco IE-3000-4TC-E: 363,942
Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 329,451
Cisco IEM-3000-8TM=: 926,999
Cisco IEM-3000-8FM=: 264,689
Cisco PWR-IE3000-AC=: 1,662,359



Table 4. Power Specifications for Cisco IE300 Series Switch

Description

Specification

Maximum power consumption

15.1W (IE-3000-4TC, IE-3000-4TC-E)
15.7W (IE-3000-8TC, IE-3000-8TC-E)
2.8W (IEM-3000-8TM=)
10.1W (IEM-3000-8FM=)

Input voltage and currents supported

18-60VDC, (Cisco IE-3000-4TC, Cisco IE-3000-8TC, Cisco IE-3000-4TC-E and Cisco IE-3000-8TC-E)
85-265VAC/88-300VDC, 1.3-0.8A, 50-60 Hz (with addition of Cisco PWR-IE3000-AC=)

Power rating

Cisco IE-3000-4TC, Cisco IE-3000-4TC-E: .05KVA
Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: .05KVA



Table 5. Management and Standards Support for Cisco IE 3000 Series Switch

Description

Specification

Standards

100BASE-X (SFP)
1000BASE-X (SFP)
1000BASE-SX
1000BASE-LX/LH
1000BASE-ZX
RMON I and II standards
SNMPv1, SNMPv2c, and SNMPv3
100BASE-X (SFP)
1000BASE-X (SFP)
1000BASE-SX
1000BASE-LX/LH
1000BASE-ZX
RMON I and II standards
SNMPv1, SNMPv2c, and SNMPv3



Table 6. Compliance Specifications

Description

Specification

Standard safety certifications

UL to UL 60950-1
cUL to CAN/CSA C22.2 No. 60950-1
TUV/GS to EN 60950-1
CB to IEC 60950-1 with all country deviations
NOM(through partners)
CE Marking

Industrial safety certifications

UL 508
CSAC22.2No. 142

Mechanical stability

Shock-20g (operational), 30g (nonoperational)

EMC interface immunity

IEC61000-4-2 [Criteria A-Class 2]
IEC61000-4-3/ENV50204 [Criteria A]
IEC61000-4-4 [Criteria A / Criteria B]
IEC61000-4-5 [Criteria B]
IEC61000-4-6 [Criteria A]

Standard electromagnetic emissions certifications

FCC Part 15 Class A
EN 55022: 1998 (CISPR22)
EN 55024: 1998 (CISPR24)
VCCI Class A
AS/NZS 3548 Class A
CE
CNS 13438 Class A
MIC

Industrial electromagnetic emissions certifications

EN 50081-2
EN 50082-2
EN 61131-2
EN 61326-1
CISPR11
IEC 60533

Industry specifications

IEC 61850-3 (Substations)
IEEE1613 (Substations)
NEMA TS-2 (ITSs)
EN50155 (Railway)
ODVA Common Industrial Protocol
IEEE 1588v2

Hazardous locations

UL 1602 Class 1, Div 2 A-D
CSA 22.2 / 213 Class 1, Div 2 A-D
IEC 60079-15
EN 50021 - Class 1, Zone 2

Telco

Common Language Equipment Identifier (CLEI) code

Warranty

One year limited warranty



Service and Support

Cisco is committed to minimizing total cost of ownership (TCO). The company offers a portfolio of technical support services to help ensure that its products operate efficiently, remain highly available, and benefit from the most up-to-date system software. The services and support programs described in Table 7 are available as part of the Cisco Desktop Switching Service and Support solution and are available directly from Cisco and through resellers.

Table 7. Cisco Services and Support Programs

Service and Support

Features

Benefits

Advanced Services

Cisco Total Implementation Solutions (TIS), available direct from Cisco
Cisco Packaged TIS, available through resellers
Cisco SMARTnet  and SMARTnet Onsite support, available direct from Cisco
Cisco Packaged SMARTnet support program, available through resellers
Cisco SMB Support Assistant
Project management
Site survey, configuration, and deployment
Installation, text, and cutover
Training
Major moves, adds, and changes
Design review and product staging
Access to software updates 24 hours
Web access to technical repositories
Telephone support through the Cisco Technical Assistance Center (TAC)
Advance replacement of hardware parts
Supplements existing staff
Helps ensure that functions meet needs
Mitigates risk
Helps enable proactive or expedited issue resolution
Lowers TCO by taking advantage of Cisco expertise and knowledge
Minimizes network downtime



Ordering Information

Table 8 gives ordering information for the Cisco IE 3000 Series.

Table 8. Ordering Information for Cisco IE 3000 Series

Part Number

Description

IE-3000-4TC

Industrial Ethernet switch
4 Ethernet 10/100 ports and 2 dual-purpose uplinks (each dual-purpose uplink port has 1 10/100/1000 Ethernet port and 1 SFP-based Gigabit Ethernet port, 1 port active)
Each switch supports 2 Cisco modules, 1 Cisco IEM-3000-8FM= module, or 1 Cisco IEM-3000-8TM= module and 1 Cisco IEM-3000-8FM= module
Layer 2 Lan Base image installed

IE-3000-8TC

Industrial Ethernet switch
8 Ethernet 10/100 ports and 2 dual-purpose uplinks (each dual-purpose uplink port has 1 10/100/1000 Ethernet port and 1 SFP-based Gigabit Ethernet port, 1 port active)
Each switch supports 2 Cisco IEM-3000-8TM= modules, 1 Cisco IEM-3000-8FM= module, or 1 Cisco IEM-3000-8TM= module and 1 Cisco IEM-3000-8FM= module
Layer 2 Lan Base image installed

IE-3000-4TC-E

Industrial Ethernet switch
4 Ethernet 10/100 ports and 2 dual-purpose uplinks (each dual-purpose uplink port has 1 10/100/1000 Ethernet port and 1 SFP-based Gigabit Ethernet port, 1 port active)
Each switch supports 2 Cisco modules, 1 Cisco IEM-3000-8FM= module, or 1 Cisco IEM-3000-8TM= module and 1 Cisco IEM-3000-8FM= module
Layer 3 IP Services image installed

IE-3000-8TC-E

Industrial Ethernet switch
8 Ethernet 10/100 ports and 2 dual-purpose uplinks (each dual-purpose uplink port has 1 10/100/1000 Ethernet port and 1 SFP-based Gigabit Ethernet port, 1 port active)
Each switch supports 2 Cisco IEM-3000-8TM= modules, 1 Cisco IEM-3000-8FM= module, or 1 Cisco IEM-3000-8TM= module and 1 Cisco IEM-3000-8FM= module
Layer 3 IP Services image installed

IEM-3000-8TM=

Expansion module for Cisco IE-3000-4TC-E and Cisco IE-3000-8TC switches
8 10/100 TX ports

IEM-3000-8FM=

Expansion module for Cisco IE-3000-4TC-E and Cisco IE-3000-8TC switches
8 100 FX ports

PWR-IE3000-AC=

Expansion power module for Cisco IE-3000-4TC-E and Cisco IE-3000-8TC switches
Supports 110/220VAC and 90-300VDC (base switches support 18VDC-60VDC)

GLC-LX-SM-RGD=

Gigabit Ethernet SFP, LC connector, LH (1Gps single mode) transceiver

GLC-SX-MM-RGD=

Gigabit Ethernet SFP, LC connector, SX (1Gps multimode) transceiver

GLC-ZX-SM-RGD=

Gigabit Ethernet SFP, LC connector, ZX (1Gpbs single mode, 70km) transceiver

GLC-FE-100FX-RGD=

Fast Ethernet SFP, LC connector, FX (100Mb/s multimode) transceiver

GLC-FE-100LX-RGD=

Fast Ethernet SFP, LC connector, LX (100Mb/s single mode) transceiver

CAB-SM-LCSC-1M

1m-fiber single-mode LC-to-SC connectors

CAB-SM-LCSC-5M

5m-fiber single-mode LC-to-SC connectors

CF-IE3000=

IE 3000 Compact Flash

PWR-IE3000-CLP=

IE 3000 Power Transformer Spare connector clip

PWR-IE3000-CNCT=

IE 3000 Power Spare connector

LPNL-IE3000=

IE 3000 Left Panel Spare

RPNL-IE3000=

IE 3000 Right Panel Spare

DINCLP-IE3000=

Din-rail clip 4 pack Spare

BMP-IE3000=

Din-rail clip bumper 4 pack Spare

STK-RACKMNT-2955=

Din-rail adapter for rack mounting



No additional files, specification sheets, guides or documentation found for product.

Flexirent

You can finance this product via Flexirent! For more information regarding flexirent, and to use the flexirent finance calculator, please click here.

The calculator provides an indicative rental cost only. Flexirent prices quoted include GST and stamp duty. Subject to credit approval. To obtain full quote and pre-approval please contact Flexirent Customer Service on 1800 240 102. Rental is payable monthly.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Cisco) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product
Click on a thumbnail to view it below

A list of products relating to this item are shown below. To add one/more to your cart along with the product shown above, simply click on the check box for each item and then click on the "Add to Cart" button.

Current Displayed Product (Preselected for you) IE-3000-8TC LAN Switch - 8-Port 10/100 Switch..

Price
$2,196.15

L7: 2 | TM: 8 | LM: 28 | TY: 413 | T: 4207

Secure Online Shopping

We accept the following with No surcharge on VISA, Mastercard and Paypal!
Techbuy Pty Ltd 2000 - 2017 All rights reserved.
All prices shown on techbuy.com.au are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. Shipping Australia wide to all metro and regional areas (Sydney, Melbourne, Brisbane, Adelaide, Perth) and Internationally. For more information, please see our usage policies.
