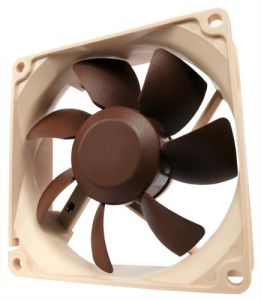

NF-R8 PWM
The classic NF-R8 80mm fan helped to found Noctuas reputation as a top-tier manufacturer of premium quality quiet cooling components and still impresses users with its exquisite quietness and superb performance. The new PWM version features Noctuas novel, custom designed PWM IC for fully automatic control and ultra-low power consumption. Equipped with Noctuas signature SSO bearing and topped off with a 6 years manufacturers warranty, the NF-R8 PWM is a proven premium choice for the highest demands.
Proven NF-R8 Design
Tens of thousands of quiet cooling enthusiasts swear by Noctua’s classic NF-R8. Its impressive quietness, excellent performance and impeccable, time-tested quality made the R8 a default choice for 80mm quiet cooling.
Custom designed PWM IC with SCD
Supporting fully automatic PWM speed control, the NF-R8 PWM uses Noctua’s novel, custom designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.
Low-Noise Adaptor
The NF-R8 PWM is supplied with a Low-Noise Adaptor (L.N.A.) that reduces the maximum fan speed from 1800 to 1300rpm. The L.N.A can be used either to run the fan at a fixed speed of 1300rpm or to cap the maximum speed when using automatic PWM control.
Extensive Cabling Options
The fan’s short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows to connect a second NF-R8 fan to the same PWM fan header for automatic control.
SSO-Bearing
Combining the proven concept of hydrodynamic bearing with an additional magnet that supports the self-stabilisation of the rotor axis, Noctua’s time-tested SSO-Bearing technology has become synonymous with supremely quiet operation and exceptional long-term stability.
6 years manufacturer’s warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-R8 PWM features an MTBF rating of more than 150.000 hours and comes with a full 6 years manufacturer’s warranty.
Specifications:
| Size |
|
80x80x25 mm |
| |
| |
| |
| Connector |
|
4-pin PWM |
| |
| |
| |
| Bearing |
|
SSO |
| |
| |
| |
| Blade Geometry |
|
Raised Blade Design |
| |
| |
| |
| Rotational Speed (+/- 10%) |
|
1800 RPM |
| |
| |
| |
| Rotational Speed with L.N.A. (+/- 10%) |
|
1300 RPM |
| |
| |
| |
| Min. Rotational Speed (PWM) |
|
300 RPM |
| |
| |
| |
| Airflow |
|
53,3 m/h |
| |
| |
| |
| Airflow with L.N.A. |
|
39,4 m/h |
| |
| |
| |
| Acoustical Noise |
|
17,1 dB(A) |
| |
| |
| |
| Acoustical Noise with L.N.A. |
|
10,2 dB(A) |
| |
| |
| |
| Static Pressure |
|
1,41 mm H2O |
| |
| |
| |
| Static Pressure with L.N.A. |
|
0,74 mm H2O |
| |
| |
| |
| Max. Input Power |
|
0,72 W |
| |
| |
| |
| Max. Input Current |
|
0,06 A |
| |
| |
| |
| Voltage |
|
12 V |
| |
| |
| |
| MTBF |
|
> 150.000 h |
| |
| |
| |
| Scope of Delivery |
|
- Low-Noise Adapter (L.N.A.)
- 4-Pin Y-Cable
- 30cm Extension Cable
- 4 Vibration-Compensators
- 4 Fan Screws
|
| |
| |
| |
| Warranty |
|
6 years |
