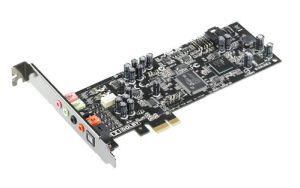

Xonar DGX

PCI Express 5.1-channel gaming audio card

  • Built-in Headphone AMP to power up every sound detail in gaming
  • 3 headphone AMP gain modes for different usage scenarios - VOIP, pro-gaming, exciter
  • Dolby Headphone technology for an immersive 5.1 surround experience
  • ASUS exclusive GX2.5 gaming audio engine for realistic 3D audio effects

Overview

Hear All, Dominate All!

Optimized for immersive gaming action through precision audio


The Xonar DGX audio card combines Dolby Headphone 5.1 high definition surround with the ASUS-exclusive GX 2.5 gaming audio engine and an on-board headphone amplifier. These result in accurate and deep audio that brings every nuance and sound across fully, making the new Xonar DGX 5.1 an ideal audio card for gamers who want to remain totally aware of their play environments.

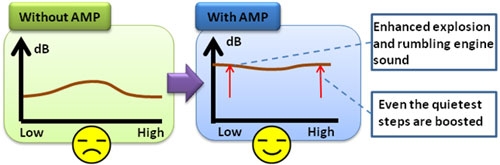

Built-in Headphone AMP

Powers up every sound detail in gaming

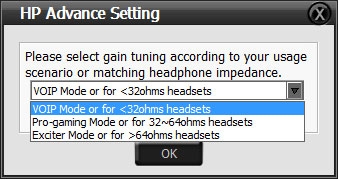

3 headphone Amp gain modes for different usage scenarios

The Xonar DGX uses three modes to cater to different usage scenarios: voice, pro-gaming, and exciter modes. Sound positioning helps gamers become better informed of environments and thus more competitive, especially in multiplayer first person shooters.


VOIP mode: dedicated to chat and headsets, providing clear voice and music enjoyment.
Pro-gaming mode: adds extra sound dynamics in higher frequencies for enhanced audio positioning.
Exciter mode: get immersed in gameplay and embraced by powerful bass with a fuller soundfield.

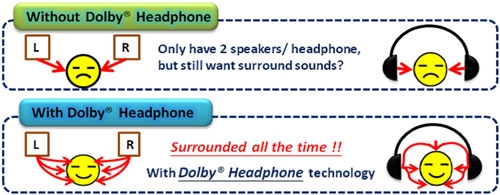

Dolby Headphone technology for an immersive 5.1-channel surround experience

The Xonar DGX 5.1 uses Dolby Headphone technology to level up your stereo headphones to surround sound brilliance.

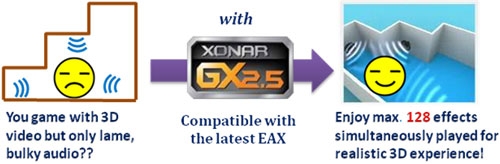

GX 2.5 for realistic 3D gaming audio effects

The exclusive ASUS GX 2.5 gaming audio engine on the Xonar DGX 5.1 allows up to 128 different sound effects simultaneously for a realistic 3D audio environment. It also offers full compatibility with the latest version of EAX.


Automatic jack-sensing front-panel output

The Intel HDA-compatible front-panel header automatically switches output between the back and the front of the case once speakers/headphones are plugged in. Never again will you be bothered by the need to change connection settings manually!


Specifications

Audio Performance Output Signal-to-Noise Ratio (A-Weighted) (Front-out) :
105 dB
Input Signal-to-Noise Ratio (A-Weighted) :
103 dB
Output THD+N at 1kHz (Front-out) :
<0.0025 %(-92 dB)
Input THD+N at 1kHz :
<0.0022 %(-93 dB)
Frequency Response (-3dB, 24bit/96KHz input) :
10 Hz to 48 KHz
Output/Input Full-Scale Voltage :
Bus Compatibility PCI Express
Chipset Audio Processor :C-Media CMI8786 High-Definition Sound Processor (Max. 96KHz/24bit)
Sample Rate and Resolution Analog Playback Sample Rate and Resolution :
44.1K/48K/96KHz @ 16bit/24bit
Analog Recording Sample Rate and Resolution :
44.1K/48K/96KHz @ 16bit/24bit
S/PDIF Digital Output :
44.1K/48K/96KHz @ 16bit/24bit
I/O Ports Analog Output Jack :
3 x 3.5mm RCA jack
Analog Input Jack :
1 x 3.5mm RCA jack
1 x Digital S/PDIF Output :
1 x Front-Panel Header
Other line-level analog input (for CD-IN/TV Tuner) : 4-pin header on the card
Special Features Smart Volume Normalizer
Xear 3D Virtual Speaker Shifter
Magic Voice
Karaoke Functions
FlexBass
10 -band Equalizer
27 Environment Effects
GX2.5 Gaming Audio Engine
VocalFX
Accessories Low -profile Bracket x 1
Driver CD x 1
Quick Start Guide x 1
Dimensions 170.44 x 64.39 mm ( L x W )
