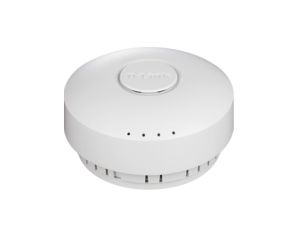

D-Link DWL-6600AP Wireless N Dualband Unified Access Point

Wireless N Dualband Unified Access Point which supports both controller managed (thin) and standalone (fit) modes. Supports simultaneous 2.4 and 5 GHz operation with up to 300Mbps.







The DWL-6600AP Wireless N Dualband Unified Access Point is a best-in-class indoor AP designed specifically for business environments. With high data transmission speeds and a load balancing feature, the DWL-6600AP offers high-quality and reliable wireless service. Versatile and powerful, the DWL-6600AP can be flexibly deployed as a standalone wireless Access Point or as a managed Access Point controlled by a D-Link’s DWC-1000/DWS-3160/DWS-4026 Wireless Controllers/Switches. Businesses can start with standalone mode deployment, then migrate to a centrally managed system anytime later.



The DWL-6600AP delivers reliable wireless performance with maximum wireless signal rates of up to 300 Mbps in either the 2.4 GHz or 5 GHz mode. Support for Wi-Fi Multimedia™ (WMM) Quality of Service features makes the DWL-6600AP an ideal Access Point for audio, video, and voice applications. In addition, the load balancing feature ensures maximum performance and best service quality in the wireless environment.



For small businesses that need to deploy multiple Access Points but lack the resources to tackle the complicated task of network management, the DWL-6600AP’s self-configuring cluster feature offers the ideal solution. When a small number of DWL-6600APs is deployed on the network, they may be configured to form a self-configuring cluster. Once the administrator is through with configuring one Access Point, the same configuration can then be applied to all remaining APs. Up to 16 APs may be used to form a cluster.

Alternatively, the DWL-6600AP can operate in conjunction with D-Link’s DWC-1000/DWS-3160/DWS-4026 Wireless Controller/Switches. In this mode, multiple DWL-6600APs can connect directly or indirectly to one of these switches/controllers to provide unparalleled security and wireless mobility for wireless clients. Each DWL-6600AP will be continually tuned by these switches to provide the optimal RF channels and transmission power for all mobile clients, giving them the best wireless signals in both 2.4 GHz and 5.0 GHz bands and uninterrupted wireless connectivity.



The DWL-6600AP supports the latest standards in Wi-Fi security, including WEP, WPA, WPA2, and 802.1X. In addition, the DWL-6600AP supports up to 16 virtual Access Points (VAP) per radio, for a total of 32 VAPs, which allows the administrator to assign different access privileges to different groups of users. When Station Isolation is enabled, the AP blocks communication between wireless clients on the same radio and VAP. Rogue APs in the network may be easily detected, and the administrator will be immediately notified of any security threat. When used together with D-Link’s Wireless Controller, the security can be raised to a new level.



With an embedded antenna and simple styled exterior, the DWL-6600AP can be installed on a wall or ceiling and blends in with most interior decorations in an office. Enclosed in a plenum-rated chassis, the DWL-6600AP adheres to strict fire codes for placement in air passageways. For easy installation, the DWL-6600AP has integrated 802.3af Power over Ethernet (PoE) support, allowing installation of this device in areas where power outlets are not readily available.



The DWL-6600AP supports AirMagnet™, one of the industry’s most accurate software solutions for planning, designing and troubleshooting wireless networks for optimal performance, security and compliance. AirMagnet™ calculates the ideal quantity, placement and configuration of APs for a successful WLAN deployment. It also allows IT administrators to test and diagnose wireless performance issues. Additionally, a RFID-based location tracking system is supported with Aeroscout™ technology. Aeroscout™ allows tracking of persons, objects and assets by means of RFID tags which have built-in location capabilities. This is especially useful within healthcare, manufacturing and security sectors.



System



Wi-Fi Interface: 802.11a/b/g/n 2.4/5.0 GHz
LAN Interface: 10/10/100 Gigabit Ethernet
Console: RJ-45
Antenna: 2x2 MIMO embedded antenna with 4 external antenna connectors
Power Method: IEEE 802.3af Power Over Ethernet or external power adapter



802.11n: 2.4 to 2.497 GHz and 4.9 to 5.85 GHz
802.11b/g: 2.4 to 2.4835 GHz
802.11a: 5.15 to 5.35 GHz and 5.725 to 5.825 GHz



6.5 to 130 Mbps (20 MHz)
6.5 to 300 Mbps (40 Mbps)

54, 48, 36, 24, 18, 12, 9, and 6 Mbps

11, 5.5, 2, and 1 Mbps



12 Non-Overlapping Channels for US and Canada
8 Non-Overlapping Channels for Japan
19 Non-Overlapping Channels for EU
5 Non-Overlapping Channels for China

11 channels for United States
13 channels for Europe
13 channels for Japan





16 SSID per frequency band, 32 SSID per AP
Station Isolation

WEP, Dynamic WEP, WPA Personal/ Enterprise, WPA2 Personal/ Enterprise

Rogue and Valid AP Classification

MAC Address Filtering, 802.1X



System Management
Web-based User Interface HTTP/ HTTPS
Command Line SNMP, SSH, Telnet





Power Adapter 12 V 1 A
Power over Ethernet 48 V DC +/- 10 %



Enclosure Type: PC or plenum-rated chassis
Enclosure Size (H x D): 77.5 x 156 mm (3.05 x 6.14 inches)
Weight: 0.5 kg (1.1 pounds)
Operating Temperature: 0 to 40 °C (32 to 104 °F)
Operating Humidity: 10% to 90% non-condensing
MTBF: 497,476 hours

Safety: cUL, LVD (EN60950-1), UL2043
EMI/EMC/RF: FCC Class B, CE Class B, C-tick, IC, VCCI, NCC, TELEC, Wi-Fi®
