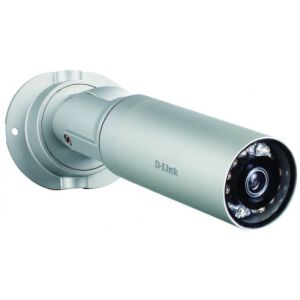

DCS-7010L HD MINI BULLET OUTDOOR NETWORK CAMERA
24/7 surveillance even in the dark. A durable, rugged housing and a powerful IR LED illuminator make it ideal for all-day outdoor surveillance.
- HD resolution (1280 x 720) and up to 1M (1280 x 800)
- H.264, MPEG-4 and Motion JPEG compression
- IP-66 weatherproof housing
- Built-in IR LED illuminator with a 10 meter range for use in dark areas
- 10/100 Fast Ethernet port with PoE
- Micro SD/SDHC Card slot for onboard storage
24/7 HD Surveillance for Your Home or Office
The DCS-7010L is built with a megapixel image sensor to give you high-quality snapshots and video with resolutions up to 720p HD. This gives you sharp, high-resolution snapshots and videos with rich detail. Get a closer look with ePTZ, which lets you zoom in, zoom out, and pan across your camera’s video so you can survey a large area easily.
An infrared cut removable (ICR) filter is also built into the DCS-7010L, which blocks infrared light during the day for improved image quality. At night, it moves out of the way to use all available light for low-light surveillance, and paired with a powerful IR LED illuminator with a 10 meter range, this camera can monitor an area even in complete darkness.
Built for the Outdoors
Specially built for outdoor use, the DCS-7010L has a solid metal IP-66 weatherproof housing that protects it from dirt and rain. A Power over Ethernet (PoE) port allows you to connect the camera to your network and power it through a single cable, simplifying deployment and doing away with the need for a nearby power outlet. A wire-in bracket protects cables from damage and provides a clean installation.
Anywhere Access with mydlink
The HD Mini Bullet Outdoor Network Camera is mydlink-enabled, which means that you can access and configure your camera remotely, no matter where you are. See your camera’s live view through the mydlink website, or download the mydlink mobile app and view your camera directly on your iOS or Android mobile device. Keep an eye on your home while you’re at work, or check on the office when you’re out on the road; mydlink makes it all possible.
If you have a mydlink-enabled Cloud Router, setting up and configuring your DCS-7010L is a snap, thanks to Zero Configuration. Simply connect your camera to its power adapter and then connect your camera to your mydlink-enabled Cloud Router with an Ethernet cable - the camera will automatically be added to your account. mydlink does the hard work for you,allowing even novice users to set up and use their mydlink-enabled cameras immediately.
Built for Versatility
The DCS-7010L comes with a wealth of features that enhance its surveillance capabilities, making it ideal for any situation. A passive infrared (PIR) sensor detects motion near the camera, allowing it to automatically record video and send you a notification when motion is detected. A built-in microphone and speaker allow for 2-way communication, which is ideal for use in entryways.
A Complete, Expandable Surveillance Solution
The DCS-7010L is a self-sufficient surveillance solution, capable of recording snapshots and video to a MicroSD card without requiring a PC or network storage device.
If you want to expand your surveillance options, D-ViewCam management software is also included, giving you the ability to manage up to 32 cameras with a robust set of features, including multi-camera views and automated e-mail alerts to keep you informed of suspicious or unusual activities.
Camera Hardware Profile
1/4” Megapixel progressive CMOS sensor
10 meter IR illumination distance
Minimum illumination: 0 lux with IR LED on
Built-in Infrared-Cut Removable (ICR) Filter module
Audio in and out jacks
10x digital zoom
Focal length: 4.3 mm
Angle of view:
IP-66 compliant weatherproof housing
Configurable image size, quality, frame rate, and bit rate
Time stamp and text overlays
Configurable motion detection windows
Configurable privacy mask zones
Configurable shutter speed, brightness, saturation, contrast, and sharpness
Simultaneous H.264/MPEG-4/MJPEG format compression
H.264/MPEG-4 multicast streaming
JPEG for still images
16:9 - 1280 x 800, 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 up to 30 fps recording
4:3 - 1024 x 768, 800 x 600, 640 x 480, 480 x 360, 320 x 240, 176 x 144 up to 30 fps recording
External Device Interfaces
10/100 BASE-TX Fast Ethernet port
Supports 802.3af PoE
MicroSD/SDHC card slot
NTP client (D-Link)
DDNS client (D-Link)
HTTP / HTTPS
UPnP port forwarding
RTP / RTSP/ RTCP
Administrator and user group protection
HTTP and RTSP digest encryption
System Requirements for Web Interface
Browser: Internet Explorer, Firefox, Chrome
Event notification and uploading of snapshots/video clips via e-mail or FTP
Supports multiple SMTP and FTP servers
Multiple event notifications
Multiple recording methods for easy backup
Take snapshots/video clips and save to local hard drive or NAS via web browser
Configuration interface accessible via web browser
Windows 7/Vista/XP system, Pocket PC, or mobile phone
mydlink mobile app for iOS and Android mobile devices
D-ViewCam™ System Requirements
Operating System: Microsoft Windows 7/Vista/XP
Web Browser: Internet Explorer 7 or higher
Protocol: Standard TCP/IP
D-ViewCam™ Software Functions
Remote management/control of up to 32 cameras
Viewing of up to 32 cameras on one screen
Scheduled motion triggered, or manual recording options
Supports all management functions in web interface
510 g ± 5%
5 V DC, 1.2 A through external power adapter or PoE connection
External Power Adapter Input: 100 to 240 V AC, 50/60 Hz
5.4 watts max.
Operating: -25 to 50 °C (-22 to 122 °F) • Storage: -20 to 70 °C (-4 to 158 °F)
Operating: 20% to 80% non-condensing • Storage: 5% to 95% non-condensing
