PAR5418AL

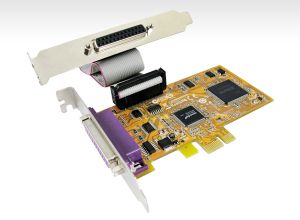

2-port IEEE1284 Parallel PCI Express Low Profile Board
Introduction
SUNIX PAR5418AL PCI Express interface IEEE1284 Parallel communication boards meet the PCI Express Base Specification Revision 1.1 specification. SUNIX PAR5418AL is compatible with PCI Express x1, x2, x4, x8 and x16 lane and PCI/PCI-x Bus, allowing it to be installed in any slim size PC-based system with low profile bracket structure. With SUNIX PAR5418AL IEEE1284 Parallel board, users can expand two parallel ports to their system, allowing them to use parallel devices further. It is ideal for printers, IC programmers, ZIP Drives, or any Parallel devices*. SUNIXPAR5418AL built-in SUNIX high performance and realizable single controller, and as well built with many of SUNIX advanced features and technologies, making it the advanced and high efficient solution for commercial and industrial automation application.
Features
- High reliability SUNIX UL7502AQ Parallel controller on-board.
- Expands two IEEE1284 Parallel ports on system.
- Designed to meet PCI Express Base Specification Revision 1.1.
- Full single-lane (or x1) PCI Express throughput.
- Support IEEE 1284-1994 parallel port standard
- ECP (Enhance Capacity Port) / EPP (Enhance Parallel Port)
- SPP (Standard Parallel Port) / BPP (Bi-direction Parallel Port).
- Auto-switching between ECP/EPP/SPP/BPP modes without configuration.
- Plug-n-Play, I/O address and IRQ assigned by system.
- Low profile bracket design idea for slim or portable PC.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows, Linux, and DOS.
Specifications
General
| Interface |
IEEE1284 |
| Controller |
SUNIX UL7502AQ |
| BUS |
PCI Express Spec 1.1, Single-Lane (x1) |
| IRQ & IO |
Assigned by System |
Parallel Communication
| Interface |
IEEE1284 |
| No. of Port |
2-port |
| FIFO |
16byte Hardware |
| Mode |
SPP / ECP / EPP / BPP |
| Speed |
Maximum 1.8MBps |
| PCB Connector |
DB25 Female & 13 x 2 Pin Header |
Driver Support
| Microsoft Client |
XP/Vista/7 (X86/X64) |
| Microsoft Server |
2000 / 2003 / 2008 (X86/X64) / 2008R2 (X64 )
|
| Microsoft Embedded |
XP Embedded/POS Ready 2009/ Embedded System 2009 |
| Linux |
Linux 2.4.x/2.6.x/3.x |
| DOS |
DOS |
Regulatory Approvals
| Hardware |
CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B
FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS |
| Software |
Microsoft WHQL Windows
Microsoft Client: XP / Vista / 7 / 8 (X86/X64)
Microsoft Server: 2000 / 2003 / 2008 (X86/X64) |
Environment
| Operation Temperature |
0 to 60C (32 to 140F) |
| Operation Humidity |
5 to 95% RH |
| Storage Temperature |
-20 to 85C (-4 to 185F) |
Dimension
| PCB Dimension |
111 x 69 mm |
| Bracket |
Low Profile 80 mm |
| Bracket Space |
2 |
