All stock codes associated to this product
RC344SKN2, RC-344-SKN2, CSCORC344SKN2
Elite 344
(RC-344)

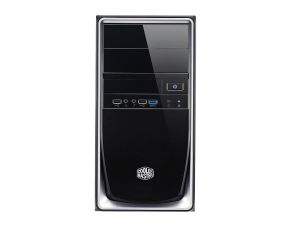

Elite 344 is a compact, but powerful body style Mini Tower with a glossy finish front panel, which is available in three colors, purple, blue and silver. In the Elite 344 can be placed motherboard form factor m-ITX and m-ATX, but this housing design allows the graphics up to 365 mm. To ensure effective Ventilation PC components implemented the ability to install up to 3 fans, one of which is already pre-installed on the front panel. Elite 344 is available in two trim levels of possible I / O panel, as with USB 3.0, and USB 2.0
- Compact design for powerful systems
- In the ventilation system can use up to 3 fans
- Glossy finish front panel
- Various color design front
- Bracket to lock the side wall
- Removable HDD cage
- Ability to establish long video controllers to 365 mm
Specifications:
| Model |
RC-344-KKN1 USB 2.0 Black
RC-344-PKN1 USB 2.0 Purple
RC-344-BKN1 USB 2.0 Blue
RC-344-SKN1 USB 2.0 Silver
RC-344-KKN2 USB 3.0 Black
RC-344-PKN2 USB 3.0 Purple
RC-344-BKN2 USB 3.0 Blue
RC-344-SKN2 USB 3.0 Silver |
| |
| Available colors |
The combination of black and purple
The combination of black and blue
The combination of black and silver |
| |
| Material |
Plastic, steel |
| |
| Dimensions (W x H x D) |
183 x 356.8 x 436 mm |
| |
| Weight |
4.0 kg |
| |
| Motherboard |
Mini-ITX, Micro-ATX |
| |
| 5.25 "bays |
2 internal |
| |
| 3.5 "Drive Bay |
1 external and 5 internal |
| |
| Interface Panel |
RC-344-xxx1:
USB 2.0 x 2, HD Audio
RC-344-xxx2:
USB 3.0 x 1, USB 2.0 x 2, HD Audio |
| |
| Cooling system |
Front: 120/90/80 mm fan x 1 (120mm fan is preinstalled)
Rear: fan 90/80 mm x 1 (optional)
Side: the fan 90/80 mm x 1 (optional) |
| |
| Expansion Slots |
4 |
| |
| Power supply unit |
Standard ATX (optional) |
| |
| The maximum size of devices |
VGA:
250 mm with fixed basket of HDD
363 mm from the dismantled basket HDD.
CPU cooler height:
148 mm |
| |
| EAN code |
Purple (RC-344-PKN1): 4719512038994
Blue (RC-344-BKN1): 4719512039014
Silver (RC-344-SKN1): 4719512039007
Purple (RC-344-PKN2): 4719512038789
Blue (RC-344-BKN2): 4719512038802
Silver (RC-344-SKN2): 4719512038796 |
| |
| UPC code |
(RC-344-PKN1): 884102018374
(RC-344-BKN1): 884102018398
(RC-344-SKN1): 884102018381
(RC-344-PKN2): 884102018169
(RC-344-BKN2): 884102018183
(RC-344-SKN2): 884102018176 |
