Overview

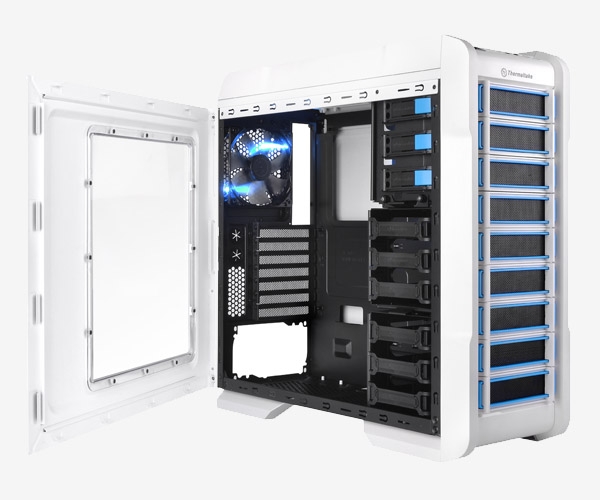

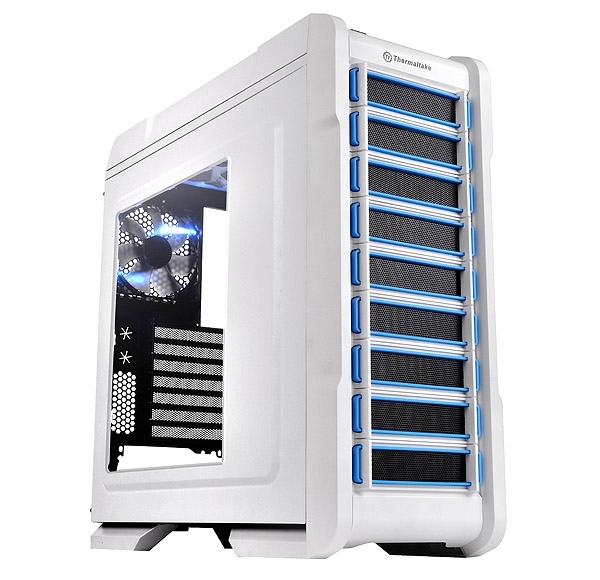

Thermaltake Chaser A31 Snow edition mid-tower chassis
The newest member of Chaser gaming series, sleek and classy white enclosure made for gamers to gear with the latest gaming component, offering not only style and personality but an exceptional combination of cooling, performance and expandability for gaming purists to ensure true enjoyment while in or out of the game.
E-Sport Design
The pristine white metal meshed highlighted with blue fluorescence stripes on the front panel combine with a large transparent side window panel, it hard not to leave your eye off it.

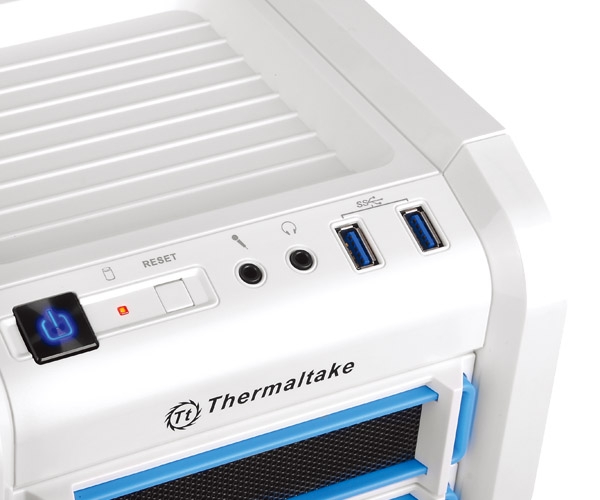

User Friendly Top Panel
Top panel has implemented two of latest data transfer SuperSpeed USB 3.0 ports, a HD microphone and headset jacks, plus a placement platform for users electronic devices such as USB/drives/mobile/MP3.
Smart 2 + 1

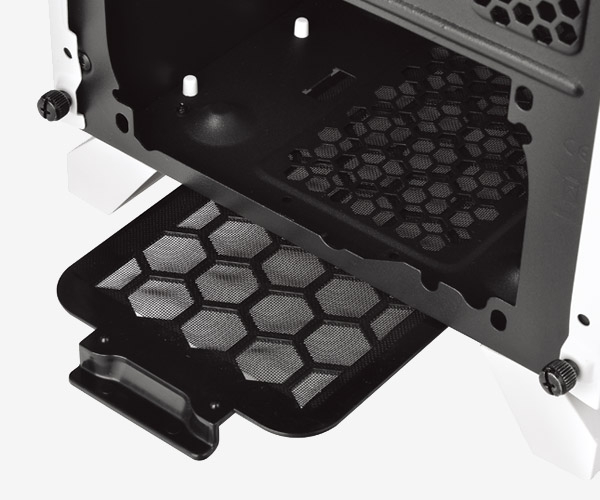

Preinstalled two of 120mm fans including a back blue LED fan to optimize system ventilation. In order to keep the interior dust free, all intake ventilation holes comes with dust protection including a removable dust filter at the bottom of the chassis.
Front Intake
120mm black frame fan
Rear Exhaust
120 mm black fan with Blue LED

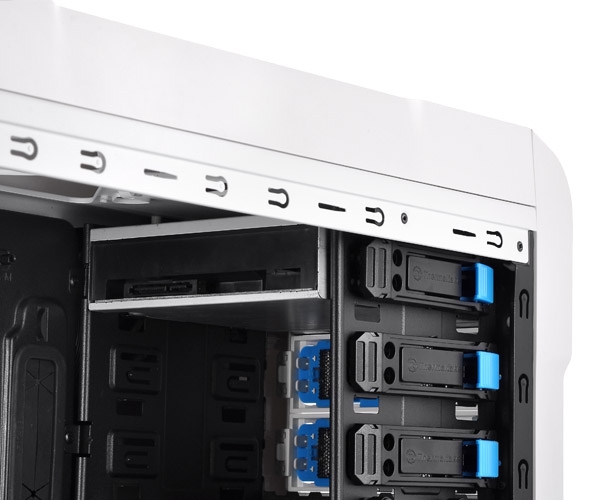

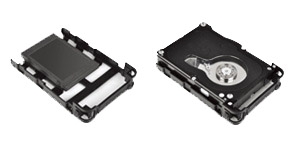

Tool-less Innovative Design
Innovative 5.25 &3.5 tool-free drive bay design minumized the hassels of installing ODD, HDD and SSD devices.
Convenient Support

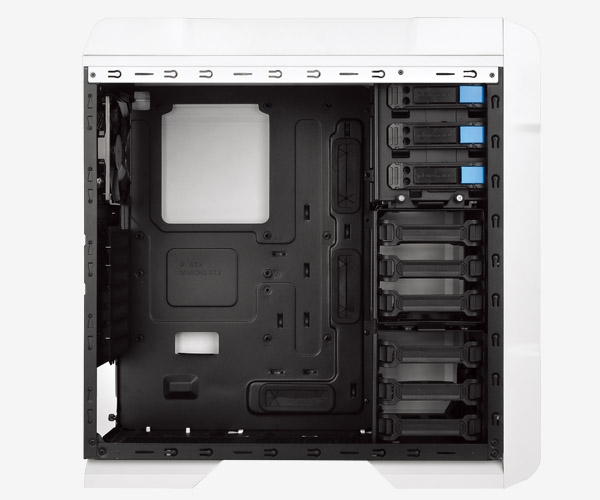

Two retained holes support LCS, three retained holes for advanced cable management ,one large CPU cut-out to ease on CPU cooler installation and removable HDD rack to support extra long graphic cards.

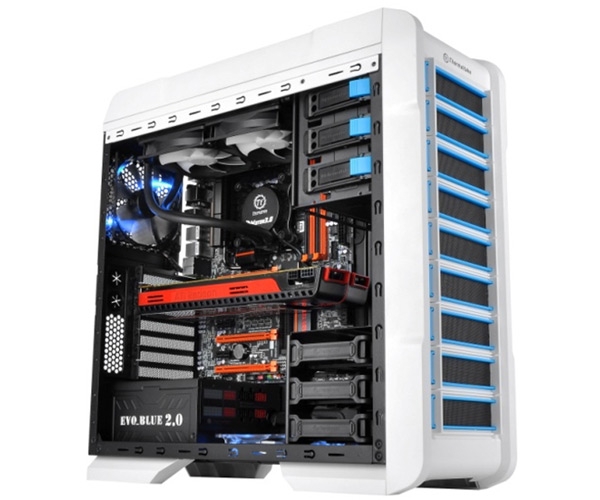

High-end Complete System on the go
Enables user to build up a complete high-end solution with ease with 240mm radiator liquid cooling system and extra long graphic card supported to protect users hardware and increase CPUs overclocking potential, mostly importantly delivers outstanding cooling efficiency in the entire case.
Specifications:
| Case Type |
Mid Tower |
| Dimension (H x W x D) |
501 x 212 x 495mm (19.7 x 8.4 x 19.5 inch) |
| Net Weight |
6.5 kg/14.4 lb |
| Side Panel |
Transparent Window |
| Color |
Exterior &Interior : Black &White |
| Material |
SECC |
| Cooling System |
Front (intake) :
120 x 120 x 25 mm Turbo fan x 1 (1000rpm, 16dBA)
120 x 120 x 25 mm (optional)
Rear (exhaust) :
120 x 120 x 25 mm Blue LED fan (1000rpm,16dBA)
Top (exhaust) : (optional)
120 x 120 x 25 mm fan x 2 or 140 x 140 x 25 mm fan x 2
Bottom (Intake) : (optional)
120 x 120 x 25 mm fan
|
| Drive Bays |
- Accessible : 3 x 5.25 , 1 x 3.5
(Converted from one 5.25 drive bay)
- Hidden : 6 x 3.5 or 2.5 |
| Expansion Slots |
7 |
| Motherboards |
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX) |
| I/O Ports |
USB 3.0 x 2, HD Audio x 1 |
| I/O Ports |
Standard PS2 PSU (optional) |
| I/O Ports |
Supports 1/23/81/4 water tube |
| Other |
CPU cooler height limitation: 160mm
VGA length limitation:
290mm(with HDD rack)
410mm(without HDD rack) |
