All stock codes associated to this product
N12000PRO, BATHN12000P, BATH-N12000-P, 4712505092829
N12000PRO The Ultimate Large Business NAS
- 10GbE aggregation for HA System Redundancy
- Real-time remote replication
- Data security supported by the McAfee antivirus
- Unified Storage - Share data through file and block level with the same appliance
- Acronis Backup Solution - System Disaster Recovery
- Dynamic Volume Expansion through 10GbE
- Massive Expansion with efficient Daisy-chaining
Features
High Availability (System Redundancy) For the first time, your data is completely free of delays in access. Regardless of the situation, HA actively keeps your data on two separate, identical NAS. If one needs maintenance, the other will dutifully rise to the occasion without as much as a blip in service. Whether rain, shine, or Armageddon, your data will always be there.
10GbE ReadyHigh-end data centers often need a level of speed that todays average Internet cannot provide. This Thecus NAS is 10Gb Ethernet ready to satisfy the toughest needs of today and tomorrow.
Link AggregationLink aggregation can sustain multiple network connections and provide redundancy in case one of the links fails. Thecus NAS supports 7 modes which provide Load Balance, Failover, 802.3ad, Balance-XOR, Balance-TLB, and Balance-ALB, Broadcast.
Data GuardData Guard backup solution is the ultimate software as it provides both local and remote parts. Currently, data is backed up across RAID volumes, external USB drives, and eSATA. In addition, Data Guard uses innovative technology to sync data across the network to other NAS and servers. More importantly, Thecus Data Guard is the total backup solution which makes managing NAS user-friendly and convenient.
Data BurnNAS data can now be burned directly to CD, DVD, and Blu-ray discs with Data Burn, this hassle-free module makes burning data to a disk effortless. In addition, burning ISO image file is also supported. Whether youre managing audio, media or essential files; Data Burn copies information fast while significantly reducing waiting time. The process of burning file to disk is now easy and smooth with Data Burn module.
AntivirusThecus innovative hardware helps prevent failures. But sometimes you have to protect the NAS against itself. Adding an antivirus to the already comprehensive software bundle will provide the necessary software protection by scanning the files on your NAS and defending it against possible threats. McAfee is the worlds largest dedicated security technology company and shares Thecus spirit of dedication and quality. By establishing a strong partnership with them, Thecus will allow users the benefit of McAfees powerful software on their NAS entirely for free.
Cloud Backup The private and public clouds meet with Thecus new DropBox, Amazon S3and ElephantDrive cloud backup functionality! Guard your data with RAID at home and an additional level of protection in the Cloud. Just drag and drop files into the folder on your NAS and access them on any computer or mobile device with DropBox, Amazon S3or ElephantDrive.
HDMI Output Make your NAS into the ultimate multimedia hub! The N12000PROs HDMI output allows you to connect your NAS directly to your TV for device management.
USB 3.0 Connectivity The next generation of connectivity is here with speeds 10x faster than USB 2.0. Whether connecting digital cameras and smart phones, backing up large external hard drives, or extending the capacity of your NAS, USB 3.0 will make sure it's done in no time at up to 5 Gbit/s. Backwards compatibility adds the connectivity of a world full of USB 2.0 and USB 1.1 devices to get the best combination of speed and universal access.
Acronis True ImageThecus brings the best to the table with Acroniss advanced backup software. Back up all your data with One-click Protection or pick and choose only your most important files. Acronis sports a slick interface, user-friendly design, and comprehensive features to keep your data safe.
Multiple RAID When it comes to data management, Thecus NAS truly let you have it your way. Create multiple RAID volumes each supporting different RAID modes including RAID 0, 1, 5, 6, 10, 50, 60 and JBOD for your own balance of performance and data protection. Should a hard drive malfunction occur, changing one is simple thanks to online RAID migration and expansion, hot spare, and auto rebuild.
Multiple File SystemsSupport for multiple file systems including EXT3, EXT4, and XFS, gives Thecus NAS flexibility to handle many different types of environments. Users can simultaneously use different file systems across multiple RAID volumes to get the best of each one.
iSCSI Thin-ProvisioningGet the most out of your storage space with the extreme speed of iSCSI and the efficiency of iSCSI thin provisioning. Connect through iSCSI for the fastest data transfer speeds available and make wasted disk space a thing of the past with thin provisioning's flexible storage functionality.
iOS/Android ConnectivityIn the modern world, nothing is as important as reaching your data from anywhere. With ThecusShare and the Thecus Dashboard, you can manage your NAS, and upload to and download/stream from your NAS using an iOS or Android device on the go.
RsyncBacking up your data is very necessary, and everyone has specific needs when it comes to storage. Thecuss Rsync functionality gives users great flexibility with remote backup capability, a flexible scheduler, and the stability of Linux-based transfer.
User QuotaDivide the massive storage of a Thecus NAS among multiple users. Whether there are two users or 100, user quotas make it easy to divvy up and manage disk space.
PCI-e slotThecus NAS products are ready for a number of emerging technologies. Through the built in PCI-e slot, business users can add a 10G Ethernet Adaptor for lighting fast transfer speeds, or a USB 3.0 Adaptor Card to enjoy next-generation connectivity.
Overview
Since Thecus has entered the enterprise level NAS market with the N12000 and the N16000; they proved that the reliability and stability already found within its existing line of NAS could be tailor made to service heavy storage and heavy demand businesses. And to better serve the needs of the diverse enterprise users, the N12000V and N16000V followed which offered a choice between more value and more power. As the technology evolves quickly, Thecus is now proud to announce its new large business solution, the N12000PRO and N16000PRO.
Thecus is dedicated to serve enterprise level needs with the best technology available, said Florence, CEO and General Manager of Thecus Technology. Paired with powerful Intel processors and functions which provide advanced security features, our customers can rest assured that their data is being managed by professional hands.
Better processors for better performance
The new PRO series of 12 and 16-bay NAS comes with the fastest Intel technology ever seen at Thecus. The N16000PRO and the N12000PRO are equipped with the Xeon E3-1275 processor that runs at 3.4 GHz. The quad-core processors are matched by 8GB of DDR3 RAM on both devices to make sure that the biggest commands fly through without an itch. And to make sure the full power of the processors is used, a 10GbE network card can be added to the available PCI-e slot and link aggregation can be used to make sure your network doesnt slow you down.

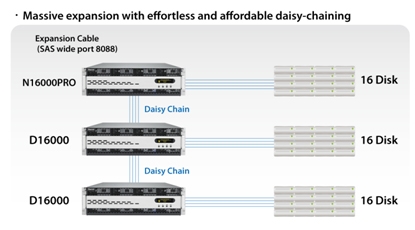

Store big with Volume Expansion and Daisy Chaining
Brought on by the ThecusOS™ 5.0, users can now dynamically stack their NAS units for more capacities in a single volume; simply designate your N16000PRO or N12000PRO as a stack master and implement a 10GbE switch to connect additional target devices. Scalability is the key notion when it boils down to volume expansion. In fact, an amazing eight target devices can be intertwined for a massive volume of multi TB capacity when utilizing 10GbE switch.
Daisy-chaining is the most innovative function to expand storage volume while keeping cost down. Up to four D16000 DAS can be added to your N16000PRO and N12000PRO for an additional 64 bays of storage. As a result, IT enterprises or consumers who utilize large amounts of storage can obtain massive expansion and save cost. Another perk about daisy-chaining is that transfer speeds are fast! Thanks to the SAS cables that are put-to-use to daisy-chain the DAS to the NAS. If paired with volume expansion, daisy-chain can help large businesses expand their storage capacity to up to 2.5 PB!
10GBASE-T High Availability (HA)
The N12000PRO and N16000PRO both run on ThecusOSTM5.0 which supports one of the most important features within the storage industry, High Availability.In short, HA allows users to replicate the data on an active NAS to another standby NAS via 10GbE synchronization. The importance of HA is quickly noticeable, whether there is data corruption or if the active NAS has any HDD problems or downtime, the standby server keeps all vital data saved and is available at all time to take over the active NAS responsibilities.
Total backup solution
Also supported by the N16000PRO and the N12000PRO is the total backup solution, Data Guard. This backup solution is the ultimate feature as it provides both local and remote backup under one roof. Currently, data is backed up across RAID volumes, external USB drives, and eSATA. In addition, Data Guard uses innovative technology to sync data across the network to other NAS, take advantage of real-time remote replication to keep your data safe. More importantly, Thecus® Data Guard is the total backup solution which makes managing NAS user-friendly and convenient.
Additionally, to cover enterprises backup needs, Thecus® joined hands with Acronis and gives five free registered copies of their Backup & Recovery 10 Server for Windows. Acronis offers a wide range of critical features which includes scheduling and hot backups with password protection, advanced compression functionality to help save space, incremental backups to save time and FTP/SFTP remote backup. Windows Server users now have a seamless, practical and secure system disaster recovery solution with the features offer by Acronis Backup & Recovery 10 Server for Windows (OEM).
Antivirus solution
In a multiple users environment, it is easy to spread a virus or malware through the data stored on the NAS. Adding an antivirus to the already comprehensive software bundle will provide the necessary software protection by scanning the files on your NAS and defending it against possible threats. McAfee is the worlds largest dedicated security technology company and shares Thecus spirit of dedication and quality. By establishing a strong partnership with them, Thecus allow users the benefit of McAfees powerful software on their NAS entirely for free.
Conclusion
The N16000PRO and the N12000PRO from Thecus are designed to meet the needs of large businesses with large amount of data and who expect professional performance out of their NAS. With unified storage, the users will have the ability to plug their NAS to an iSCSI network, and at the same time, use your Thecus NAS as an IP Storage pool for both protocols. This way, the NAS can be compatible with any existing or future architecture. Now with faster processors, the N16000PRO and the N12000PRO will deliver quicker response time and handle multitasking with even better ease than before. The N16000PRO and the N12000PRO are a statement that Thecus promises to always provide professional level NAS for all.
Specifications:
Specs
1.Hardware Platform
| Item |
Spec |
| Processor |
Intel Xeon E3-1275 3.4GHz |
| System Memory |
8GB DDR3 SDRAM |
| LAN Interface (PCI-e) |
RJ-45x3: Intel 82574L 10/100/1000 BASE-TX Auto MDI/MDI-X
WOL supported |
| USB Interface |
USB 2.0 host port x6 (front x2, back x4) (Type A)
USB 3.0 host port x2 (back x2) |
| OLED |
Displays system status and information (Multilingual) |
| SAS/SATA controller (HBA), PCI-e (8-lane) |
LSI 2008 HBA card supports 6G SAS/SATA (x8) |
| HDMI Output |
HDMI port (back x1) |
| Audio |
MIC input, Line input, Audio output |
| Disk Interface |
12 x SATA for internal
1 x eSATA for external |
| Power Supply |
Redundant power supply 700W or more (80plus) |
| PCI-e Slots |
8-lane (x3), One is used by SAS HBA
4-lane (x1)
1-lane (x1) used by CU30N (USB 3.0) |
| System Fan |
Hot swappable (x4) |
| Buttons |
Power button (Front, shutdown controlled by user interface)
LCM button (ENT, ESC, UP, DOWN)
System reset button
Locator button |
| RS232 |
1 (For UPS) |
| Environment |
Temperature: 5C to 40C
Humidity: 0 ~ 80 % R.H. (Non-condensing) |
| Chassis |
2U Rack mount |
| Dimensions (HxWxD) |
89 x 440 x 662 (mm) |
2. Software Functions
| RAID |
| RAID Modes |
RAID 0, 1, 5, 6, 10, 50, 60 and JBOD |
| Auto-rebuild |
Supported |
| Hot-swap |
Supported |
| Dedicated Hot Spare |
Supported |
| Global Hot Spare |
Supported |
| RAID Level Migration |
Supported |
| RAID Level Expansion |
Supported |
| RAID Volume Encryption |
AES256bit |
| Disk |
| Power Management |
Available spin-down on idle setting |
| Bad Block Scanning |
Supported |
| SMART Info |
Supported |
| SMART Test |
Supported |
| Disk Roaming |
Supports volume-based roaming to other Thecus NAS |
| Network |
| Configuration |
Fixed IP address, dynamic IP address |
| Transport Protocols |
TCP/IP/AppleTalk |
| File Protocols |
SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP |
| Link Aggregation |
Load balance, Failover, 802.3ad, Balance-XOR, Balance-TLB, Balance-ALB, Broadcast |
| TCP/IP |
IPV6 & IPV4 |
| DDNS |
Supported |
| SSH |
Supported |
| UPnP |
Supported |
| UPnP Port forwarding |
Supported |
| System status |
| System Monitor |
Monitoring CPU, memory, temperature, fan, network utilization and protocols access user count |
| Syslog Management |
Send syslog to assigned location
Act as syslog server to receive log info from other systems |
| Data Access |
| Client OS Support |
Windows XP and after
UNIX/Linux
Mac OS X |
| FTP |
Built-in FTP server with bandwidth control |
| Secure FTP |
Built-in secure FTP server with bandwidth control |
| Download Manager |
BT download (via Transmission module)
NZB download (via NZB module) |
| Printer Server (IPP) |
Supports USB printers
Supports a wide range of IPP printers
Client can manage print tasks (list/delete) via web user interface |
| Data Backup |
| Client Incremental Data Backup |
Acronis True Image (OEM version) |
| Client System Disaster Recovery |
Acronis True Image (OEM version) |
| Client Side Backup Software |
Thecus Backup Utility (Windows/Mac OS X) |
| Data Burn |
Create files to ISO image and burn to optical disc
Create files to ISO image
Read ISO image from optical disc and write to NAS |
| Mac OS X Time Machine |
Supported |
| Data Guard |
Remote Backup/Local Backup |
| Block Level Access |
| iSCSI Target/Initiator |
Supports Microsoft/Mac OS X/Linux initiators and Thecus NAS targets |
| iSCSI Thin Provisioning |
Supported |
| MPIO |
Supported |
| MCS |
Supported |
| Clustering |
Supported |
| SCSI3 Persistent Group Reservation |
Supported |
| Power Management |
| Scheduled Power On/Off |
Supported |
| Volume Management |
| Multiple RAID |
Supported |
| Multiple File System Selectable |
EXT3/EXT4/XFS |
| Multimedia Support |
| iTunes Server |
Supports AAC, MP3 w/ID3 tag and WAV |
| Piczza! Photo Server (via module) |
Supports GIF, JPG (JPEG), BMP and PNG
Supports EXIF display
Supports slide shows |
| Media Server |
Supports uPnP AV streaming protocol (via Twonkymedia module) |
| User Authentication |
| Local User |
Supports built-in user accounts |
| Local Group |
Supports built-in user groups |
| Windows ADS |
Supported |
| LDAP |
Supported |
| Access Guard |
Supports Black & White list/IP Filter |
| Cloud Backup |
| DropBox |
Supported (via module) |
| ElephantDriver |
Supported (via module) |
| Amazon S3 |
Supported |
| File System |
| Type |
Journaling File System |
| Language Support |
Unicode Support |
| Authorization (ACL) |
Read, write, or deny privileges to individual users or groups in folders and sub-folders |
| User Quota |
Supported |
| Administration |
| User Interface |
Web-based user interface supports English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish, Russian, Polish, Portuguese, Turkish and Czech. |
| Utility Program |
MS Windows Setup Wizard
Supports Windows XP and after
Mac OS X Setup Wizard |
| Email Notifications |
Sends system messages via email to the system administrator |
| SNMP Trap |
System information trap out |
| Mobile Applications (iOS/Android) |
| Thecus Dashboard |
Mobile monitoring and administration (via module) |
| T-OnTheGo (iOS) |
Upload, download and stream multimedia |
| Data Security |
| Virus Scan |
Supports McAfee (via module) |
| Capacity Expansion |
| Stackable |
Can extend for 5 additional iSCSI volumes from other Thecus NAS |
| Volume Expansion |
Support dynamic Volume expansion via 10G interface |
| JBOD Expansion |
Support Capacity expansion via Thecus D16000 JBOD device |
| System Redundancy |
| High Availability |
Support system level redundancy |
| Others |
| Dual DOM |
Supported |
| Recycle Bin |
Supported |
| Web Disk |
Supported (via module) |
| Web Server |
Supported (via module) |
| ISO Mount |
Supported |
| IP Cam Surveillance |
Supports up to 10 IP cameras (via module) |
| Auto Module Installation |
Thecus module server automatically provides the latest modules and updates through the user interface. |
| Local Display |
X-Window via HDMI output |
