HPOE-460

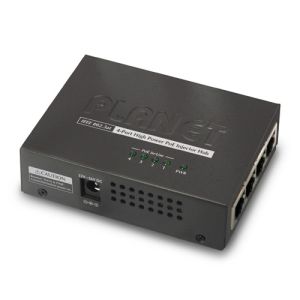

4-Port IEEE 802.3at High Power over Ethernet Injector Hub
Overview
High Power PoE for SOHO PoE Applications
The PLANET HPOE-460 is the next generation 4-Port Gigabit High Power PoE injector Hub, featuring both IEEE 802.3af and High Power IEEE 802.3at PoE standard that combines up to 30 Watts power output and data per port over one CAT 5/5e/6 Ethernet cable. The HPOE-460 is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / Speed Dome IP cameras, multi-channel (802.11a/b/g/n) wireless LAN access points and other network devices in SOHO and SMB network applications.

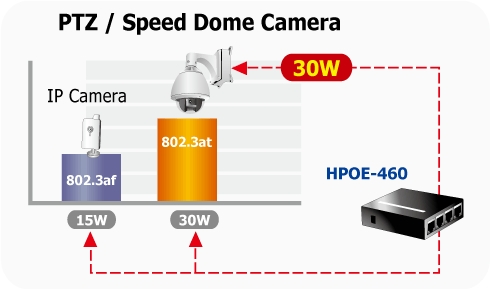

The IEEE 802.3at Power over Ethernet standard is defined to provide each PoE device maximum up to 30 Watts input power which is double amount of PoE power than conventional 802.3af PoE PSE. The IEEE 802.3at PoE standard is an ideal solution to fulfill the high power requirements directly via the RJ-45 Port interface. Compliant with IEEE 802.3at, the HPOE-460 possesses stronger power capability than the existing 802.3af PoE PSE.
Quick and Easy PoE Network Deployment
With 4 10/100/1000Base-T Gigabit Ethernet ports, the HPOE-460 supports 52V DC power for any remote 802.3af / 802.3at powered device (PD) without affecting data transmission performance. Supports PoE power budget of 120 Watts, the HPOE-460 provides sufficient 15.4 / 30.8 Watts PoE power up to 4 remote PD devices. It offers a cost-effective and quick solution to upgrade network system to IEEE 802.3af / IEEE 802.3at Power over Ethernet system without replacing the existing Ethernet Switch. There are 8 RJ-45 STP ports on the front panel of the HPOE-460, in which 4 ports in the right direction function as "Data input" and the other half in left direction function as "PoE (Data and Power) output". The 4 "PoE (Data and Power) output” ports are also the power injectors that transmit DC voltage to the CAT. 5/5e/6 cable and transfer data and power simultaneously between the Injectors and
Splitters.

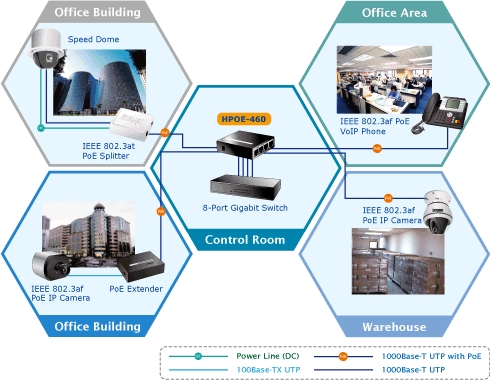

SOHO Gigabit PoE Network Deployment

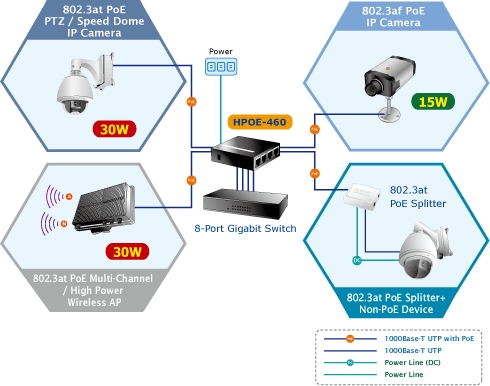

The HPOE-460 provides the easiest way to power your Ethernet devices such as PTZ / Speed Dome IP Camera on the ceiling, the Wireless Access Point installed on the roof of the building and the PoE IP Phones in the office. With 4 10/100/1000Base-T Gigabit Ethernet ports, the HPOE-460 supports full 52V DC power for any remote IEEE 802.3af / 802.3at powered device (PD). Furthermore, the HPOE-460 can be directly connected to any third party IEEE 802.3af / 802.3at compliant devices installed 100 meters away and allow the administrator to centrally control the power system of the networking devices.
Key Features
- 8-Port RJ-45
- 4 -Port 10/100/1000Mbps Data input
- 4 -Port 10/100/1000Mbps Data + Power output
Power over Ethernet
- Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab 10/100/1000Base-T Ethernet standard
- IEEE 802.3at and IEEE 802.3af Power over Ethernet Mid-Span PSE
- Provides DC 52V power over RJ-45 Ethernet cable to IEEE 802.3at / 802.3af compliant devices ( up to 4 PD devices)
- PoE power up to 30.8 Watts (802.3at PoE) / 15.4 Watts (802.3af PoE) for each PoE port
- Remote power feeding up to 100m
- Full power support for each PoE port
- Automatically detect the powered device (PD)
- Circuit protection prevents power interference between ports
- 100~240V AC, 50/60Hz, 2A universal power supply adapter with DC 52V / 2.31A power output
Hardware
- Desktop palm size, wall mountable
- LED indicator power input indication
- FCC Part 15 Class B, CE
- Plug & play
Standard Compliance
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3ab 1000Base-T
- IEEE 802.3at Enhancement Power over Ethernet
- IEEE 802.3af Power over Ethernet
Specifications:
| Hardware |
| Hardware Version |
2 |
| Interface |
Data Input Ports: 4 x RJ-45
Data+Power Output Ports: 4 x RJ-45
|
| Data Rate |
10/100/1000Mbps |
| LED |
System: Power x 1 (Green)
Per PoE Port: PoE ready / in-use x 4 (Green) |
| Network Cable |
10Base-T: 4-Pair UTP Cat. 5 up to 100m (328ft)
100Base-TX: 4-Pair UTP Cat. 5 up to 100m (328ft)
1000Base-T: 4-Pair UTP Cat. 5e, 6, up to 100m (328ft)
EIA/TIA- 568 100-ohm STP (100m, 328ft) |
| Dimension (W x D x H) |
26 x 70 x 97 mm |
| Weight |
220g |
| Power Requirement |
DC 52V~56V |
| Power over Ethernet |
| PoE Power Supply Type |
Mid-Span |
| PoE Power Output |
Per Port DC 52V 30.8 Watts / 15.4 Watts |
| Power Pin Assignment |
4/5(+), 7/8(-) |
| PoE Power Budget |
120 Watts |
| Number of 802.3af PD Class 0, 1, 2, 3 can be powered |
4
|
| Number of 802.3at PD Class 1, 2, 3 can be powered |
4 |
| Number of 802.3at PD Class 0, 4 can be powered |
4 |
| Standards Conformance |
| Standards Compliance |
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3at Enhancement Power over Ethernet
IEEE 802.3af Power over Ethernet |
| Regulation Compliance |
FCC Part 15 Class B, CE |
| Environment |
| Operating Temperature |
0 ~ 50 Degree C |
| Storage Temperature |
-10 ~ 70 Degree C |
| Humidity |
5 ~ 95% (Non-condensing) |
