ATEN VC180 VGA to HDMI Converter with Audio - Superior Video Quality Up To 1080p, WUXGA, LED Indicator, Automatically Detects Video Input Signals

IMG 1 of 3
No Longer Available
Part Number:
219570
(?) Brand:
ATEN
Manuf No:
VC180
Shipping Weight:
0.8 KG (Includes product packaging)
Estimate Shipping
Date Added:
16/4/2013
Details Files Images & Video
All stock codes associated to this product
VC180
VC180

Overview

VGA to HDMI Converter with Audio

The VC180 is a VGA-to-HDMI Converter with Audio that lets you view VGA source data in an HDMI output display with stereo sound quality. It uses dual power sources from the VGA port or a power adapter. The VC180 gets its power supply from the VGA port. However if your source device is not capable of supplying power, use the power adapter to connect the VC180 to a power source. The VC180 is compact, flexible and convenient to install with no software required. Simply make the hardware connections and enjoy the experience.

ROHSWeee

Package Contents

  • 1x VC180 VGA to HDMI Converter with Audio
  • 1x Power Adapter
  • 1x User Instructions

Features:

  • Converts VGA signals to HDMI output
  • Supports analog stereo audio input
  • Superior video quality up to 1080p, WUXGA
  • Screen Position Button screen position settings can be stored for each output resolution
  • Multiplatform support Windows and Mac
  • Supports dual power sources: VGA port or power adapter (in case the VGA port cannot provide sufficient power)
  • Automatically detects video input signals
  • LED indicator
  • HDMI compatible
  • Compact and lightweight
  • No software required eliminates incompatibility and installation issues

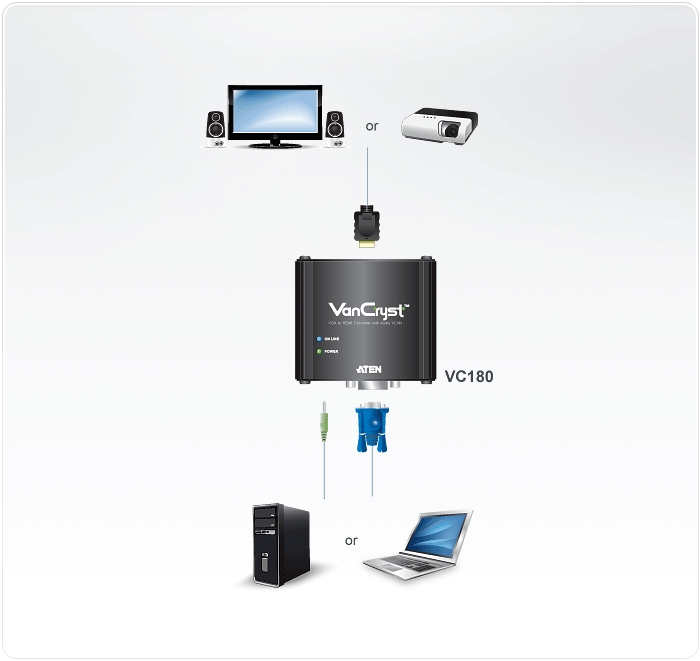

Diagram

VC180 Diagram

Specifications:

Connectors Video In 1 x HDB-15 Female (Blue)
Audio In 1 x 3.5 mm Stereo Audio (Green)
HDMI Out 1 x HDMI Type A Female (Black)
Power 1 x DC Jack
LEDs Power 1 (Green)
On Line 1 (Blue)
Video Up to 1920 x 1200 @ 60 Hz
Power Consumption DC5.3V, 3.2W
Environment Operating Temp.

0-50C
Storage Temp. -20-60C
Humidity 0 - 80% RH, Non-condensing
Physical
Properties		 Housing Metal
Weight 0.15 kg
Dimensions
( L x W x H )		 7.90 x 7.29 x 2.43 cm

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
