All stock codes associated to this product
AF463A, 1736184, 885631744826

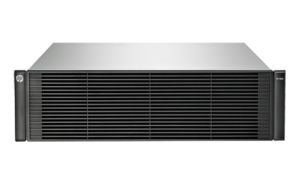

HP R7KVA 4U IEC-32A High Voltage INTL Uninterruptible Power System
(AF463A)
Overview
Does your power protection strategy need to meet the same high standards as your IT hardware? HP Rack-mountable Uninterruptable Power Systems focus on the three critical areas for uninterruptable power in dense data center environments: power density, superior battery management and serviceability. Combining unity rating with more true wattage in smaller form factors, the HP Rack-mountable UPS is highly dense. The On-line On Demand hybrid technology optimizes efficiency and heat output during general operation. All HP Rack-mountable UPSs ship with the free HP Power Protector Software that incorporates Enhanced Battery Management, an exclusive patented technology that doubles battery service life, which lowers your costs. Hot-swappable batteries and intelligent automatic bypass for continuous power improve serviceability.
Features
Power Density, Battery Management and Serviceability
-
- HP Rack-mountable Uninterruptable Power Systems provide up to 12,000 watts (W) of power in a 6-U rack form factor. This equates to 2 KW per U space, which leads the industry in power density.
-
- HP Rack-mountable UPSs offer the ability to automatically correct for over/under voltages protecting valuable equipment
-
- The HP Rack-mountable Uninterruptable Power Systems incorporate Enhanced Battery Management: an exclusive, patented technology that doubles battery service life, extends battery recharge time, and provides advance notice of pending battery failure
-
- HP Rack-mountable Uninterruptable Power Systems Enhanced Battery Management, gives you a lower total cost of ownership by receiving the best in the industry protection for your critical equipment
-
- HP Rack-mountable Uninterruptable Power Systems have a uniquely designed architecture, consisting of separate, hot swappable battery and electronics modules. The built-in intelligent automatic bypass feature offers continuous power to the connected load even if the modules are being replaced.
-
Enhanced System Flexibility with HP Option Cards
-
- Enhanced System Flexibility with HP Option Cards: The UPS R3000 XR models are equipped with a standard serial communications port via an internal slot. This option slot supports two option cards, the Six Port Card and the SNMP / Serial Port Card. These option cards seamlessly integrate into the back of the R3000 XR and provide increased system flexibility.
Specifications
Electrical input connection
(Single) IEC 60309 332P6
Electrical output connections
(6) IEC 60320 C19; (2) IEC 60309 332P6
Communications serial ports
HP UPS Network Module included
Load segments
2
Battery type
Maintenance-free, sealed, valve-regulated lead acid (VRLA)
Hot-swap batteries
Yes
Communications software
HP Power Protector
Operating voltage
220-240V
Dimensions and weight
Minimum dimensions (W x D x H)
43.7 x 73.4 x 17.2 cm
Weight
75 kg
What's included
Warranty
Three-year warranty, with the first year including parts and labor
What's in the box
-
-
- (1) HP UPS R7000 XR
- (1) HP UPS Network Module
- (1) Power Products Documentation CD
- Depth adjustable fixed rack mounting rails
- mounting brackets
- cord retention clips
- (2) PDU Stick (7x C13 each)
