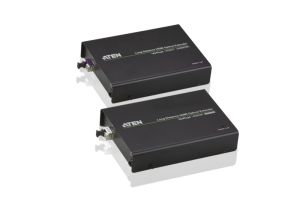

ATEN VE892 VanCryst Universal A/V To HDMI Optical Extender - 20KM Single Mode

IMG 1 of 1
No Longer Available
Part Number:
220849
(?) Brand:
ATEN
Manuf No:
VE892
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Date Added:
10/5/2013
Details Files Finance Images & Video
All stock codes associated to this product
VE892, VE-892

Aten VanCryst Universal A/V to HDMI Optical Extender 20Km Single Mode


HDMI Optical Extender

The VE892 is an Optical HDMI Extender that overcomes the length restriction of standard HDMI cables by using optical fiber to send high definition audio and video signals over large distances.

The VE892 accepts an audio-video stream from a local source and serializes the data to pass it over a single 3.125 Gbps optical link (for resolutions up to 1080p@60Hz at 24-bits)

The VE892 can also extend the IR remote control and transfer RS-232 (up to 115kbps) in both directions, allows you to connect serial devices such as touch screens and barcode scanners.

Package Contents

  • 1x VE892T
  • 1x VE892R
  • 1x IR Transmitter
  • 1x IR Receiver
  • 1x Mounting Kit
  • 2x Power Adapters
  • 1x User Instructions

Features:

  • Extends the transmission range of HDMI, IR and RS-232 signals using one fiber optic cable
  • Very long distance transmission up to 20km
  • HDMI (3D, Deep Color), HDCP compatible signaling rates up to 3.125 Gbits
  • Superior video quality up to 1080p@60Hz
  • Uses one fiber optic cable to connect the local and remote units
  • Supports wide screen formats
  • Built-in 8KV/15KV ESD protection
  • Features RS-232 serial port for connecting peripherals such as touch screens, barcode scanners, etc.
  • Supports bi-directional IR signal transmission, one way at a time
  • Rack-mountable
  • Hot-pluggable

Specifications:

Function VE892T VE892R
Connectors HDMI In 1 x HDMI Type A Female (Black) N/A
HDMI Out N/A 1 x HDMI Type A Female (Black)
Optical In/Out 1 x LC Simplex Connector (SFP) (Bi-directional)
RS-232 1 x Terminal Block, 3 pole
IR 1 x mini stereo jack (Black)
Power 1 x DC Jack (Black)
Fiber Optics Operating distance * 20 km with single mode (SM) fiber
Wavelength 1310/1550 nm for SM
Data rate Single fiber: 1080p/60Hz (24-bits, 3.125G bps )
LEDs Power/Link 1 (Green)
Power Consumption DC5.3V, 5.6W DC5.3V, 5.1W
Environment Operating Temp. 050C
Storage Temp. -2060C
Humidity 080% RH, Non-condensing
Physical
Properties		 Housing Metal
Weight 0.42 kg
Dimensions
(L x W x H)		 14.17 x 10.30 x 3.12 cm

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
