All stock codes associated to this product
PSUSEAP660V2NEW

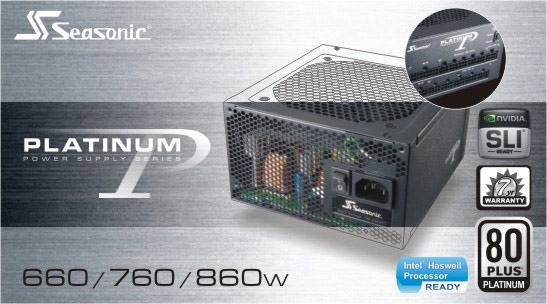

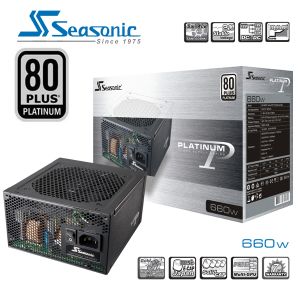

Seasonic 80Plus Platinum Series 660W Power Supply
SKU: PSUSEAP660V2NEW
Seasonic Patented DC Connector Panel with Integrated Voltage Regulation Module
Seasonic’s Patented Fully Modular Design while minimizing voltage drops and impedance, it greatly maximizes efficiency and cooling to enhance overall performance and reliability.

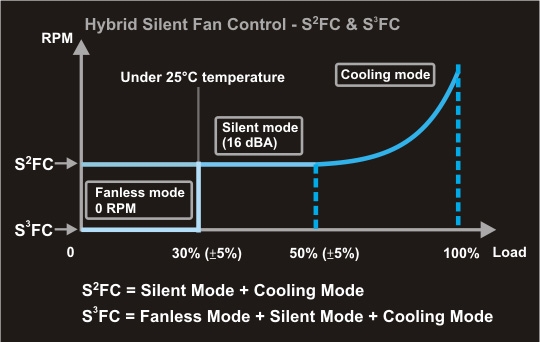

Seasonic Hybrid Silent Fan Control – S2FC and S3FC
The industry first, advanced three-phased thermal control balances between silence and cooling.
The Hybrid Silent Fan Control provides three operational stages: Fanless, Silent, and Cooling Mode. In addition, there is a switch provided to allow for manual selection between the Seasonic S2FC (fan control without Fanless Mode) and the S3FC (fan control including Fanless Mode).*Patent #: TW410250, CN808637, CN1980304. Patent Pending: US, JP
80+ Platinum
The Platinum Series, certified in accordance to the 80PLUS highest standards, offers the newest technology and innovation for performance and energy savings with up to 92% efficiency and a true power factor of greater than 0.9PF
Special Features:
1. 80PLUS Platinum Certified Super High Efficiency
2. 7 Years Warranty
3. DC Connector Panel with Integrated VRM [Voltage Regulator Module]
4. DC to DC Converter Design
5. Active Power Factor Correction [99% PF Typical]
6. Conductive Polymer Aluminum Solid Capacitors
7. Highly Reliable 105C Japanese Aluminum Electrolytic Capacitors
8. Gold Plated High Current Terminals
9. Tight Voltage Regulation [2%]
10. High +12V Output
11. Dual Sided PCB Layout
12. Seasonic Patented Hybrid Silent Fan Control
13. Sanyo Denki San Ace Silent Fan
14. Ultra Ventilation [Honeycomb Structure]
15. Full Modular Cabling Design
16. Multi-GPU Technology Support
17. All-in-One DC Cabling Design
18. Easy Swap Connector
19. Universal AC Input [Full Range]

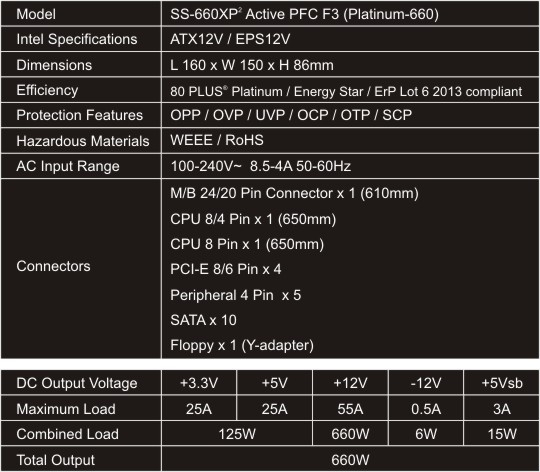

Product Information:
1. AC input & DC output voltages (Full Rang: 100-240V (Max 90-264V), 50/60Hz) Model: Platinum-660 (SS-660XP2 Active PFC F3)
