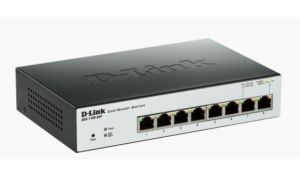

EasySmart 8-Port Gigabit PoE Switch


DGS-1100-08P

Overview

D-Links DGS-1100 Series EasySmart Switches provide an affordable solution for SOHOs, small/medium-sized businesses, as well as enterprise deployments, such as in branch offices that require simple network management. The DGS-1100 Series consists of 5, 8, 16, and 24 10/100/1000Mbps port models. The 5 and 8 port models come in a compact desktop enclosure, while the 16 and 24 port models come in a compact 11 desktop/rackmount enclosure. Two versions of the 8-port model are available with and without Power-over-Ethernet (PoE) support. Compliant with IEEE802.3az Energy Efficient Ethernet, these switches consume less power during idle periods. They also implement D-Link Green features that detect link status and cable length and adjust power usage accordingly. Switch management can be performed through a web management interface or through the SmartConsole Utility. The DGS-1100 Series also supports Layer 2 features such as IGMP Snooping to optimize performance for multicast applications. A fanless design allows for quieter operation and provides a longer product life.

Auto Surveillance VLAN and Bandwidth Control


The DGS-1100 Series supports Auto Surveillance VLAN, which is best suited for video surveillance deployment. Auto Surveillance VLAN is a new, industry leading technology that consolidates data and surveillance video transmission through a DGS-1100 switch, thus sparing businesses the expense of dedicated hardware and facilities. Auto Surveillance VLAN also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data. In addition, with Bandwidth Control, network administrators can reserve bandwidth for important functions that require more bandwidth or high priority.

PoE Support (DGS-1100-08P only)

The DGS-1100-08P delivers Power-over-Ethernet capabilities, simplifying deployments with IP cameras, VoIP phones, wireless access points, and other powered devices. The DGS-1100-08P complies with the 802.3af standard for PoE, and supports a 64W power budget. Using the products management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet.

D-Link Green/Power Saving Performance


Compliant with IEEE802.3az Energy Efficient Ethernet, these switches consume less energy by cutting down on power consumption when the traffic volume is low. By deploying EEE devices, users can cut operating costs and even cut down on necessary cooling equipment, helping small and medium sized businesses stay within their budgets. The DGS-1100 Series also features D-Link Green Technology that helps in automatically saving energy. The switches automatically detect the length of the connected cables and can adjust power usage for shorter cable connections of up to 20 meters. In addition, the switches monitor link status of every port and drastically reduce power consumption when a port is without a link.

Easy to deploy

The DGS-1100 EasySmart Switches support an intuitive SmartConsole utility and a web-based management interface that enables administrators to remotely control their network down to the port level. The SmartConsole allows customers to discover multiple D-Link Smart and EasySmart Switches within the same L2 network segment. With this utility, users do not need to change the IP address of their PC, and this makes initial setup of the Smart Switches quick and easy. Switches within the same L2 network segment that are connected to the users PC are displayed on-screen for instant access. This allows for extensive switch configuration and basic setup of discovered devices, including password changes and firmware upgrades.
The DGS-1100 EasySmart Switches support an intuitive SmartConsole utility and a web-based management interface that enables administrators to remotely control their network down to the port level. The SmartConsole allows customers to discover multiple D-Link Smart and EasySmart Switches within the same L2 network segment. With this utility, users do not need to change the IP address of their PC, and this makes initial setup of the Smart Switches quick and easy. Switches within the same L2 network segment that are connected to the users PC are displayed on-screen for instant access. This allows for extensive switch configuration and basic setup of discovered devices, including password changes and firmware upgrades.

Easy Troubleshooting/Security

Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable Diagnostics is designed for network administrators to quickly examine the quality of the copper cables and also determine the type of cable error. In addition, Static MAC can disable Auto Learning on selected ports and can set static MAC addresses for designated ports, helping administrators limit network access to authorized devices only.

Technical Specifications

General

Port Standard & Functions

IEEE 802.3 compliant
IEEE 802.3u compliant
IEEE 802.3ab compliance
Supports Half/Full-duplex operation at 10/100Mbps
Supports Full-duplex operation at 1000Mbps
Supports Auto-Negotiation for each port
Auto MDI/MDIX
IEEE 802.3x Flow Control support
IEEE 802.3az compliant

Number of Ports

5 (DGS-1100-05)
8 (DGS-1100-08 & DGS-1100-08P)
16 (DGS-1100-16)
24 (DGS-1100-24)

Performance Switching Capacity

10Gbps (DGS-1100-05)
16Gbps (DGS-1100-08 & DGS-1100-08P)
32Gbps (DGS-1100-16)
48Gbps (DGS-1100-24)

Max. Forwarding Rate

7.44 Mpps (DGS-1100-05)
11.9 Mpps (DGS-1100-08 & DGS-1100-08P)
23.81 Mpps (DGS-1100-16)
35.71 Mpps (DGS-1100-24)

MAC Address Table Size

8K Entries

Packet Buffer

1Mbits (DGS-1100-05)
2Mbits (DGS-1100-08 & DGS-1100-08P)
3.5Mbits (DGS-1100-16 & DGS-1100-24)

Forwarding Mode

Store and Forward

Physical & Environmental

Power Input

100 to 240 VAC, 50 to 60 Hz
External Universal Power Supply (DGS-1100-05, DGS-1100-08, DGS-1100-08P)
100 to 240 VAC, 50 to 60 Hz
Internal Universal Power Supply (DGS-1100-16 & DGS-1100-24)

Max. Power Consumption

3.35 Watts (DGS-1100-05)
4.89 Watts (DGS-1100-08)
7.88 Watts (DGS-1100-08P)
11.29 Watts (DGS-1100-16)
14.83 Watts (DGS-1100-24)

Standy Power Consumption

0.99 Watts (DGS-1100-05)
1.23 Watts (DGS-1100-08)
2.00 Watts (DGS-1100-08P)
5.64 Watts (DGS-1100-16)
6.49 Watts (DGS-1100-24)

Fan Quantity

Fanless

Acoustics

0 dBA

Heat Dissipation

11.43 BTU/hr (DGS-1100-05)
16.68 BTU/hr (DGS-1100-08)
268.87 BTU/hr (DGS-1100-08P)
38.52 BTU/hr (DGS-1100-16)
50.60 BTU/hr (DGS-1100-24)

Operating Temperature

32 to 104 F (0 to 40 C) (DGS-1100-05)
32 to 104 F (0 to 40 C) (DGS-1100-08)
32 to 122 F (0 to 50 C) (DGS-1100-08P)
32 to 104 F (0 to 40 C) (DGS-1100-16)
32 to 104 F (0 to 40 C) (DGS-1100-24)

Storage Temperature

14 to 158 F (-10 to 70 C)

Operating Humidity

10% to 95% non-condensing

Storage Humidity

5% to 95% non-condensing

Dimensions (W x D x H)

5.55 x 3.35 x 1.1 (141mm x 85mm x 28mm) (DGS-1100-05)
6.73 x 3.86 x 1.1(171mm x 98 mm x 28mm) (DGS-1100-08)
7.4 x 4.7 x 1.1 (190mmx120mmx28mm) (DGS-1100-08P)
11 x 7.1 x 1.73 (280mm x 180mm x 44 mm) 11-inch Desktop/Rackmount Size, 1U Height (DGS-1100-16 & DGS-1100-24)

Weight

0.7 lbs (0.32kg) (DGS-1100-05)
0.93 lbs (0.42kg) (DGS-1100-08)
1.6lbs (0.71kg) (DGS-1100-08P)
3.3 lbs (1.5kg) (DGS-1100-16)
3.5 lbs (1.6kg) (DGS-1100-24)

Diagnostic LEDs

Power (Per Device)
PoE Max. (DGS-1100-08P Only)
Link/Activity/Speed (Per Port)

Certifications

FCC Class A
CE Class A
VCCI Class A

Safety

UL/cUL
CE LVD

MTBF

532,838 Hours (DGS-1100-05)
503,585 Hours (DGS-1100-08)
708.219 Hours (DGS-1100-08P)
988,205 Hours (DGS-1100-16)
774,990 Hours (DGS-1100-24)

Power over Ethernet (DGS-1100-08P only)

PoE Standard

802.3af

PoE Capable Ports

Ports 1-8

PoE Power Budget

64W

Software Features

VLAN

Port-based VLAN
802.1Q Tagged VLAN
Surveillance VLAN
Voice VLAN
Management VLAN
VLAN Group
Supports 32 static VLAN groups
Max. 4094 VIDs

L2 Features

Flow Control
802.3x Flow Control
- HOL Blocking Prevention
IGMP Snooping
IGMP v1/v2 Snooping
Supports 32 Groups
Loopback Detection
Link Aggregation
1 group, 2-4 ports per group (DGS-1100-05)
2 groups, 2-4 ports per group (DGS-1100-08/08P)
8 groups, 2-4 ports per group (DGS-1100-16/24)
Port Mirroring
One-to-One
Many-to-One (DGS-1100-16/24 only)
Cable Diagnostics
Statistics
Tx Ok
Tx Error
Rx Ok
Rx Error

QoS

802.1p Quality of Service
4 queues per port
Queue Handling
Strict
Weighted Round Robin (WRR)
Bandwidth Control
DGS-1100-05/08/08P Port Based (Ingress/Egress, min. granularity 8 kb/s)
DGS-1100-16/24: Port Based (Ingress/Egress, min. granularity 64 kb/s)

Security

Static MAC Address
Max. 32 entries (DGS-1100-05/08/08P)
Max. 128 entries (DGS-1100-16/24)
Broadcast/Multicast/Unknown Unicast Storm Control

Management

Web-Based GUI (Supports IPv4)
Smart Console Utility

D-Link Green

Power Saving by
Link Status
Cable Length
Energy Efficient Ethernet (IEEE 802.3az)
RoHS Compliant

RFC Standard List
RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 951 BootP Client
RFC 1542 BootP/DHCP client
RFC 1945 HTTP/1.0
RFC 2647 802.1p

Warranty

Warranty
Limited Lifetime

Ordering Information

DGS-1100-05 EasySmart 5-Port Gigabit Switch
DGS-1100-08 EasySmart 8-Port Gigabit Switch
DGS-1100-08P EasySmart 8-Port Gigabit PoE Switch
DGS-1100-16 EasySmart 16-Port Gigabit Switch
DGS-1100-24 EasySmart 24-Port Gigabit Switch
