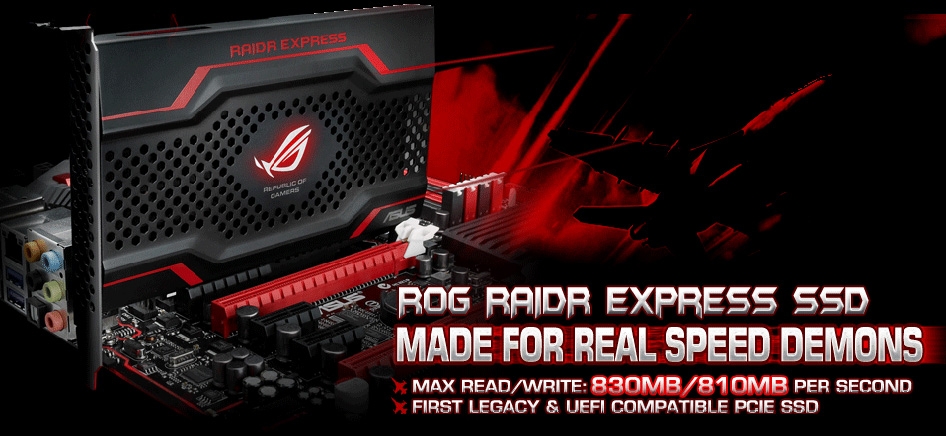

RAIDR Express PCIe SSD
World's first PCIe SSD compatible with both legacy and UEFI BIOS
- PCIe 2.0 x2; 240GB; Dual LSI SandForce SF-2281 controllers; Toshiba 19nm 16k page size Sync MLC NAND Flash; sequential read/write speed 830/810MB/s; Up to 100,000 4K read/write IOPS*
- DuoMode: First legacy and UEFI BIOS-compatible PCIe SSD
- Driver-free design with complete TRIM support
- RAMDisk: Double up on speed with RAM and SSD
- SSD TweakIt: Take control for faster and longer-lasting storage
- Secure Erase: Back to brand-new performance
The RAIDR Express advantages
- The only PCIe-based SSD with double-sided metal shielding and a beautiful red and black design
- Tons of exclusive ROG features for maintaining the high speed you expect, while extending the drives life
- Works right away no drivers required!
- Full TRIM command support to keep RAIDR Express running at top speed while extending the drives life
- Amazing 620,000 hours mean time between failure (MTBF), for year after year of trouble-free use
- Tested extensively with all popular operating systems and the very latest motherboards/chipsets to ensure the widest compatibility
Key Specifications

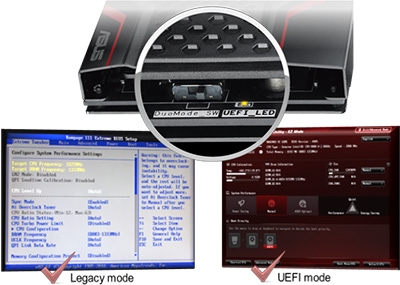

DuoMode
First legacy and UEFI BIOS-compatible PCIe SSD
RAIDR Express is the worlds first and only PCIe-based SSD the features two BIOS chips and an onboard hardware flip switch, letting you alternate between legacy and UEFI modes, ensuring the best compatibility.
In legacy mode, the RAIDR Express can be used on older motherboards those with traditional (non-UEFI) BIOS. Flip to UEFI mode, and you can significantly boost the startup time of your PC. You get the flexibility of choosing which mode is right for you, and make the best of both.
Legacy boot
BIOS checks and verifies all components, which requires longer boot times

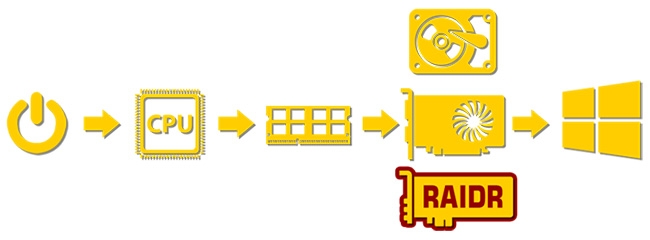

UEFI BIOS boot
BIOS activates all devices simultaneously, achieving faster boot times
Driver-free design with complete TRIM support
With an Advanced Host Controller Interface (AHCI), RAIDR Express doesnt require any drivers so you can experience the incredible speed benefits from the moment you plug it in. RAIDR Express also features support for TRIM command from within the operating system support for which few other PCIe-based SSDs can provide. This keeps RAIDR Express running at top speed while extending the drives life.

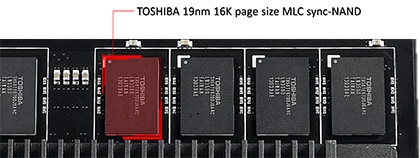

Toshiba 19nm 16K page sync-NAND
RAIDR Express features new 16K page size MLC (multi-level-cell) sync-NAND flash, which provides consistent read and write performance with doubled page size and double the data per transfer. This cements RAIDR Express as the speed leader in its segment.

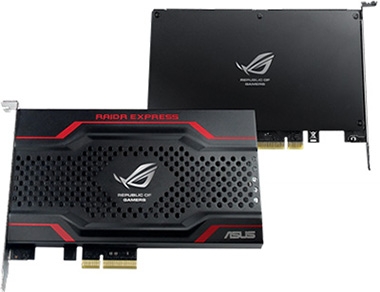

Double-sided metal shield with gorgeous ROG design
RAIDR Express has double-sided metal shielding to provide:
- Electromagnetic interference protection
- Better heat dissipation

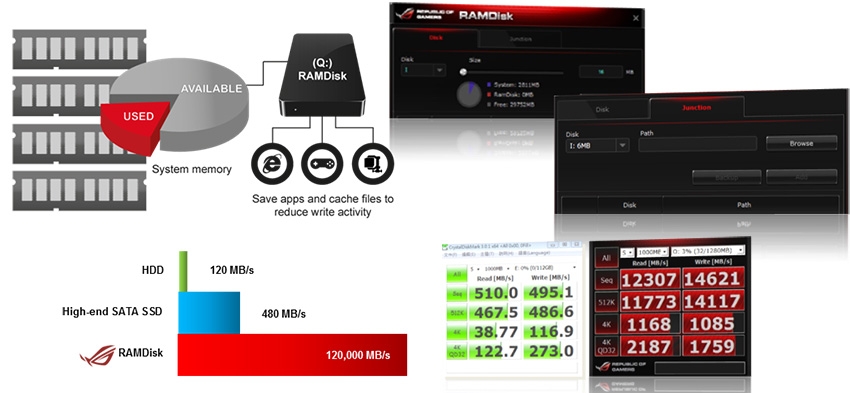

RAMDisk
Double up on speed with RAM and SSD
This brilliant feature allows you to use up to 80% of your computer’s available memory as a high-speed virtual drive to accelerate the loading of favorite apps and games – to over 12,000MB/s in our tests!
ROG RAMDisk uses what are known as ‘junction points’ so there’s no need to re-install your software. Just choose an application and RAMDisk will ensure that your PC will directly access its files and data using the extreme speed of the computer’s own RAM.
But that’s just one great feature of RAMDisk. Better still, RAMDisk extends the life of your SSD because it reduces unnecessary read-write cycles. RAMDisk even backs itself up to the main system drive when you shut down your PC and restores itself automatically the next time you power up, so it’s ready to roll as soon as you are — it’s all speed and no hassle!

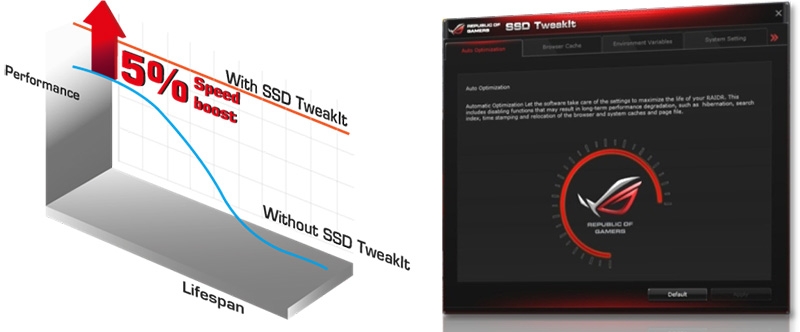

SSD TweakIt
Take control for faster and longer-lasting storage
SSD TweakIt is designed to provide the easiest way to get top-notch performance and ultra-long durability. With a single click, you can enjoy these advantages:
- Auto-relocate repetitive write activities to RAMDisk for even faster browsing while keeping RAIDR Express at peak performance for much longer
- Apply a preset profile that automatically refines the processor (CPU) settings to achieve up to 5% speed boost

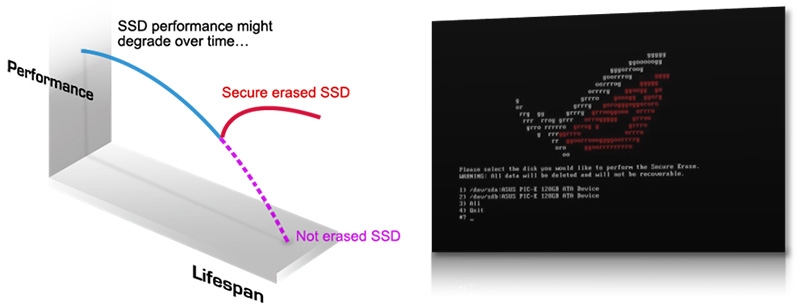

Secure Erase
Back to brand-new performance
One simple boot from the included utility disc totally refreshes RAIDR Express to regain its original performance like it just came out of the box the day you bought it. This is done by securely and completely removing all data from RAIDR Express in Linux, so you can also refresh your RAIDR Express even its the system drive. Now, you dont need to worry about the performance degradation due to accumulated data and frequent writing.

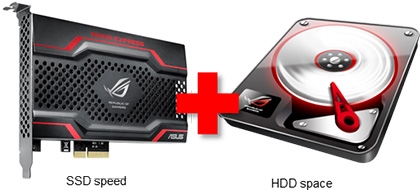

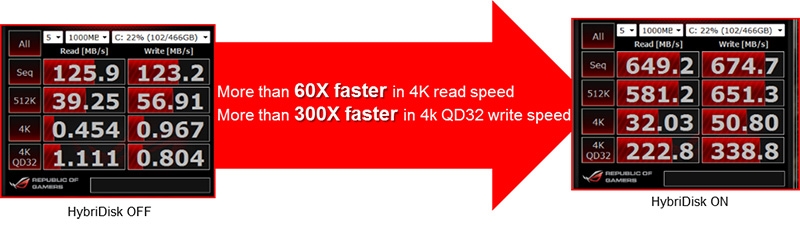

ROG HybriDisk
Enjoy both SSD speed and HDD space
ROG HybriDisk supercharges you with hybrid storage powered by SSD caching, so you can make your hard disk drive (HDD) go faster than SATA! It works with your HDD (up to 4TB) so you can enjoy data transfers that effectively smash SATA-based SSD speed limits (600MB/s), so now you can enjoy hard drive capacities with SSD speeds – the best of both worlds.
ROG CrystalDiskMark
Sharp ROG-themed SSD benchmark
ROG-styled storage benchmarking tool accurately shows you exactly how fast all your drives perform.
Kaspersky® Anti-Virus 2013
Essential antivirus protection, performance, and peace of mind
Cloud-based functionality and powerful security for your PC. Kaspersky® Anti-Virus 2013 protects against today’s threats with extra-effective defenses while being totally user-friendly.
Specifications:
Interface
PCIe 2.0 x 2
Capacities
240GB
Controller
Dual LSI SandForce SF-2281 controllers
Flash Memory
Toshiba 19nm 16K Page Size MLC Sync-NAND Flash
Performance
Sequential Read Speed830MB/s
Sequential Write Speed810MB/s
4K Read IOPS Up to 100,000 IOPS
4K Write IOPS Up to 100,000 IOPS
Latency<0.1ms
* Actual performance may vary depending on applications, usage, environment and other factors. Test results based on the ATTO Disk Benchmark and Iometer
Dimensions
157(L)*120(W)*20(H)
Weight
243g
Temperature
0-70
OS Support
Windows7
Windows8
Reliability
MTBF 620,000 Hours
Data Encryption 128bit AES
Data Reliability
Up to 55 bits correctable per 512-byte sector (BCH)
"Unrecoverable read errors: Less than 1 sector per 1016bits read ECC on allinternal memory; full end-to-end CRC protection; RAISE"
Features
UEFI boot compliant Supported
Windows8 Secure Boot Supported
AHCI Compliant Driver-free installation
Bootable Supported
Exclusive Features
RAMDisk
SSD TweakIt
ROG HybriDisk
ROG CrystalDiskMark
Secure Erase\Firmware Update
Kaspersky Anti-Virus 2013
