Wireless 5X2 HD Matrix

GWHDMS52

Description

Wireless HDMI

IOGEAR's GWHDMS52 Wireless 5 x 2 HD Matrix is the first to send Full uncompressed HD 1080p, connects up to 5 source devices and allow you to switch and independently select any source between 2 HDTVs.

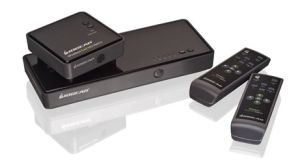

The solution consists of a Wireless Transmitter and a Wireless Receiver with connections for HDMI and Component, along with a loop through (local port) for an advanced 2 HDTV set ups. It also includes USB connectivity for the addition of a computer / laptop giving you wireless control from the second room.

Wireless Matrix

The Wireless 5 x 2 HD Matrix is setting a new standard in wireless connectivity, flexibility, convenience, and decor.
The wireless matrix feature is the biggest breakthrough in wireless AV solutions today. This means you can watch cable TV in the living room while the bedroom independently selects a Blu-ray movie to watch wirelessly at the same time. Its capable of streaming Full HD 1080p with support for 3D content and digital audio up to 100 feet* away within the home or desired set up.

Infrared (IR)

Supports IR pass-through-Enables wireless control of your source devices and helps consolidate your HD A/V electronics, such as a DVD / Blu-ray players, DVR / Cable boxes, Game consoles and computers to design your own custom entertainment space.

Home Design

Take re-decorating, retrofiting and designing to a new level of creativity and convenience. Ever wanted to set up another HDTV in the Bedroom, Kitchen, Den or patio? Now you can have the wireless HDTV, if you have power you can have HDTV. Set up the HDTV in the back patio for the big sporting event while the kids play video games or watch a blu-ray movie in the living room!

The Wireless 5 x 2 HD Matrix does not require a line-of-sight placement, keeping home theater devices neatly out of sight, which enables a quick, simple, and flexible wireless HD or 3D audio / video solution.

Features

  • Wireless fully uncompressed HD video up to 100 feet through standard home walls for 2 HDTV's
  • Built in 5 x 2 Matrix - Allows you to switch and independently select any of 5 sources between 2 HDTVs
    • Watch cable TV in the living room while the bedroom watches a Blu-ray movie wirelessly at the same time
  • Supports 2 HDTVs - Delivers separate content to 2 locations at the same time:
    • Living room HDTV can connect to transmitters loop-through (local) port
    • Bedroom HDTV can receive content from wireless receiver
  • Connect and wirelessly transmit content from your Blu-ray / DVD player, DVR / Cable box, Game console, Computer / laptop and VCR
  • Supports Full uncompressed HD 1080p, 3D content, and 5.1 channel digital audio
  • Video Resolutions:
    • 480p, 720p, 1080i, 1080p and 3D (24 / 30 / 60fps)
  • HDMI Inputs / Outputs :
    • Transmitter:
    • 4 x HDMI in
    • 1 x Component in
    • 1 x USB in
    • 1 x HDMI out (local port)
    • Receiver
    • 1 x HDMI output
    • 1 x USB out
  • USB port on Transmitter and Receiver enable a wireless keyboard connectivity to control the attached computer / laptop
  • Home Theater Projectors
    • Easy Projector Set-up; No more running long wires
  • Keep home theater electronic devices neatly out of sight
  • Based on WHDI Technology
  • HDCP 2.0 Compliant
  • Built-in Infrared (IR) pass-through with 2 IR blaster cables allows user control over their source devices that are hidden away in a different location
  • Includes 2 remotes for convenient switching in both locations No software or driver installation needed

Distances may vary depending on environment; solid objects such as steel, concrete and brick may view shorter distances or loss of signal

Warranty: 1-YEAR

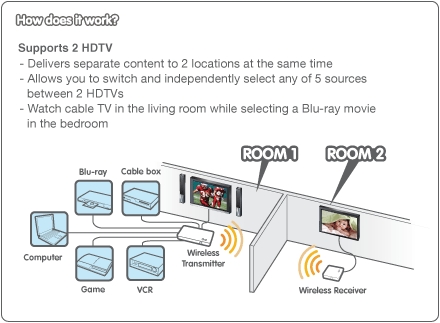

Function Diagram


Requirements

Display

  • 2 HDTVs
  • HDMI input per HDTV

Media Source

  • 4 HDMI output
  • 1 Component output

Cables

  • HDMI Cables (1 included)
  • Component Cable (not included)
  • RCA Audio Cable (L&R, not included)

Package Content

  • 1 x Wireless Transmitter
  • 1 x Wireless Receiver
  • 2 x Remote Controls w/ batteries
  • 1 x Component Adapter Cable
  • 1 x IR Blaster Cable (Transmitter)
  • 1 x IR Sensor Extender Cable (Receiver)
  • 2 x Power Adapter
  • 1 x HDMI Cable
  • 1 x User's Guide
  • 1 x Warranty Card

WEEE Compliance RoHS Compliance

Specifications

UPC: 881317510983

Function GWHDMS52
Connectors
Video Input 4 x HDMI, 1 x Component
Video Output 1 x HDMI Loop Through (Transmitter), 1 x HDMI (Receiver)
Power 1 x Power Jack (Transmitter and Receiver)
Video Resolution 480p, 576p, 720p, 1080i, 1080p (24/30/60fps) and 3D Support
Video Streaming <1ms Latency
Audio
Audio Output Digital 6Mbps AC3 and DTS, Analog 48KHz and 24-bit per sample
Frequency 4.9 ~ 5.9GHz (Includes non-DFS and DFS Frequency Bands)
Antenna Type High Performance Internal
Range Maximum video transmission range is 100ft (30m)
Power Switch 1 x Port Switching Pushbutton (Transmitter and Receiver)
Remote Module Connectors
Unit to Unit 2,5mm Blaster Extender (Transmitter), Sensor Extender (Receiver)
LEDs
Port ID 5 x Blue LEDs on Transmitter; 2 x Blue LEDs on Receiver
Power On Blue/Red LED (Transmitter and Receiver)
Link LED (Transmitter and Receiver)
Power
Voltage 100~240v - 5V DC Jack (Transmitter), 5V DC mini USB (Receiver)
Amps 2A
Operating Temperature 0 ~ 40C
Housing
Case Plastic
Cable Connections
Input 1 x Mini USB (female)
Output 1 x USB (Female) Type A
Security 128 bit AES encryption
Dimensions GWHDMS52
Unit Dimensions
Height 1 1/8" (2.86cm)
Depth 3 3/4" (9.53cm)
Length 9 1/8" (23.18cm)
Inner Pack
Width 11 1/4" 28.4cm
Height 9 1/4" 23.5cm
Depth 10 5/8" 26.8cm
Inner Pack Qty. 3
Unit Package Dimensions
Width 10 13/16" 27.5cm
Height 8 9/16" 22cm
Depth 3 3/8" 8.5cm
Master Carton
Width 22 1/8" 56.7cm
Height 19 3/4" 50.5cm
Depth 12 1/4" 30.5cm
Master Carton Qty. 12
Weight
Master Carton Wt. 38.5lbs. 17.46kgs.
Unit Pack Wt. 2.95lbs. 1.34kgs.
Unit Wt. 2.05lbs. 0.93kgs.
