SE50S37/480G

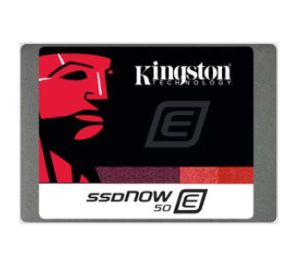

SSDNow E50
Increase IOPs without sacrificing data integrity.
Kingston’s SSDNow E50 features high IOPs and bandwidth performance to solve I/O latencies and bottlenecks and increase your server’s performance. E50’s 6Gbps SATA interface provides max bandwidth over 500MB/s read/ write. This drive is built with MLC Sync NAND and is rated at 60,000 read/write IOPS versus an average IOPS rating of 300 for a 15K SAS HDD.
E50’s advanced data integrity protection gives you peace of mind by ensuring a longer life for your data and your drive. DuraWrite™ extends the life of the SSD by efficiently reducing the Flash writes without sacrificing data integrity. RAISE™ technology provides superior protection against uncorrectable errors, while overprovisioning and advanced wear-leveling
ensure consistent performance and wear over the life of the drive.
SSDNow E50 also features intelligent power failure protection to prevent data loss in case of a power failure. It’s backed by a three-year warranty, free technical support and legendary Kingston® reliability.
- High IOPS and bandwidth performance
- Advanced data integrity protection
- Intelligent power failure protection
FEATURES/BENEFITS
Performance — higher IOPS for multi-user environments
Endurance — Data Integrity Protection featuring DuraClass technology
Dependable — RAISE for advanced data reliability
Durable — DuraWrite optimizes writes to extend endurance
Warranty/support — three-year warranty with free technical support
SPECIFICATIONS
Form factor 2.5"
Interface SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s)
Capacities 100GB, 240GB, 480GB
Controller SandForce-SF2581
Encryption AES 128bit
Sequential Read/Write
SATA Rev. 3.0
100GB – up to 550/530MB/s
240GB – up to 550/530MB/s
480GB – up to 530/500MB/s
Maximum 4k Read/Write
100GB — 85,000/ 80,000 IOPS
240GB — 85,000/ 73,000 IOPS
480GB — 74,000/ 36,000 IOPS
Random 4k Read/Write
100GB — 27,000/ 82,000 IOPS
240GB — 48,000/ 72,000 IOPS
480GB — 53,000/ 32,000 IOPS
Additional Features
Enterprise SMART Tools
Total Bytes Written (TBW)
100GB – 310TB 3 DWPD4
240GB – 739TB 3 DWPD4
480GB – 1747TB 3 DWPD4
Power Consumption
1.25 W Idle / 1.27 W Avg / 1.43 W (MAX) Read / 2.74 W (MAX) Write
Storage temperatures
-40°C ~ 85°C
Operating temperatures
0°C ~ 70°C
Dimensions
69.9mm x 100mm x 7mm
Weight
92.34g
Vibration operating
2.17G Peak (7–800Hz)
Vibration non-operating
20G Peak (10–2000Hz)
MTBF
1 million hours
Warranty/support
three-year warranty with free technical support
