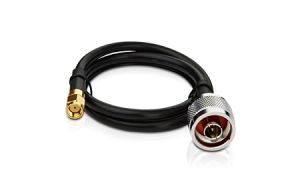

ATEN TL-ANT200PT N-Type Male to RP-SMA Female Pigtail Cable - 0.5M

IMG 1 of 1
No Longer Available
Part Number:
227782
(?) Brand:
ATEN
Manuf No:
TL-ANT200PT
TLANT200PT
Shipping Weight:
0.3 KG (Includes product packaging)
Estimate Shipping
Date Added:
18/9/2013
Details Files Images & Video
All stock codes associated to this product
TLANT200PT, TL-ANT200PT, NWTLANT200PT, NWTL-ANT200PT, 6935364052249
0.5M LMR200 N-Type Male to RP-SMA Female Pigtail Cable

TL-ANT200PT

Highlights:

  • Compliant with 2.4GHz 802.11 n/g/b & 5GHz 802.11 n/a
  • Weatherproof cable-designed for outdoor exposure
  • Manufactured using 0.5m Low Loss LMR-200 cable that provides better performance in 5GHz & 2.4GHz applications
  • N-Type Male to RP-SMA Female connector, applicable in most of connections between wireless AP/Router and antenna

Overview

What This Product Does

The TL-ANT200PT pigtail cable is ideal for flexible connection between outdoor cable/antenna and wireless access point/router. It is very easy to use, no configuration or software installation required.

Features

  • Compliant with 2.4GHz 802.11 n/g/b & 5GHz 802.11 n/a
  • Weatherproof cable-designed for outdoor exposure
  • Manufactured using 0.5m Low Loss LMR-200 cable that provides better performance in 5GHz & 2.4GHz applications
  • N-Type Male to RP-SMA Female connector, applicable in most of connections between wireless AP/Router and antenna

Specifications

ANTENNA

Frequency DC~6GHz
Impedance 50 Nominal
Insertion Loss 2GHz 0.7dB
2.5GHz 0.8dB
3GHz 1.0dB
5GHz 1.2dB
5.5GHz 1.3dB
6.0GHz 1.4dB
VSWR(MAX.) 0~3GHz: 1.5:1 Max
3~6GHz: 1.6:1 Max
Connector Type N-Type Male to RP-SMA Female
Extended Cable/Length LMR-200 Cable
0.5m(1.64ft)
Operating Temp. -10~+60
Storage Temp. -40~+80

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
