Sapphire USB 3.0/ Optical Drive Enclosure

Overview

This new Addonics Sapphire /USB 3.0 drive enclosure is a compact size drive enclosure designed to support full height SATA optical drive or 5.25" storage device such as the Mobile Rack. Made with a rugged brushed anodized aluminum body, the Sapphire /USB 3.0 drive enclosure is built for durability and to provide effective heat dissipation in various operation environment. Come with choice of high-speed USB 3.0 or interface, this Sapphire enclosure is great for building your own custom external optical drive or drive cartridge system for hard drive or SSD.

Since storage device connected to port appears as an internal drive to the OS, the interface with an optical drive or hard drive can be used to boot up a computer, a great solution for system rescue operation or computer sharing or applications that need an external boot drive.

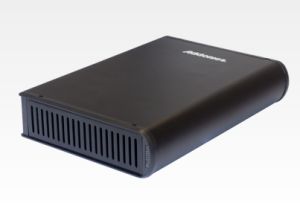

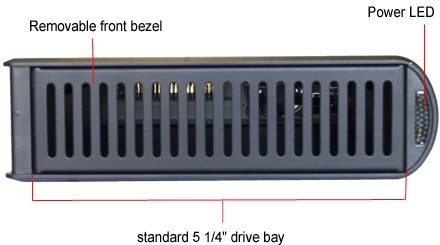

Front view

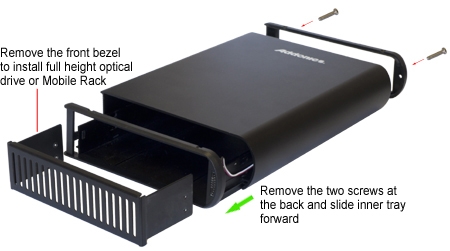

Illustration on disassembling the enclosure to slide out the inner tray for drive installation

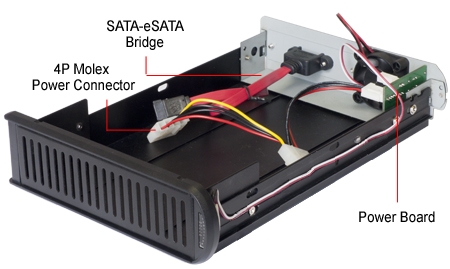

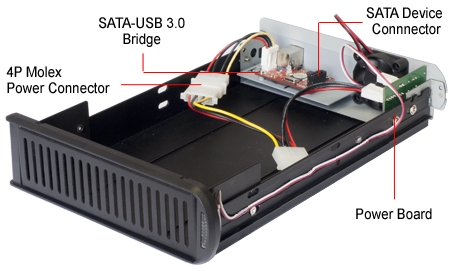

inner tray for Model: SESCS, SESSIU3CS or SESU3CS

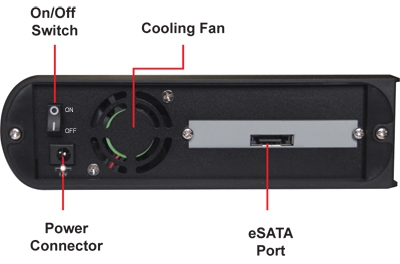

Rear View

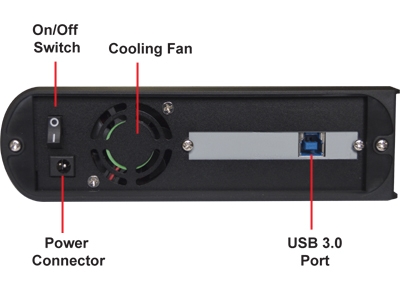

Rear View


Can convert to USB 3.0 interface using optional mini USB 3.0 - adapter (ADU3ESAM). Model SESU3CS comes bundled with this adapter

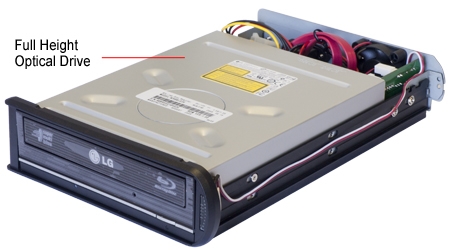

Illustration of full height Blu-ray burner mounted onto the inner tray




List of 5 1/4" devices that can be installed into the Sapphire enclosure:

  • most of the full height Blu-ray or DVD-RRW burners
  • Addonics Mobile Rack or most of the mobile racks for 3.5" SATA hard drive with length not exceeding 7.5 in.
  • Addonics 2.5" Disk Array
  • Most 3.5" devices using Addonics 3.5" - 5.25" mounting bracket

Features

  • Connect SATA optical drive or Mobile Rack to computer via USB 3.0 or port
  • Supported following SATA devices:
    • full height 5.25" SATA Blu-Ray, DVD-RRW drive
    • Addonics Snap-in Mobile Rack, Mobile Rack II or Mobile Rack III
    • Addonics Ruby Drive Cartridge System
    • Any 5.25" SATA mobile rack not exceeding 7.5 in. in length
  • Choice of model with or USB 3.0 connection
  • Maximum transfer rate:
    • 5 Gbps - USB 3.0 super speed
    • 480 Mbps - USB 2.0 high speed
    • 12 Mbps - USB 1.1
    • 6 Gbps -
  • Support IDE and ATAPI devices when install with the optional IDE-SATA converter (part # ADIDESA)
  • Simple installation
  • Sturdy light weight brushed anodized aluminum construction
  • Compact size for convenient transportation
  • Rear mount 40 x 40 mm cooling fan
  • Plug and play
  • Can be used as an external bootable device using connection
  • OS Compatibility:
    • USB 3.0 - Windows 7, 8, Vista, 2003, XP, MAC OS 10.5 and above
    • USB 2.0/1.1 - DOS, Windows 7, 8, Vista, 2003, XP, 2000, Me, Mac OS X, Linux Kernel 2.4 and above, Solaris 8 10/00 or later release.
    • - DOS, Windows NT4(SP6), Windows 7, 8, Vista, 2003, XP, 2000, Me, Mac OS X, Linux Kernel 2.4 and above

Specifications

Support drive type
  • full height 5.25" SATA Blu-Ray, DVD-RRW drive
  • ATATPI optical drive by adding optional Addonics IDE-SATA adapter (ADIDESA)
  • Addonics Snap-In Mobile Rack, Mobile Rack II or Mobile Rack III
Interface Type:

Choice of USB 3.0 / 2.0

Construction material:
Brushed anodized black aluminum body
LED
Power (blue)
Supported OS
  • USB 3.0 - Windows 7, 8, Vista, 2003, XP, MAC OS 10.5 and above
  • USB 2.0/1.1 - DOS, Windows 7, Vista, 2003, XP, 2000, Me, Mac OS X, Linux Kernel 2.4 and above, Solaris 8 10/00 or later release.
  • - DOS, Windows NT4(SP6), Windows 7, Vista, 2003, XP, 2000, Me, Mac OS X, Linux Kernel 2.4 and above
Power Supply:
100 / 240V AC/DC 12V 36 watts Power Adapter (model: AAP12V3A)
Cooling system:
Rear mount 40x40 mm cooling fan
Dimensions (L x W x H):
~ 9.88 x 6.88 x 2.00 in ( 251 x 175 x 50.8 mm)
Weight:
~ 1.8 lbs. (814 g)
Storage Temperature:
Range: -30 C to +60 C
Operating Temperature and humidity:
+5 C to +40 C, 5% to 95% RH
Storage Temperature
and Humidity:
30 C to +60 C, 5% to 90% RH
Warranty:
One Year
