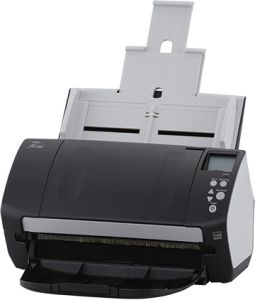

fi-7160 Workgroup Scanner

Advanced scanning, simplified

Key features

  • Fast simplex/duplex scanning speeds: 60 ppm / 120 ipm
  • 80-sheet ADF with intelligent paper-feed functions
  • iSOP intelligent Sonic Paper Protection - Acoustic sensors detect irregular paper noise
  • "Skew Reducer" - stable paper feeding mechanism
  • Simple operation with one-button scanning and LCD status display
  • PaperStream IP and PaperStream Capture included
  • Centralised management of multiple scanners
  • Optional imprinter

Fast and compact

The fi-7160 has been introduced to support increasingly diverse business related document capture routines at the desktop of individual knowledge workers or small workgroups. Simple, productivity-boosting operation virtually eliminates training requirements, both when using the scanner for regular document management routines as well as when using latest "ScanSnap Manager for fi Series scanners" software to accomplish individual ad hoc tasks.

The fi-7160 device introduces a comprehensive capture solution based on three uniquely interlined pillars:

  • Best-in-class Fujitsu fi-series scanning hardware
  • PaperStream IP scanner driver
  • PaperStream Capture batch scanning automation and enhancement software

Best-in-class for cost/performance top scanning speeds

With duplex scanning capability, the fi-7160 scans colour A4 documents at a speed of 60 ppm / 120 ipm (all speeds A4 Portrait 200 / 300 dpi), offering unrivalled cost-performance. Where even higher throughput and productivity are required, the fi-7180 model delivers impressive speeds of 80 ppm / 160 ipm. Whether you need fast or faster scanning, these models guarantee solid performance and quality results. Hardware highlights include:

ADF hopper

Large volume hopper

Featuring a high capacity hopper tray, these scanners allow for loading document batches containing up to 80 sheets at a time - and allowing for the continuous feeding of additional documents whilst scanning.

High-speed interface

USB 3.0 support ensures high-speed data transfer between scanner and computer.

LCD status display and control panel

A liquid crystal display (LCD) is included in the operator panel to display useful information including current settings for scanning documents, the number of sheets scanned, and error status. Users know the scanner status in the blink of an eye and can easily select and initiate predefined scanning profiles.

Dependable document feeding

iSOP intelligent Sonic Paper Protection

Building on and incorporating the market-proven paper protection mechanisms of previous fi-series scanners, the fi-7160 introduces an additional market innovation for safeguarding any paper documents. By listening to the audible sound of paper movements, intelligent Sonic Paper Protection automatically suspends paper feeding if an irregular noise is detected. This advanced Paper Protection feature reliably reduces the risk of damaging documents during scanning.

Stable paper feeding with skew reduction

The fi-7160 is equipped with a "Skew Reducer" to maintain the straight alignment of paper feeding. Particularly valuable for mixed document batches containing small format documents or thin paper sheets, this function reduces the physical skew of documents throughout the paper path. Even the most untidy batches are given special treatment sheet-by-sheet, which ensures total coverage for every scan: no lost data on the edges or in the corners, no more rescans.

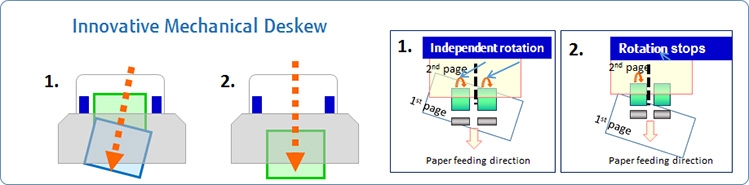

Innovative mechanical deskew

Less effort for effective, efficient pre-scan processing

The fi-7160 brings industry leading mixed batch scanning capabilities to the desktop with a design that allows for a record breaking mixed batch feeding range from 27 - 413 g/m, freeing the user from most paper weight related pre-sorting requirements.

The fi-7160 makes use of an ultrasonic sensor that accurately detects errors where two or more sheets are fed through the scanner at once. Multifeed detection works reliably when scanning mixed batches of documents with different paper weights and sizes. When multifeed is detected, the user is instantly alerted and can continue capturing all relevant sheets and pages without losing relevant information. Alternatively, using PaperStream Capture for batch scanning jobs will allow for ex post correction without any interruption during the scanning process.

With the scanner's Intelligent Multifeed function, document sheets that include attached repositionable notes or photos are recognised along with the location of the attachment. With appropriate software settings, the scanner automatically prevents user-defined zones from triggering alert conditions, allowing continuous, uninterrupted scanning.

Automatic detection enables the fi-7160 to create image output formats in colour or monochrome, based on the actual document content. There is no need to change settings manually.

Advanced scanner driver and image capture software

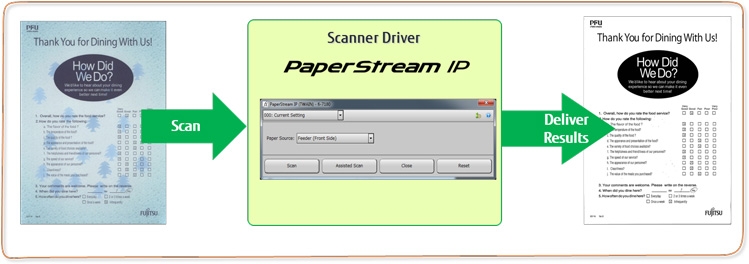

Paperstream IP graphic

PaperStream IP high quality image processing

Built on TWAIN / ISIS standards, PaperStream IP is the scanner driver for Fujitsu fi-series image scanners. With its advanced black and white and colour processing, a range of documents can be automatically and easily converted into image data suitable for complex post capture processing -producing for example highly accurate OCR results. High quality image data can be created without defining scanner settings in advance, as PaperStream IP will aim to optimise this automatically for every sheet.

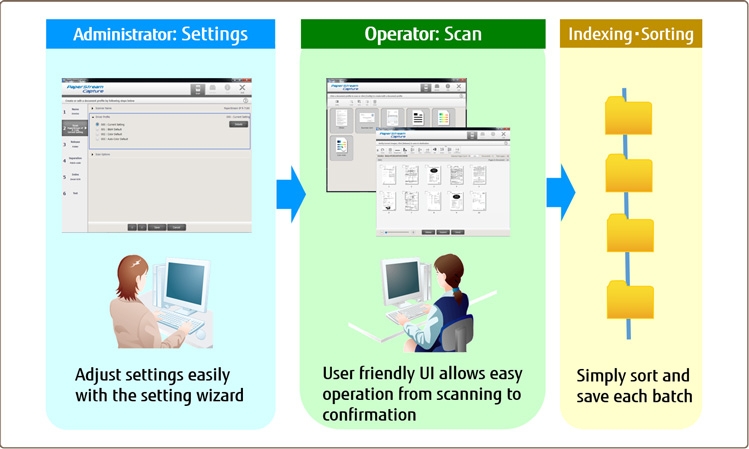

PaperStream Capture enhanced batch scanning

PaperStream Capture enhances the data capture process from adjusting scanning settings to performing batch scanning, verifying data and releasing to directories, repositories or subsequent process routines. Users can complete data capture tasks easily with the extremely user-friendly graphical user interface (GUI). Moving scanned batches into a queue for later retrieval is possible as well.

Seamless linkage with PaperStream IP provides for high quality image processing and simplified batch scanning operation at the same time.

PaperStream Capture

Imprinter option

If you need your documents to show evidence of having been scanned, the optional imprinter will "stamp" the reverse side of your documents additionally providing a cross-reference from your digital files.

Cut TCO with centralised administration

The fi-7160 comes equipped with a centralised administration feature that system administrators can use to manage the installation and operation of multiple image scanners and network scanners from one location.

IT administration staff can monitor running status, update scanner drivers, software and more with this powerful software. This dramatically reduces operating costs whilst reducing the effort that organisations need to spend setting up, operating and maintaining their inventory of scanners. With these Scanner Central Administration tools, it is easier than ever to expand scanner networks to multiple remote locations.

Specifications

Model fi-7160
Functional Specifications
Scanning Technology CCD sensors x 2
Scanning Mode Simplex / Duplex, Colour / Greyscale / Monochrome
Document Feeding Mode ADF Flatbed
  Yes No
ADF Capacity 80 pages
Document Size ADF minimum:
A8 portrait (52 x 74mm)
ADF maximum:
A4 Portrait (210 x 297mm), Legal (216 x 355.6mm)
Scanning Speeds
(200 or 300 dpi, Colour, Greyscale and Monochrome)
Output Simplex Duplex
A4 Portrait 60ppm 120ipm
ADF Background Colour White (default) / Black selectable
Bundled Software PaperStream IP (TWAIN/ ISIS) Driver, Software Operation Panel, Error Recovery Guide, PaperStream Capture, ScanSnap Manager for fi-Series, Scan to Microsoft SharePoint (web download only), Scanner Central Admin tools
Functions Dropout colour (R, G, B), Deskew cropping Multi-image, Auto colour, Blank page skip, i-DTC, Advanced-DTC, Simplified-DTC, Error diffusion, Dither, Moire removal, Image emphasis, Colour cleanup, Dropout colour (None, Specified, Colour saturation), sRGB, Punch hole removal, Tab cropping, Upper lower separation
Interfaces USB 3.0
Supported operating systems Windows 8, Windows 7, Vista, XP (32/64bit)
Windows Server 2012, Windows Server 2008 (32/64bit)
Physical Specifications
Dimensions (Width x Depth x Height ) 300mm x 170mm x 163mm
Weight 4.2kg
Humidity (operating) 20-80% RH (non-condensing)
Power Consumption 38W (1.8W in sleep mode)
Power Requirement 100-240VAC
Operating Temperature 5-35 C
Environmental compliance ENERGY STAR and RoHS
