Fixed Port L3 Managed Ethernet Switches

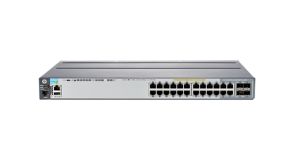

HP 2920-24G-POE+ Switch (J9727A)

Overview

The HP 2920 Switch Series consists of five switches: the HP 2920-24G and 2920-24G-PoE+ Switches with 24 10/100/1000 ports, and the HP 2920-48G and 2920-48G-PoE+ and 2920-48G 740W PoE+ Switches with 48 10/100/1000 ports. Each switch has four dual-personality ports for 10/100/1000 or SFP connectivity.

In addition, the 2920 switch series supports up to four optional 10 Gigabit Ethernet (SFP+ and/or 10GBASE-T) ports, as well as a two-port stacking module. These options provide you with flexible and easy-to-deploy uplinks and stacking.

Together with static and RIP routing, robust security and management, enterprise-class features, free lifetime warranty, and free software updates, the HP 2920 Switch Series is a cost-effective, scalable solution for customers who are building high-performance networks. These switches can be deployed at the enterprise edge, in remote branch offices, and in converged networks.

Features

Quality of Service (QoS)

  • Traffic prioritization (IEEE 802.1p): allows real-time traffic classification into eight priority levels mapped to eight queues
  • Layer 4 prioritization: enables prioritization based on TCP/UDP port numbers
  • Class of Service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
  • Rate limiting: sets per-port ingress enforced maximums and per-port, per-queue minimums
  • Large buffers: provide graceful congestion management
Connectivity

  • Flexible 10 Gbps Ethernet connectivity: up to four optional 10-Gigabit ports (SFP+ and/or 10GBASE-T)
  • Two-port stacking module with up to 40 Gbps/port: optional two-port stacking module allows stacking of up to four switch units into a single virtual device
  • Auto-MDIX: provides automatic adjustments for straight-through or crossover cables on all 10/100 and 10/100/1000 ports
  • IPv6: IPv6 host: allows the switches to be managed and deployed at the edge of IPv6 networks. Dual stack (IPv4/IPv6): provides transition mechanism from IPv4 to IPv6; supports connectivity for both protocols. MLD snooping: forwards IPv6 multicast traffic to the appropriate interface; prevents IPv6 multicast traffic from flooding the network.
  • IEEE 802.3at Power over Ethernet (PoE+): provides up to 30 W per port that allows support of the latest PoE+-capable devices such as IP phones, wireless access points, and security cameras, as well as any IEEE 802.3af-compliant end device; eliminates the cost of additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments
Performance

  • Energy-efficient design: High-efficiency power supplies: 80 PLUS Silver Certified power supply increases power savings. Energy-efficient Ethernet (EEE) support: reduces power consumption in accordance with IEEE 802.3az.
  • HP ProVision ASIC architecture: is designed with the latest HP ProVision ASIC, providing very low latency, increased packet buffering, and adaptive power consumption
  • Selectable queue configurations: allows for increased performance by selecting the number of queues and associated memory buffering that best meet the requirements of the network applications
Software-defined networking

  • OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths

Specifications

Ports

  • 20 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)<br>Duplex: 10BASE-T/100BASE-TX: half or full
  • 1000BASE-T: full only
  • 4 RJ-45 dual-personality 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)
  • 2 module slots
  • 1 stacking module slot
  • 1 dual-personality (RJ-45 or USB micro-B)
  • 1 USB 1.1
  • 1 RJ-45 out-of-band management port

Memory and processor
Tri Core ARM1176 @ 625 MHz, 512 MB SDRAM, packet buffer size: 11.25 MB (6.5 MB dynamic egress + 4.5 MB ingress), 1 GB flash

Latency

  • < 3.3 s (FIFO 64-byte packets)


Throughput
95.2 million pps

Switching capacity
128 Gbps

Management features

  • HP PCM+
  • IMC - Intelligent Management Center
  • command-line interface
  • Web browser
  • configuration menu
  • out-of-band management (RJ-45 Ethernet)
  • SNMP Manager
  • Telnet
  • RMON1
  • FTP
  • in-line and out-of-band
  • out-of-band management (serial RS-232C or Micro USB)

Power and operating requirement

Power consumption
475 W (maximum), 42 W (standby)

Operating temperature range
0 to 55C

Operating humidity range
15 to 95% (noncondensing)

Power supply name
1 x J9738A

Heat dissipation
358 BTU/hr (377.69 kJ/hr)

Dimensions and weight

Minimum dimensions (W x D x H)
44.25 x 33.6 x 4.4 cm

Weight
5.46 kg

What's included

Differentiator
24-port basic L3 10/100/1000 PoE+ switch with 2 slots for optional 10G modules, 1 slot for optional stacking module and a modular power supply

Warranty
Lifetime, advance replacement, next business day
