All stock codes associated to this product
J9152A, 1078902, 884420143321

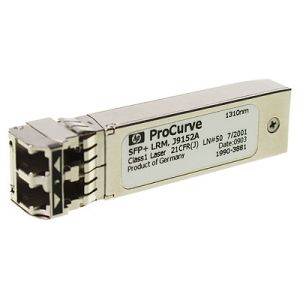

HP X132 10G SFP+ LC LRM Transceiver
Overview
A 10-Gigabit transceiver in SFP+ form-factor that supports the 10-Gigabit LRM standard, for 10-Gigabit connectivity up to 220 m on legacy multimode fiber.
Description
A 10-Gigabit transceiver in SFP+ form-factor that supports the 10-Gigabit LRM standard, for 10-Gigabit connectivity up to 220 m on legacy multimode fiber.
ProCurve Lifetime Warranty: for as long as you own the product, with next-business-day advance replacement (available in most countries). Electronic and telephone support: limited electronic and telephone support is available from HP; refer to the HP website at www.procurve.com/support for details on the support provided and the period during which support is available.
Specifications
| Cabling distance (maximum) |
62.5 m multimode cable @ 160/500 MHz*km = 0.5-220 m, 62.5 m multimode cable @ 200/500 MHz*km = 0.5-220 m, 50 m multimode cable @ 400/400 MHz*km = 0.5-100 m, 50 m multimode cable @ 500/500 MHz*km = 0.5-220 m, 50 m multimode cable @ 1500/500 MHz*km = 0.5-220 m |
| Manufacturer Warranty |
Lifetime, advance replacement, next business day |
| Ports |
1 LC 10-GbE port(IEEE 802.3aq Type 10Gbase-LRM), Duplex: full only |
| Product dimensions (W x D x H) |
2.19 x 0.54 x 0.47 in. |
| Technical Notes |
For OM3 cable (50 m multimode @ 1500/500 MHz*km), a mode-conditioning patch cord is not required. Other multimode cables may require mode-conditioning patch cords to achieve the maximum distances listed above.For fiber patch cords, use Ultra Physical Contact (UPC) surface termination/polish. Angled Physical Contact (APC) is not recommended. |
| Warranty |
Lifetime, advance replacement, next business day |
| Weight ( Imperial ) |
0.04 lb. |
| Weight ( Metric ) |
.02 kg |
|
Technical Information
| Application/Usage |
Data Networking |
|
Interfaces/Ports
| Interfaces/Ports |
1 x 10GBase-LRM |
| Interfaces/Ports Details |
1 x LC 10GBase-LRM Full-duplex |
|
Media & Performance
| Connectivity Media |
10GBase-LRM |
| Data Transfer Rate |
10 Gbps Gigabit Ethernet Full-duplex |
|
Physical Characteristics
| Dimensions |
0.5" Height x 0.5" Width x 2.2" Depth |
|
Miscellaneous
| Additional Information |
Distance: 220 m
Wavelength: 1310 nm
|
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
WEEE |
|
