All stock codes associated to this product
J9833A, 887758417768

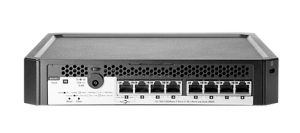

HP PS1810-8G Switch (J9833A)
HP PS1810 Switch Series devices are smart-managed, fixed-configuration Gigabit Layer 2 switches that are purpose built to work with HP ProLiant Gen8 Servers. They are designed for small businesses looking for key networking features in an easy-to-administer solution.
The series includes 8- and 24-port Gigabit switch models. 24 port model include SFP ports for fiber connectivity.
8 port model has an innovative design that allows it to be stacke on the HP Proliant MicroServer Gen8. Both models have fanless design making them ideal for office deployments.
The 8-port Gigabit Ethernet model can optionally be powered by an upstream Power over Ethernet (PoE) switch. Key feature is the auto-discovery and monitoring of HP Proliant Servers.
Customizable features include VLANs, Spanning Tree, and link aggregation trunking. The 8- and 24-port models include the latest energy-saving capabilitiesEnergy Efficient Ethernet (EEE) and idle-port power down All come with a lifetime warranty.
Features
Management
-
- HP Proliant Server Dashboard: enables autodiscovery of HP ProLiant Gen8 servers in the network; provides up-to-date server health status for up to ten monitored servers
-
- Simple web management: allows easy management of device by even nontechnical users with its intuitive Web GUI
-
- Secure web GUI: provides a secure, easy-to-use graphical interface for configuring the module via HTTPS
-
- SNMPv1, v2c: enables devices to be discovered and monitored from an SNMP management station
-
- Dual flash images: provides independent primary and secondary operating system files for backup while upgrading
-
Connectivity
-
- Auto-MDI/MDIX: adjusts automatically for straight-through or crossover cables on all ports
-
- Packet storm protection: protects against broadcast, multicast, or unicast storms with user-defined thresholds
-
- IEEE 802.3af PoE-powered device option: obtains power provided by a standard PoE device connected to Port 1; deploy the switch wherever an Ethernet cable can reach as a power outlet is not needed (8-port model only)
-
- SFP ports for fiber connectivity: provides fiber connections for uplinks and other connections across longer distances than what copper cabling can support; "true" SFP ports operate in addition to available copper Ethernet ports providing a higher total numer of available ports (24-port model only)
-
Layer 2 switching
-
- VLAN support and tagging: supports up to 64 port-based VLANs and dynamic configuration of IEEE 802.1Q VLAN tagging, providing security between workgroups
-
- Jumbo packet support: improves the performance of large data transfers; supports frame size of up to 9220-bytes
-
Resiliency and high availability
-
- IEEE 802.1D Spanning Tree Protocol (STP) and IEEE 802.1W Rapid Spanning Tree Protocol (RSTP; v2 models): provides redundant links while preventing network loops
-
- Link Aggregation (trunking or bonding): groups ports together automatically using Link Aggregation Control Protocol (LACP) or manually, to form an ultra-high-bandwidth connection to the server or network backbone; bonds together two NIC ports on the ProLiant MicroServer doubling the speed of services to the server
Specifications
Ports
- 8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)<br>Duplex: 10BASE-T/100BASE-TX: half or full
- 1000BASE-T: full only
-
Memory and processor
128 MB RAM, packet buffer size: 512 KB, 8 MB flash
Latency
-
- 100 Mb Latency: < 3.3 s (64-byte packets)
- 1000 Mb Latency: < 2.3 s (64-byte packets)
-
Throughput
up to 11.9 million pps
Switching capacity
16 Gbps
Management features
- IMC - Intelligent Management Center
- Web browser
- HTTPS
Power and operating requirements
Power consumption
7.2 W (maximum)
Input voltage
100-240 VAC
Operating temperature range
0 to 40C
Operating humidity range
15 to 95% @ 104F (40C)
Dimensions and weight
Minimum dimensions (W x D x H)
23 x 24.5 x 4.39 cm
Weight
1.23 kg
What's included
Differentiator
8-port Gigabit layer 2 smart-managed switch purpose built for HP Proliant Servers
What's in the box
HP PS1810-8G Switch,localized power cord, user documentation, rubber feet
Warranty
Lifetime, advance replacement, next business day
