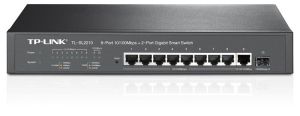

8-Port 10/100Mbps + 2-Port Gigabit Smart Switch
TL-SL2210
Highlights:
- 8 10/100Mbps RJ45 Ports, 1 10/100/1000Mbps RJ45 Port, 1 Gigabit SFP Slot
- Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment
- L2/L3/L4 QoS and IGMP Snooping optimize voice and video application
- WEB/CLI managed modes, SNMP, RMON bring abundant management features
Overview:
What this product does
TP-LINK smart switch TL-SL2210 is equipped with 8 10/100Mbps RJ45 ports, 1 10/100/1000Mbps RJ45 Port and 1 Gigabit SFP Slot. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features.
TP-LINK Smart Switch TL-SL2210 is a cost-effective product solution for the small and medium business. TL-SL2210 has useful security features. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with CLI, SNMP and RMON, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive layer 2 switch and gigabit capability, TP-LINK Smart Switch TL-SL2210 provides you the ideal access-edge solution.
Advanced QoS features
To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.
Abundant Layer 2 features
For more application of layer 2 switches, TL-SL2210 supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP Snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.
Enterprise Level Management Features
TL-SL2210 is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI). SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.
Features:
Layer 2 Features
- Link Aggregation Control Protocol (LACP)
- Up to 512 VLANs simultaneously(out of 4K VLAN IDs)
- STP/RSTP/MSTP
- IGMP Snooping
Quality of Service
- 4 priority queues
- Support IEEE 802.1P
- DSCP QoS
- Rate limit feature
Security Strategies
- Access Control List (L2~L4 ACL)
- Port Security
- Storm Control
- SSL and SSH encryptions
Management
- Web-based GUI
- Command Line Interface(Telnet)
- SNMP v1/v2c/v3
- RMON (1,2,3,9 group)
Specifications:
|
HARDWARE FEATURES
|
| Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab,
IEEE802.3z, IEEE 802.3x, IEEE 802.1d,
IEEE 802.1s, IEEE 802.1w, IEEE 802.1q,
IEEE 802.1p
|
| Interface |
8 10/100Mbps RJ45 Ports
(Auto-Negotiation /Auto MDI/MDIX)
1 10/100/1000Mbps RJ45 Port
1 Gigabit SFP Slot
|
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
100BASE-FX:MMF, SMF
1000BASE-X: MMF, SMF
|
| Dimensions (W X D X H) |
11.6 * 7.1 * 1.7 in. (294 * 180 * 44 mm)
|
| Fan Quantity |
Fanless
|
| Power Supply |
100~240VAC, 50/60Hz
|
|
PERFORMANCE
|
| Bandwidth/Backplane |
5.6Gbps
|
| MAC Address Table |
8k
|
| Packet Buffer Memory |
4.1Mb
|
| Packet Forwarding Rate |
4.2Mpps
|
| Jumbo Frame |
10KB |
|
SOFTWARE FEATURES
|
| Quality of Service |
Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow-based Rate Limiting
Voice VLAN
|
| L2 Features |
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 6 aggregation groups,
containing 4 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control
|
| VLAN |
Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
|
| Access Control List |
L2L4 package filtering based on source and destination
MAC address, IP address, TCP/UDP ports, 802.1p,
DSCP, protocol and VLAN ID
Time Range Based
|
| Security |
SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown unicast Storm Control
|
| Management |
Web-based GUI and CLI management
SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
|
|
OTHERS
|
| Certification |
CE, FCC, RoHS
|
| Package Contents |
TL-SL2210
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
|
| System Requirements |
Microsoft Windows 8/7/Vista/XP, Mac OS or Linux-based operating system
|
| Environment |
Operating Temperature: 0~40 (32~104);
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
