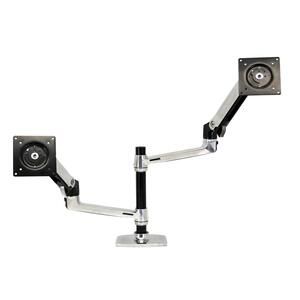

LX Dual Stacking Arm
Part Number: 45-248-026

Durable polished aluminum construction! Use this ingenious tool with your notebook and an external LCD or with two LCDs.
Create a productive multi-display configuration that lifts screens up to where they’re easier to see while reclaiming valuable worksurface.

Benefits

  • Versatile: Use with a notebook and LCD or with two LCDs
  • Extends LCDs or laptop up to 25" (64 cm) with an adjustment range of 18" (46 cm); push your displays out of the way when not in use
  • Frees up the desktop to increase workspace
  • Easy to use: Simple installation and effortless operation
  • Experience productivity gains. Check out our Multi-Display Payback Calculator—determine the cost benefit associated with adding a second display
  • Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free height adjustment
Specifications


  • Part Number: 45-248-026
  • Description: LX Dual Stacking Arm (polished aluminum)
  • Includes two (2) LCD arms and extensions, pole, desk clamp and grommet mount, one (1) notebook tray, notebook fastening kit (you choose: Velcro, non-slip pad or clips)
  • Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
  • Improved LX Arm Features & Benefits
  • Polished aluminum construction offers greater durability and enhanced aesthetics
  • Snap-fit cap secures interface of arms to extensions for greater stability
  • New clamp and grommet mount base ensures greater stability of display and arm
  •  To facilitate stacking of monitors, maximum outside height of display can be no more than 14" (35 cm). Most monitors with screens of 24" or less fit within this specification. Larger screen sizes are allowable when positioning displays side by side
  • Weight Capacity: Maximum individual LCD weight = 7 to 20 lbs (3.1 to 9.1 kg); notebook weight range = 2.5–12 lbs (1.1–5.4 kg); maximum combined weight = 40 lbs (18.1 kg). Monitor depth may affect weight capacity. Read more
  • Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
  • Desk clamp attaches to edge up to 2.6" (66 mm) thick; grommet mount attaches through hole 5/16" to 2" (7–51 mm) wide and up to 3" (80 mm) thick
  • Shipping Dimensions: 19.25" x 15.25" x 9" (487 x 387 x 229 mm)
  • Shipping Weight: 15.75 lbs (7.18 kg)
  • Warranty: Five (5) years
