Ergotron 45-247-026 LX II Wall Mount System Combo - For Monitors up to 27"

IMG 1 of 1
Our Price:
$1,397.25
or quickly purchase this product
Backorder
Part Number:
232669
(?) Brand:
Ergotron
Manuf No:
45-247-026
45247026
Shipping Weight:
18 KG (Includes product packaging)
Estimate Shipping
Date Added:
20/12/2013
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
45247026, 45-247-026, 1208472, 698833012057

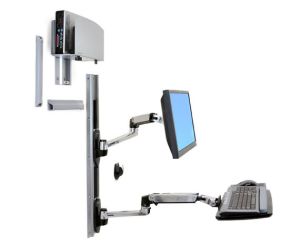

LX Wall Mount System
Part Number: 45-247-026

With Medium Silver CPU Holder. Durable polished aluminum construction! This is a complete solution that accommodates an LCD, keyboard and CPU while providing vertical and side-to-side motion. It is perfect for space-constrained areas: simply fold the keyboard and LCD tight against the wall when not in use.

Benefits

  • Articulating arms feature full tilt/pan capability and 13" (33 cm) height adjustment, providing premium ergonomic adjustment
  • Extends LCD up to 25" (64 cm); keyboard tray extends up to 35" (89 cm); push your display and keyboard out of the way when not in use
  • Ideal for space-constrained roomskeyboard folds to within 3.5" (9 cm) of wall in storage position. LCD arm folds back to a depth of 5.3" (13 cm)
  • Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entryavoid repetitive-stress injuries while increasing comfort and productivity
  • Creates a complete and compact workstation
  • Effortlessly and independently position the LCD and keyboard to the most comfortable viewing and typing position, all while maintaining eye contact with your patient
  • Convenient bi-focal viewing: Screen lowers and positions for optimized viewing by users with bi-focal glasses
  • Passes Ergotrons 10,000-cycle motion test, which ensures a minimum of five years trouble-free height adjustment

Part Number: 45-247-026
Description: LX Wall Mount System (polished aluminum)

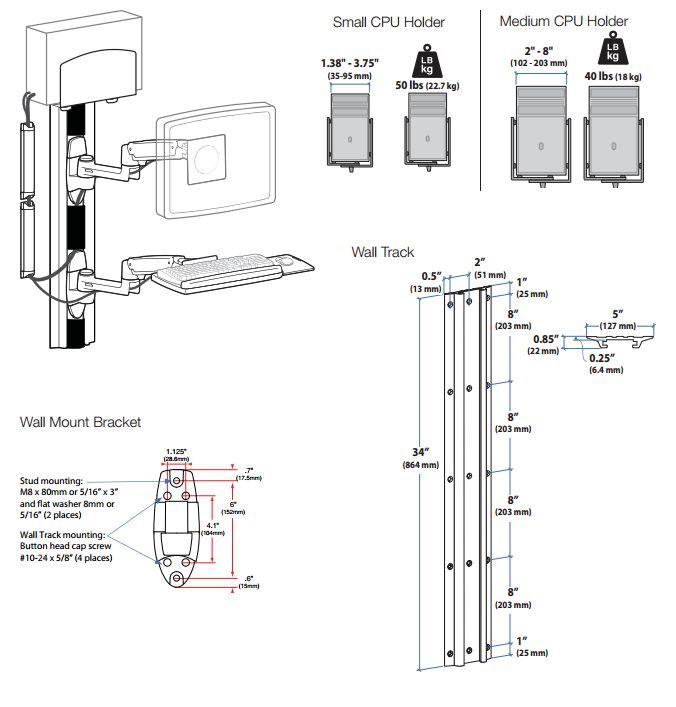

Includes Includes: 10" and 34" Wall Tracks with (2) black track covers, LX Wall Mount LCD Arm, LX Keyboard Arm, wrist rest, mouse holder, Medium CPU Holder, CPU spacer, CPU and Arm track mount bracket kits, two (2) 10" Cable Channels, mounting kits for hollow-wall and wall-stud installation
Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Improved LX Arm Features &Benefits
Polished aluminum construction offers greater durability and enhanced aesthetics
Snap-fit cap secures interface of arms to extensions for greater stability
* Weight Capacity: display = 720 lbs (3.29.1 kg); keyboard = 5 lbs (2.2 kg); CPU = 40 lbs (18 kg)
Monitor depth may affect weight capacity. Read more
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm &75 x 75 mm)
CPU Size Range: 3-3/8" to 8" (9 to 20 cm) wide; CPUs down to 2" (5 cm) wide can be accommodated by installing the included CPU spacer within the holder
CPU Holder includes theft deterrent anchor holes for cable locks and fasteners for locking the holders width
NOTE: An alternate system configuration is available with a smaller, black-color CPU holder
Base includes theft deterrent anchor holes for cable locks
Product Weight: 30.7 lbs (14 kg)
Shipping Dimensions: 37" x 22 " x 7.5" (94 x 56 x 19 cm)
Shipping Weight: 40 lbs (18 kg)
Warranty: Five (5) years


Basic
Product Type:Wall Mount
Device Supported:Flat Panel Display
Colour:Aluminium
Maximum Load Capacity:9.07 kg
Brand Name:Ergotron
Maximum Screen Size Supported:61 cm (24")
VESA Mount Standard:75 x 75
100 x 100
General Information
Product Type:Wall Mount
Manufacturer Part Number:45-247-026
Manufacturer Website Address:https://www.ergotron.com/Home/tabid/36/language/en-AU/Default.aspx
Manufacturer:Ergotron, Inc
Product Model:45-247-026
Product Name:LX 45-247-026 Wall Mount System
Product Series:LX
Brand Name:Ergotron
Miscellaneous
Additional Information:

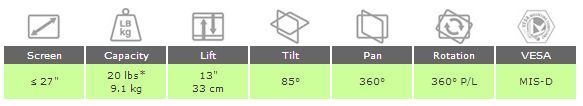

  • Pan: 360°
  • Lift: 13"
  • Rotation: 360° P/L
  • Extends LCD up to 25"
  • Keyboard tray extends up to 35"
Package Contents:
  • 10" and 34" Wall Tracks with Two Black Track Covers
  • Mounting Hardware
  • LX Wall Mount LCD Arm
  • LX Keyboard Arm
  • Wrist Rest
  • Mouse Pad
  • Mouse Holder
  • CPU Holder
  • 2 x 10" Cable Channels
Compatibility:
  • 24" LCD
  • Keyboard
  • CPU
Certifications &Standards:

VESA:

  • FDMI MIS-D
  • 100/75mm
  • C (hole pattern: 100 x 100 mm &75 x 75 mm)
Physical Characteristics
Colour:Aluminium
VESA Mount Compatible:Yes
VESA Mount Standard:100 x 100
75 x 75
Product Information
Device Supported:Flat Panel Display
Maximum Load Capacity:9.07 kg
Maximum Screen Size Supported:61 cm (24")
Warranty
Limited Warranty:5 Year
